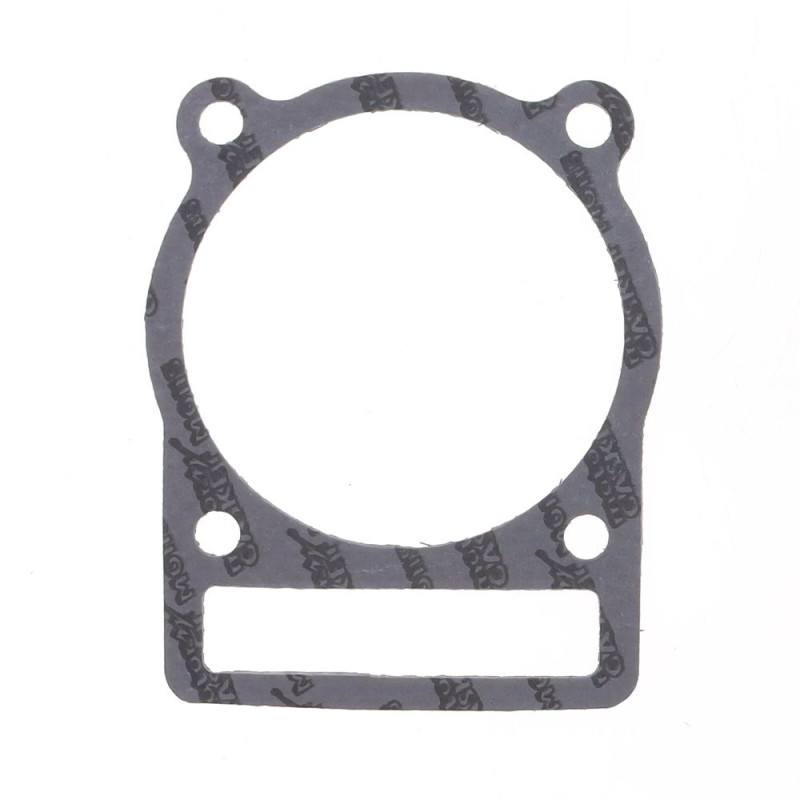

    ATHENA Cylinder Base Gasket for HUSQVARNA TC 510, TE 510, TXC 510, WMX 510, WXE 510 1989-1991
    ATHENA Cylinder Base Gasket for HUSQVARNA TC 510, TE 510, TXC 510, WMX 510, WXE 510 1989-1991

    ATHENA Cylinder Base Gasket for HUSQVARNA TC 510, TE 510, TXC 510, WMX 510, WXE 510 1989-1991

    Review (0)
    €8.50
    Tax Included
    Disponible en nuestro proveedor, enviado en 10 a 15 días.

    ATHENA cylinder base gasket for HUSQVARNA TC 510, TE 510, TXC 510, WMX 510, WXE 510 from 1989 to 1991. Several thicknesses available for the same bike.

    Quantity :
    In stock

    Disponible en nuestro proveedor, enviado en 10 a 15 días.

    Wishlist
    Write your review

      The ATHENA S410220006004 cylinder base gasket is designed for HUSQVARNA TC 510, TE 510, TXC 510, WMX 510, WXE 510 from 1989 to 1991. The base gasket seals between the cylinder and the crankcase. Its thickness matters: it sets the height of the cylinder, and therefore the squish, the compression and, on a two-stroke, the port timing.

      Key features

      • Several thicknesses available for the same bike.
      • The right tool for setting squish, compression and timing, according to Athena.

      Specifications

      • Brand: ATHENA
      • Manufacturer part number: S410220006004
      • EAN code: 8051757218806
      • Thickness: OE
      • Weight: 50 g

      When to replace it?

      • Oil or coolant seeping at the base of the cylinder.
      • Gasket crushed or torn on removal.

      Every time the cylinder is removed: a crushed base gasket can't be reused.

      Fitting tips

      1. Clean the crankcase face and the base of the cylinder without scratching them.
      2. Fit the gasket dry, centred on the studs.
      3. Tighten the cylinder in a criss-cross pattern to the manufacturer's torque.
      4. If you have changed the thickness, measure the squish before refitting the cylinder head with a new head gasket.

      Why ATHENA?

      Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

      Spare parts and items to plan

      Frequently asked questions

      Which thickness should I choose?
      The same as your original gasket, unless you are deliberately adjusting the squish.

      Should the other gaskets be replaced?
      Yes, as soon as the cylinder is removed: a top end gasket kit includes all the gaskets that need replacing.

      Compatibility

      Check the exact model and year of your bike in the list below before ordering.

      Fits:
      HUSQVARNA TC 510 1991
      HUSQVARNA TC 510 1990
      HUSQVARNA TC 510 1989
      HUSQVARNA TE 510 1991
      HUSQVARNA TE 510 1990
      HUSQVARNA TE 510 1989
      HUSQVARNA TXC 510 1991
      HUSQVARNA TXC 510 1990
      HUSQVARNA TXC 510 1989
      HUSQVARNA WMX 510 1991
      HUSQVARNA WMX 510 1990
      HUSQVARNA WMX 510 1989
      HUSQVARNA WXE 510 1991
      HUSQVARNA WXE 510 1990
      HUSQVARNA WXE 510 1989
