    ATHENA Cylinder Head Gasket for HUSQVARNA TC 510, TE 400, TE 410, TE 510, TE 570, TXC 510, WMX 510, WXE 510 1989-2004
    ATHENA Cylinder Head Gasket for HUSQVARNA TC 510, TE 400, TE 410, TE 510, TE 570, TXC 510, WMX 510, WXE 510 1989-2004

    ATHENA Cylinder Head Gasket for HUSQVARNA TC 510, TE 400, TE 410, TE 510, TE 570, TXC 510, WMX 510, WXE 510 1989-2004

    Review (0)
    €37.90
    Tax Included
    Bajo pedido, plazo confirmado en 24 horas.

    ATHENA head gasket for HUSQVARNA TC 510, TE 400, TE 410, TE 510, TE 570, TXC 510, WMX 510, WXE 510 from 1989 to 2004.

    Quantity :
    On order

    Bajo pedido, plazo confirmado en 24 horas.

    Wishlist
    Write your review

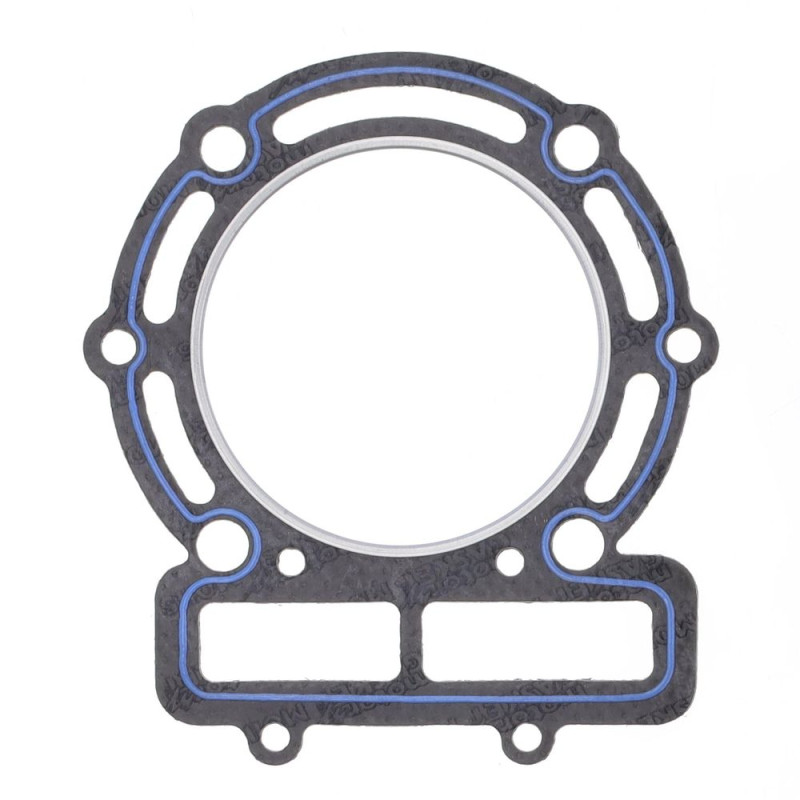

      The ATHENA S410220001002/1 head gasket is designed for HUSQVARNA TC 510, TE 400, TE 410, TE 510, TE 570, TXC 510, WMX 510, WXE 510 from 1989 to 2004. Between the cylinder head and the cylinder, the head gasket contains the pressure of every explosion. Once tightened, it takes the shape of the parts: on reassembly you need a new gasket to keep full compression.

      Specifications

      • Brand: ATHENA
      • Manufacturer part number: S410220001002/1
      • EAN code: 8051757062799
      • Thickness: OE
      • Weight: 80 g

      When to replace it?

      • Loss of compression, less lively engine.
      • Black marks or hissing at the head/cylinder joint.
      • Coolant level dropping, bubbles in the radiator.

      Every time the cylinder head is removed, and therefore at every piston change.

      Fitting tips

      1. Clean the cylinder head and cylinder faces without scratching them.
      2. Fit the gasket dry, the right way round, centred on the studs and the coolant holes.
      3. No sealant on the gasket.
      4. Tighten the cylinder head in a criss-cross pattern, in several stages, to the manufacturer's torque.
      5. Refill the coolant and take the opportunity to replace the spark plug.

      Why ATHENA?

      Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

      Spare parts and items to plan

      Frequently asked questions

      Is the gasket enough to refit the cylinder head?
      It replaces the head gasket only. If you also remove the cylinder, go for a complete top end gasket kit instead.

      Compatibility

      Check the exact model and year of your bike in the list below before ordering.

      Fits:
      HUSQVARNA TC 510 1991
      HUSQVARNA TC 510 1990
      HUSQVARNA TC 510 1989
      HUSQVARNA TE 400 2004
      HUSQVARNA TE 400 2003
      HUSQVARNA TE 400 2002
      HUSQVARNA TE 400 2001
      HUSQVARNA TE 410 2001
      HUSQVARNA TE 410 2000
      HUSQVARNA TE 410 1999
      HUSQVARNA TE 410 1998
      HUSQVARNA TE 410 1997
      HUSQVARNA TE 410 1996
      HUSQVARNA TE 510 1991
      HUSQVARNA TE 510 1990
      HUSQVARNA TE 510 1989
      HUSQVARNA TE 570 2004
      HUSQVARNA TE 570 2003
      HUSQVARNA TE 570 2002
      HUSQVARNA TE 570 2001
      HUSQVARNA TXC 510 1991
      HUSQVARNA TXC 510 1990
      HUSQVARNA TXC 510 1989
      HUSQVARNA WMX 510 1991
      HUSQVARNA WMX 510 1990
      HUSQVARNA WMX 510 1989
      HUSQVARNA WXE 510 1991
      HUSQVARNA WXE 510 1990
      HUSQVARNA WXE 510 1989
