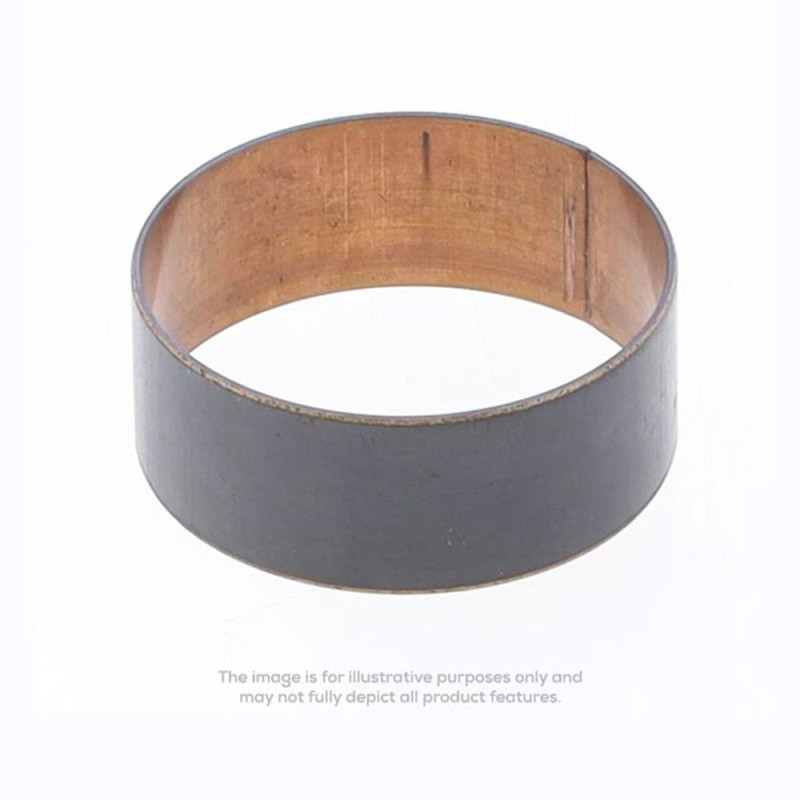

ATHENA MARZOCCHI 50 mm Inner Fork Bushing for TM RACING, HUSQVARNA and BETA 2005-2017

Name: ATHENA MARZOCCHI 50 mm Inner Fork Bushing for TM RACING, HUSQVARNA and BETA 2005-2017
Brand: ATHENA
SKU: S41TE50M
Price: 10.9 EUR
Availability: InStock

Review (0)

€10.90

Tax Included

Available from our supplier, shipped within 10 to 15 days.

ATHENA MARZOCCHI 50 mm inner fork bushing for HUSQVARNA CR, TC, TE, WR 125, 250, 300, 450, 510, TM RACING EN, MX 125, 144, 250, 300 and BETA RR 250, 350, 450, 525 from 2005 to 2017.

The ATHENA MARZOCCHI 50 mm S41TE50M inner fork bushing is designed for HUSQVARNA CR 125, TC 250, TC 450, TE 250, TE 450, TE 510, WR 125, WR 250, WR 300, TM RACING EN 125, EN 144, EN 250, EN 300, MX 125, MX 144, MX 250, MX 300 and BETA RR 250, RR 350, RR 450, RR 525 from 2005 to 2017. The inner fork bushing (slide bushing) is fitted at the bottom of the inner tube: together with the outer fork bushing, it guides the sliding of the fork. Its PTFE (Teflon) coating reduces friction; once worn, the bronze shows through, the fork binds and the oil seals wear out faster.

Specifications

Brand: ATHENA
Manufacturer part number: S41TE50M
EAN code: 8050506053972
Slide bushing fitted at the bottom of the inner tube (PTFE-coated outside)
Weight: 30 g

When to replace it?

Grey coating worn through: the copper or bronze shows on the bushing.
Play in the fork when you rock the bike back and forth with the front brake on.
Fork that binds at the start of its stroke, oil seals that leak again and again.

Check the bushings every time you replace the oil seals or change the fork oil. Replace them as soon as the bronze shows over more than a quarter of their surface.

Fitting tips

Disassemble the fork leg following the manual and separate the outer tube from the inner tube.
Spread the bushing slightly by hand at its split to lift it out of its groove, without scratching the tube.
Fit the new bushing in the groove, then install new oil seals.
Reset the fork oil level as per the manual.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

Fork oil seals : ATHENA · SKF
Fork oil : LIQUI MOLY 10W 500 ml
Fork dust seals : ATHENA P40FORK455131 · ATHENA P40FORK455179

Frequently asked questions

Do I have to change both bushings?
Check the outer and inner bushings on both legs: they wear together. Replace all those that show bronze.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Reference S41TE50M

In stock15 Items

Specific References

Click on your bike to see all compatible parts.
