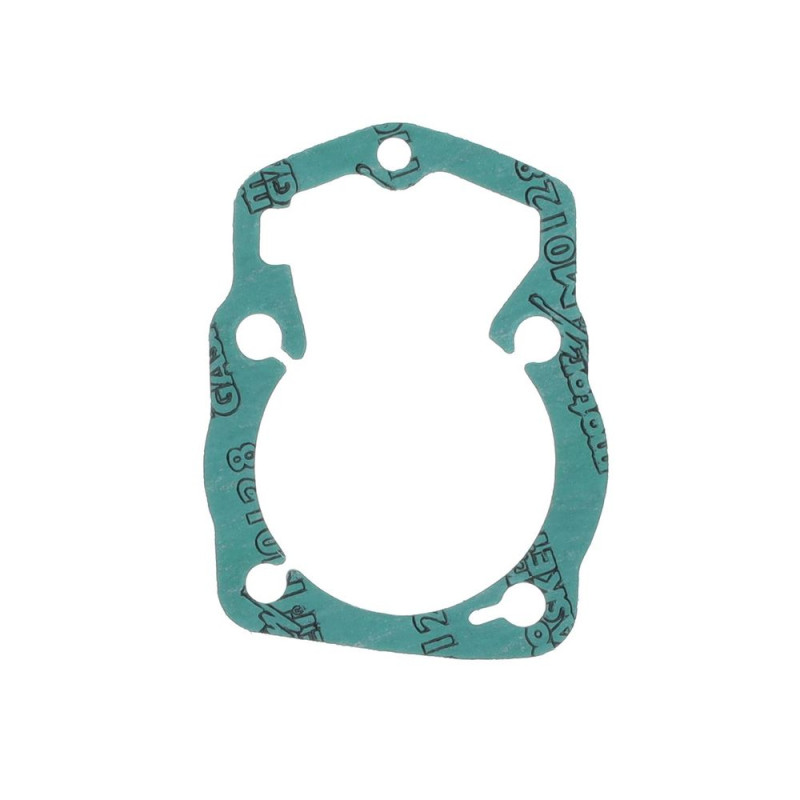

ATHENA Cylinder Base Gasket for HONDA NX 125, XL 125, XL 200, XR 200 1976-1996

ATHENA offers this cylinder base gasket for HONDA NX 125, XL 125, XL 200, XR 200 1976-1996. The base gasket sits under the cylinder, on the crankcase. Crushed when tightened, it cannot be reused: replace it every time the cylinder comes off.

Why does the thickness matter?

The benefits:

• The OE thickness keeps the cylinder height intended by the manufacturer.
• Another thickness lets you correct piston-to-head clearance after machining or adjust the port timing of a 2-stroke.
• A new gasket keeps the bottom end sealed against oil and gases.

Why choose ATHENA?

Athena, founded in 1973 by Giovanni Mancassola near Vicenza and based in Alonte (Italy), designs gaskets, pistons and cylinder kits; it supplies original equipment to manufacturers such as KTM, Ducati, Fantic and Triumph.

When should you replace the base gasket on your HONDA XR 200?

Every time the cylinder comes off: piston change, top-end rebuild or cylinder inspection. Oil or mixture seeping at the base of the cylinder also points to a tired gasket.

No manufacturer figure in hours for this model. Cross-Mania guideline: compression check every 50 h of hard use and every 100 h of leisure riding.

Specifications and fitting tips

• Thickness : OE
• Manufacturer part number: S410210006043

Cross-Mania tip: Choose the OE thickness if the cylinder and head have not been machined; if in doubt, measure the squish with solder wire before final assembly.

Spare parts and items to plan

• Top-end gasket kit : ATHENA S410210001002 · ATHENA S410210001017
• Piston : WISECO · PROX
• Piston rings : WISECO
• Coolant : LIQUI MOLY 1 L · TWIN AIR

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA NX 125 1988
HONDA XL 125 1983
HONDA XL 125 1982
HONDA XL 125 1981
HONDA XL 125 1980
HONDA XL 125 1979
HONDA XL 125 1978
HONDA XL 125 1977
HONDA XL 125 1976
HONDA XL 200 1984
HONDA XL 200 1983
HONDA XR 200 1996
HONDA XR 200 1995
HONDA XR 200 1994
HONDA XR 200 1991
HONDA XR 200 1990
HONDA XR 200 1989
HONDA XR 200 1988
HONDA XR 200 1987
HONDA XR 200 1986
HONDA XR 200 1985
HONDA XR 200 1984
HONDA XR 200 1983
HONDA XR 200 1982
HONDA XR 200 1981
HONDA XR 200 1980
