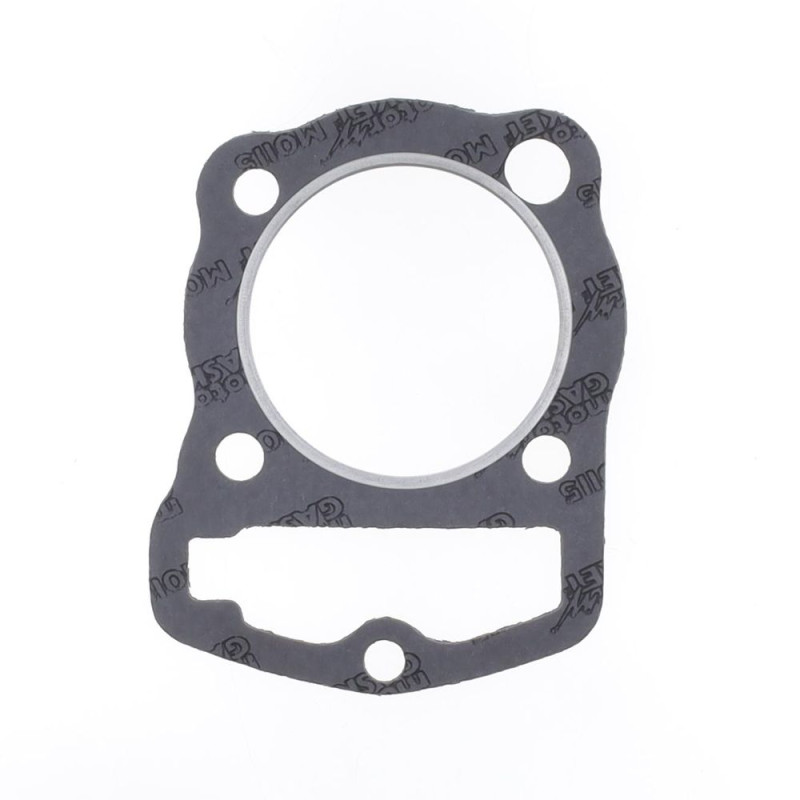

ATHENA Cylinder Head Gasket for HONDA XL 200, XR 200 1980-1991
€8.50
Tax Included
ATHENA head gasket for HONDA XL 200, XR 200 from 1980 to 1991.
On HONDA XL 200, XR 200 from 1980 to 1991, the ATHENA S410210001017 head gasket fits in place of the original part. Between the cylinder head and the cylinder, the head gasket contains the pressure of every explosion. Once tightened, it takes the shape of the parts: on reassembly you need a new gasket to keep full compression.
Specifications
- Brand: ATHENA
- Manufacturer part number: S410210001017
- EAN code: 8051757074181
- Thickness: OE
- Weight: 40 g
- Engine: 4-stroke
When to replace it?
- Loss of compression, less lively engine.
- Black marks or hissing at the head/cylinder joint.
- Coolant level dropping, bubbles in the radiator.
Every time the cylinder head is removed, and therefore at every piston change.
Fitting tips
- Clean the cylinder head and cylinder faces without scratching them.
- Fit the gasket dry, the right way round, centred on the studs and the coolant holes.
- No sealant on the gasket.
- Tighten the cylinder head in a criss-cross pattern, in several stages, to the manufacturer's torque.
- Refill the coolant and take the opportunity to replace the spark plug.
Why ATHENA?
Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.
Spare parts and items to plan
- Top-end gasket kit : ATHENA · CENTAURO
- Piston : WISECO · PROX
- Coolant : LIQUI MOLY 1 L · TWIN AIR
- Spark plug : NGK 6681 · NGK 2923
Frequently asked questions
Is the gasket enough to refit the cylinder head?
It replaces the head gasket only. If you also remove the cylinder, go for a complete top end gasket kit instead.
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
HONDA XL 200 1984
HONDA XL 200 1983
HONDA XR 200 1991
HONDA XR 200 1990
HONDA XR 200 1989
HONDA XR 200 1988
HONDA XR 200 1987
HONDA XR 200 1986
HONDA XR 200 1985
HONDA XR 200 1984
HONDA XR 200 1983
HONDA XR 200 1982
HONDA XR 200 1981
HONDA XR 200 1980
