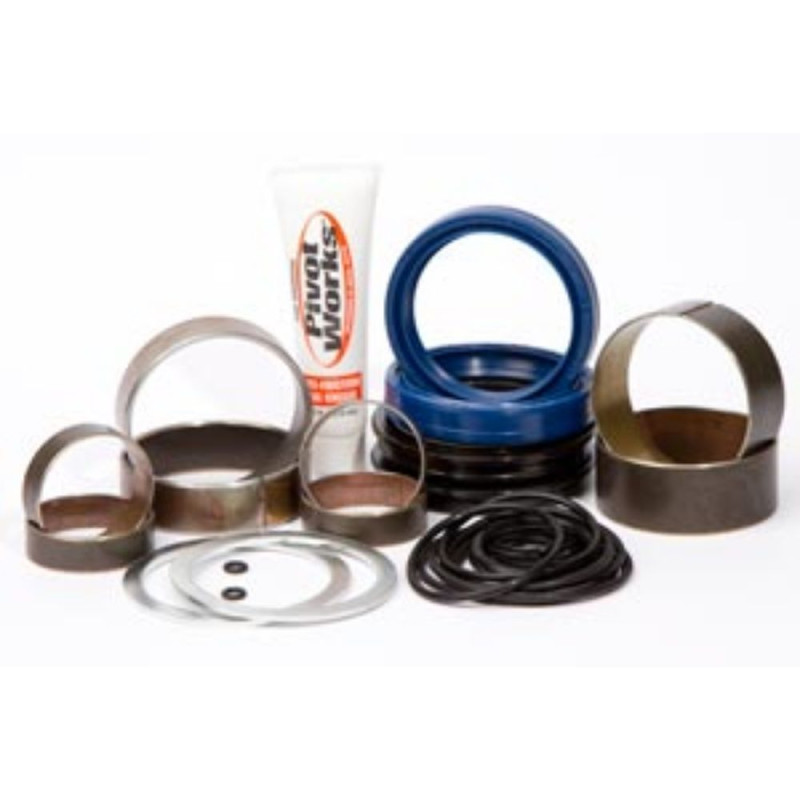

PIVOT WORKS Fork Rebuild Kit (Seals and Bushings) for SUZUKI RM 125, RM 250 2004-2008

The PIVOT WORKS PWFFKS10021 fork rebuild kit is designed for SUZUKI RM 125, RM 250 from 2004 to 2008. A fork that leaks or feels sticky needs rebuilding. The oil seals keep the oil in, the dust wipers keep the mud out, and the bushings let the tube slide in the outer leg with minimal friction. This kit contains the oil seals, dust wipers, upper and lower bushings and O-rings for the model: everything needed to rebuild the fork in one go.

Specifications

• Brand: PIVOT WORKS
• Manufacturer part number: PWFFKS10021

When to replace it?

• Oil on the fork tube or on the front brake disc.
• Play when pulling and pushing the front wheel with the fork extended.
• Fork that sticks or creaks, scored bushings or copper showing on teardown.

At the first leak or the first sign of play. As a Cross-Mania guideline: fork oil change every 20 to 30 hours of racing, full rebuild (seals and bushings) every 40 to 60 hours, once a season for recreational riding.

Fitting tips

1. Drain the fork and remove the cartridge following the bike's manual.
2. Remove the dust wiper and clip, then separate the tube from the outer leg with short sharp pulls: the outer bushing and the old seal come out with the tube.
3. Cover the tube end with plastic film, slide on the new dust wiper, oil seal and outer bushing without cutting the lips, then fit the new inner bushing last.
4. Fit the outer bushing and the oil seal squarely with a driver that matches the tube diameter.
5. Refill with fresh fork oil at the manufacturer's level and viscosity.

Why PIVOT WORKS?

Pivot Works specialises in chassis rebuild kits for off-road bikes and quads: bearings, seals, bushings and spacers grouped by model. The brand claims original-equipment quality, durability and fit, and since 2012 has offered a lifetime replacement of its kits in case of failure (once per kit).

Spare parts and items to plan

• Fork oil : LIQUI MOLY 10W 500 ml

Frequently asked questions

What is in the kit?
The oil seals, dust wipers, upper and lower bushings and O-rings for the model. Compare with the photo and your original parts if in doubt.

Should the bushings be replaced if only the seals leak?
It is recommended: a worn bushing lets the tube move and quickly damages new seals. The kit lets you replace everything in a single teardown.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SUZUKI RM 125 2008
SUZUKI RM 125 2007
SUZUKI RM 125 2006
SUZUKI RM 125 2005
SUZUKI RM 125 2004
SUZUKI RM 250 2008
SUZUKI RM 250 2007
SUZUKI RM 250 2006
SUZUKI RM 250 2005
SUZUKI RM 250 2004
