WÖSSNER Piston Kit for SUZUKI RMZ 250 2010-2027

The WÖSSNER 8795DC piston kit (Ø 76.98 mm) is designed for SUZUKI RMZ 250 from 2010 to 2027. The piston takes the pressure of every combustion and passes it on to the connecting rod, thousands of times a minute. Over the hours it wears, its rings stop sealing properly and the engine loses compression: it starts less easily, pulls less hard and runs hotter.

Key features

• Forged piston in T6 heat-treated 4032 alloy, designed using computer simulation (FEA).
• Permanent skirt coating that reduces friction.
• Very tight running clearance, for a quieter engine (according to Wössner).

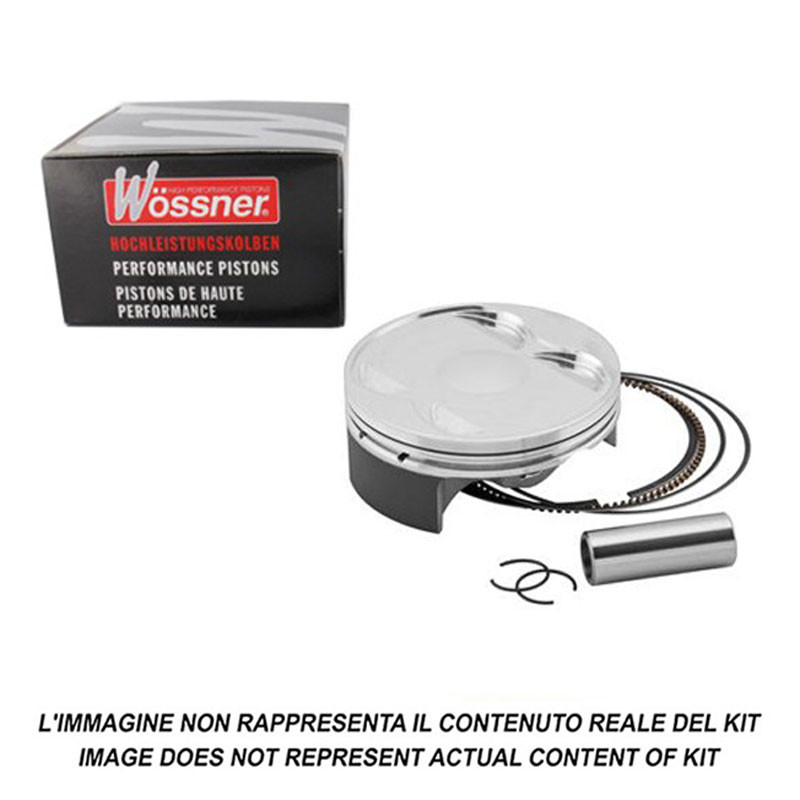

• Complete kit: piston, rings, pin and circlips. Small-end needle bearing not included.

Specifications

• Brand: WÖSSNER
• Manufacturer part number: 8795DC
• Size: C (check that it matches your cylinder)
• Piston diameter: 76.98 mm
• Engine: 4-stroke

When to replace it?

• Loss of power, sluggish pick-up, harder starting: compression is dropping.
• Piston slap on a cold engine, getting more and more noticeable.
• On teardown: vertical scoring on the skirt, stuck or worn rings, thick carbon on the crown.
• On a four-stroke: oil consumption, blue smoke and a fouled spark plug.

Replace the piston as set out in your bike's service manual, sooner if you race, and straight away as soon as these symptoms appear. As a Cross-Mania guideline, plan for a new piston every 30 to 60 hours of engine running depending on whether you race or ride for fun. Always measure the cylinder at the same time: a new piston in an oval cylinder won't last.

Fitting tips

1. Clean the cylinder and check it: diameter, ovality, taper and condition of the bore coating.
2. Check the end gap of each ring in the cylinder against the figures in the manual or the manufacturer's instructions.
3. Fit the rings with the mark facing up and the gaps staggered, never letting the ends of the oil control ring overlap.
4. Fit the piston with its arrow pointing to the exhaust side, oil the pin and the small end, then fit the circlips without distorting them, gap opposite the notch. A circlip that has been taken out is replaced with new piston pin circlips, never refitted.
5. Reassemble with a new top end gasket kit and tighten the cylinder head in a criss-cross pattern to the manufacturer's torque.
6. Refill the coolant, fit a new spark plug and change the oil with fresh engine oil and a new filter.
7. Break the engine in: warm it up gently, vary the revs and avoid sustained full throttle for the first hour.

Why WÖSSNER?

A German brand created by former racer Eckart Wössner, Wössner has been designing and forging its own pistons since 1994. These pistons are built for racing and are now used by Supercross, Arenacross and MXGP teams.

Spare parts and items to plan

• Piston rings : VERTEX · ATHENA
• Piston pin : WOSSNER CW16 · WOSSNER CW19
• Piston pin clips : WISECO · VERTEX
• Top-end gasket kit : see the selection
• Spark plug : see the selection
• Coolant : LIQUI MOLY 1 L · TWIN AIR
• 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50

Frequently asked questions

Does the kit include the gaskets?
No: the kit contains the piston, rings, pin and circlips. Add a top end gasket kit, because a head or base gasket can never be reused.

Can I replace just the rings later?
Yes, as long as the piston and cylinder are still within tolerance. Replacement rings can be ordered on their own, as can the piston pin and the circlips.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SUZUKI RMZ 250 2027
SUZUKI RMZ 250 2026
SUZUKI RMZ 250 2025
SUZUKI RMZ 250 2024
SUZUKI RMZ 250 2023
SUZUKI RMZ 250 2022
SUZUKI RMZ 250 2021
SUZUKI RMZ 250 2020
SUZUKI RMZ 250 2019
SUZUKI RMZ 250 2018
SUZUKI RMZ 250 2017
SUZUKI RMZ 250 2016
SUZUKI RMZ 250 2015
SUZUKI RMZ 250 2014
SUZUKI RMZ 250 2013
SUZUKI RMZ 250 2012
SUZUKI RMZ 250 2011
SUZUKI RMZ 250 2010
