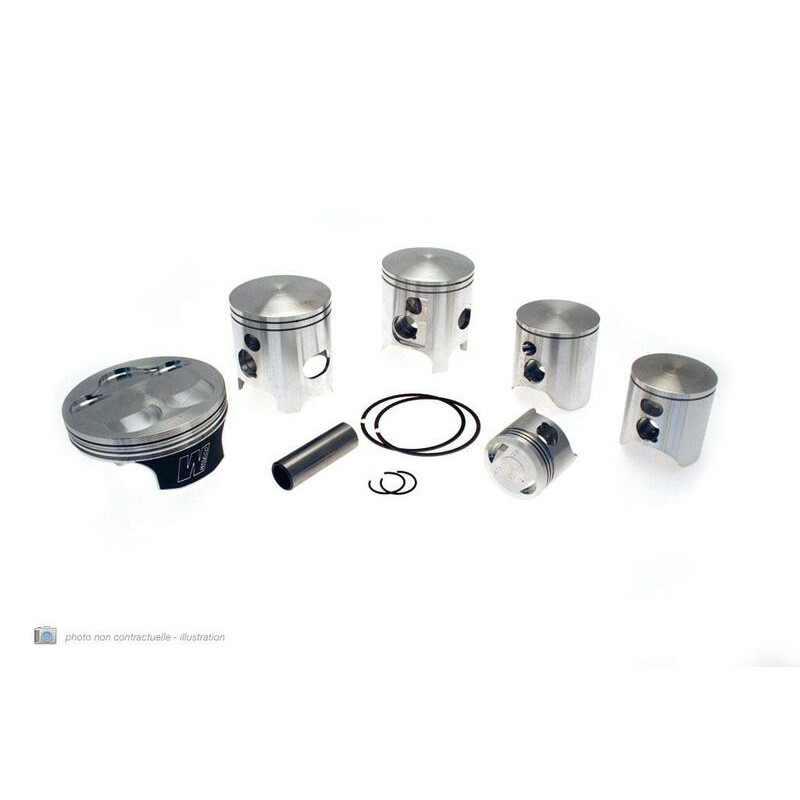

WISECO Forged Piston for CAN-AM DS 450, DS 450 EFI XMX, DS 450 EFI XXC, DS 450 XMX, DS 450 XXC 2008-2015

WISECO offers this piston kit for CAN-AM DS 450, DS 450 EFI XMX, DS 450 EFI XXC, DS 450 XMX, DS 450 XXC 2008-2015. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.

Why choose a forged piston?

Instead of simply being cast, a forged piston is hot-pressed under very high pressure and then machined: its metal is denser and free of air pockets.

• Stronger when hot: it copes better with high revs, overheating and detonation.
• Lighter for the same strength: less stress on the connecting rod and bearings.
• Good to know: depending on the alloy, it expands a little more and is fitted with more clearance; slight noise when cold is normal.
• Why does it cost more? Forging tools, full machining and surface treatments cost more than simple casting.

Why choose WISECO?

Wiseco has forged its pistons in Mentor (Ohio, USA) since 1941 and controls the whole process, from aluminium bar to the friction-reducing ArmorGlide skirt coating. Its pistons are developed with Team Honda HRC in Supercross (450 class since 2018).

When should you replace the piston on your CAN-AM DS 450?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 30 h in hard use and every 60 h for leisure.

Specifications and fitting tips

• Material: Aluminium
• Piston compression: Standard
• Oversize Letter: A
• Manufacturer part number: W40026M09700

Cross-Mania tip: Measure the cylinder bore before ordering: the piston must match your cylinder size. Follow the manufacturer's break-in procedure and replace the top-end gaskets at the same time.

Also needed with this part

• 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
CAN-AM DS 450 2015
CAN-AM DS 450 2014
CAN-AM DS 450 2013
CAN-AM DS 450 2012
CAN-AM DS 450 2011
CAN-AM DS 450 2010
CAN-AM DS 450 2009
CAN-AM DS 450 2008
CAN-AM DS 450 EFI XMX 2015
CAN-AM DS 450 EFI XMX 2014
CAN-AM DS 450 EFI XMX 2013
CAN-AM DS 450 EFI XMX 2012
CAN-AM DS 450 EFI XXC 2015
CAN-AM DS 450 EFI XXC 2014
CAN-AM DS 450 EFI XXC 2013
CAN-AM DS 450 EFI XXC 2012
CAN-AM DS 450 X 2009
CAN-AM DS 450 X 2008
CAN-AM DS 450 XMX 2011
CAN-AM DS 450 XMX 2010
CAN-AM DS 450 XMX 2009
CAN-AM DS 450 XXC 2011
CAN-AM DS 450 XXC 2010
CAN-AM DS 450 XXC 2009
