Stage 2 intake + exhaust camshaft pack HOT CAMS for KAWASAKI KFX 400, KLX 400 and SUZUKI DRZ 400, LTZ 400 2000-2014

Give your engine a real boost with the HOT CAMS Stage 2 camshaft pack for KAWASAKI KFX 400, KLX 400 and SUZUKI DRZ 400, LTZ 400 2000-2014. It brings together the intake and exhaust camshafts, designed to work as a pair: you change the whole valve timing in one job and pay 5% less than buying both cams separately.

Why go Stage 2?

Stage 2 goes further than Stage 1. The valves open higher and for longer, so the engine breathes better at high rpm. Where Stage 1 favours bottom and mid-range torque, Stage 2 delivers a strong mid-range hit and more peak power, with more over-rev. The bike becomes sharper and more aggressive: this is the upgrade for experienced riders and racing. On most models, Stage 2 cams still fit with the stock valve springs (unless stated otherwise).

What gain can you expect?

HOT CAMS quotes a power gain of 5 to 10% depending on the model. In practice you gain drive and punch where you ride the most, and the engine keeps that character for the life of the cams. The gain is greatest with a clean air filter, an exhaust in good condition and well-set carburation or fuel injection.

Why buy both camshafts together?

The intake and exhaust camshafts are designed as a pair: fitting one tuned cam with the other stock only gives part of the gain. With the pack you strip the head once, time the engine once and save 5% on the price of both cams.

Why choose HOT CAMS?

Hot Cams is the American off-road camshaft specialist. Its cams are machined from 8620 steel and case-hardened to resist wear, and every profile is developed and proven on the dyno. Their ITR (Improved Throttle Response) lobes open the valves faster for instant throttle response.

Fitting: what you need

• A new valve cover gasket: it crushes when tightened and cannot be reused. An old gasket lets oil weep onto the hot head. See the valve cover gasket for your bike.
• Follow the cam timing marks and check the valve clearance after fitting, then again after the first hours of riding.
• Use the strip-down to check the cam chain, its tensioner and slippers.
• A more aggressive cam may need the carburation or fuel-injection map fine-tuned.

Cross-Mania tip: work on a cold engine with the piston at top dead centre on the compression stroke, and tighten the cam caps gradually in a cross pattern to the workshop manual torque.

Pack contents

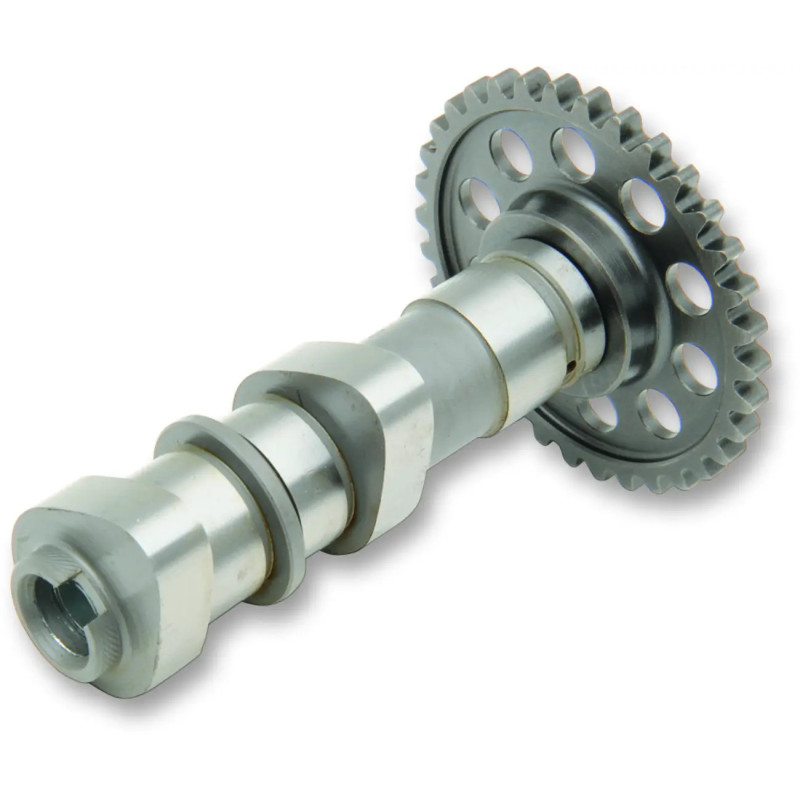

• Intake camshaft: HOT CAMS camshaft Stage 2 intake for SUZUKI DR-Z 400 S, KAWASAKI KFX 400 2X4 and ARCTIC CAT (TEXTRON) 400 2X4 from 2000 to 2017

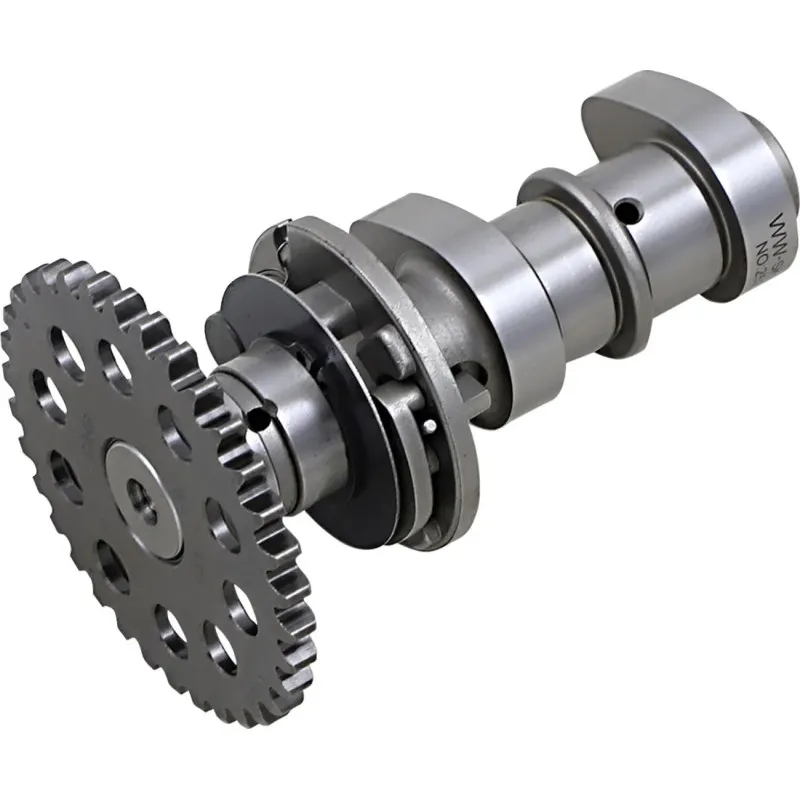

• Exhaust camshaft: HOT CAMS camshaft Stage 2 exhaust for SUZUKI DR-Z 400 S, KAWASAKI KFX 400 2X4 and ARCTIC CAT (TEXTRON) 400 2X4 from 2000 to 2017
• Price of both cams separately: €544.80 — pack price: €516.90

Compatibility

Check the exact model and year of your bike in the list below before ordering: KAWASAKI KFX 400 (2003-2006), KAWASAKI KLX 400 (2003-2004), SUZUKI DRZ 400 (2000-2007), SUZUKI LTZ 400 (2003-2014).
