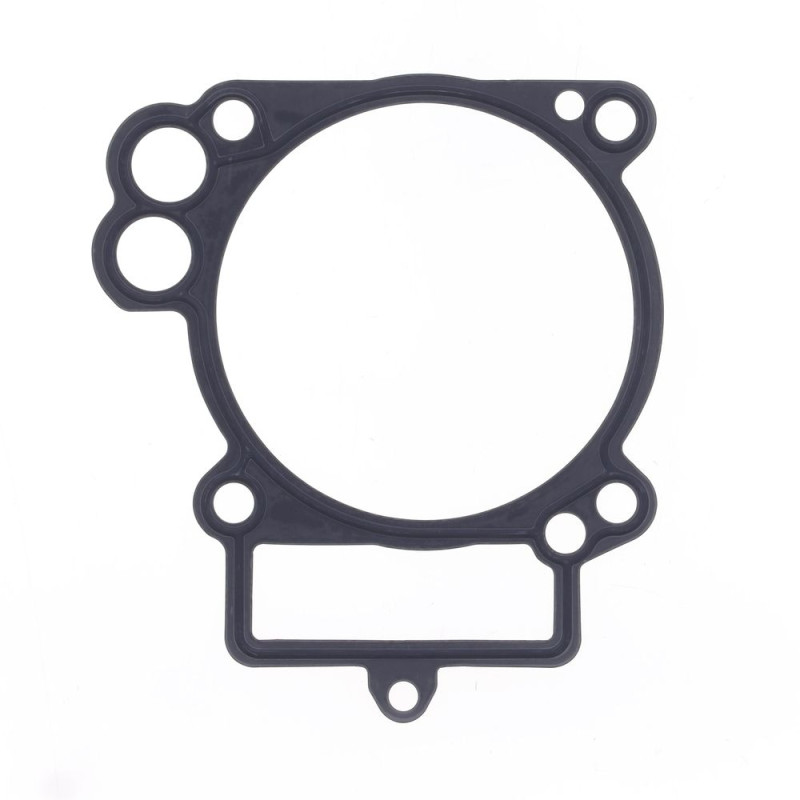

ATHENA Cylinder Base Gasket for HUSQVARNA 701, KTM ENDURO 690 and GAS GAS ES 700 2017-2024

On KTM ENDURO 690, HUSQVARNA 701 and GAS GAS ES 700 from 2017 to 2024, the ATHENA S410270006158 cylinder base gasket fits in place of the original part. Fitted under the cylinder, the base gasket is more than just a seal: its thickness sets the height of the cylinder, and with it the engine's squish and compression.

Key features

• Several thicknesses available for the same bike.
• The right tool for setting squish, compression and timing, according to Athena.

Specifications

• Brand: ATHENA
• Manufacturer part number: S410270006158
• EAN code: 8051757187645
• Thickness: OE
• Weight: 10 g
• Engine: 4-stroke

When to replace it?

• Oil or coolant seeping at the base of the cylinder.
• Gasket crushed or torn on removal.

Every time the cylinder is removed: a crushed base gasket can't be reused.

Fitting tips

1. Clean the crankcase face and the base of the cylinder without scratching them.
2. Fit the gasket dry, centred on the studs.
3. Tighten the cylinder in a criss-cross pattern to the manufacturer's torque.
4. If you have changed the thickness, measure the squish before refitting the cylinder head with a new head gasket.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Top-end gasket kit : see the selection
• Piston : see the selection
• Piston rings : see the selection
• Coolant : LIQUI MOLY 1 L · TWIN AIR

Frequently asked questions

Which thickness should I choose?
The same as your original gasket, unless you are deliberately adjusting the squish.

Should the other gaskets be replaced?
Yes, as soon as the cylinder is removed: a top end gasket kit includes all the gaskets that need replacing.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
GAS GAS ES 700 2024
GAS GAS ES 700 2023
GAS GAS ES 700 2022
HUSQVARNA 701 2024
HUSQVARNA 701 2023
HUSQVARNA 701 2022
HUSQVARNA 701 2021
HUSQVARNA 701 2020
HUSQVARNA 701 2019
HUSQVARNA 701 2018
HUSQVARNA 701 2017
KTM ENDURO 690 2024
KTM ENDURO 690 2023
KTM ENDURO 690 2022
KTM ENDURO 690 2021
KTM ENDURO 690 2020
KTM ENDURO 690 2019
