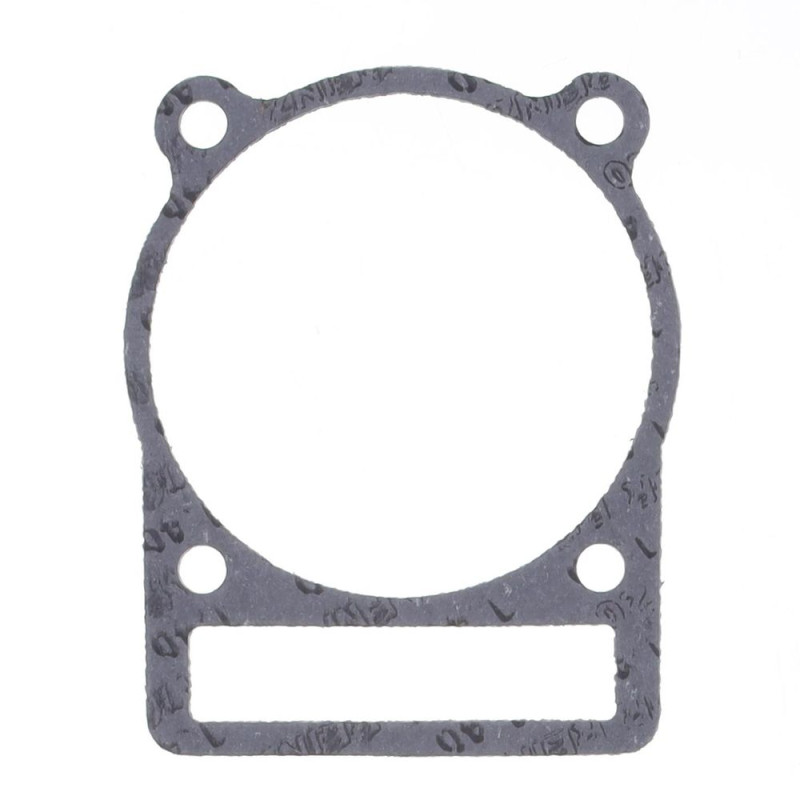

ATHENA Cylinder Base Gasket for HUSQVARNA TC 610, TE 400, TE 410, TE 570, TE 610 1990-2004

ATHENA offers this cylinder base gasket for HUSQVARNA TC 610, TE 400, TE 410, TE 570, TE 610 1990-2004. The base gasket sits under the cylinder, on the crankcase. Crushed when tightened, it cannot be reused: replace it every time the cylinder comes off.

Why does the thickness matter?

The benefits:

• The OE thickness keeps the cylinder height intended by the manufacturer.
• Another thickness lets you correct piston-to-head clearance after machining or adjust the port timing of a 2-stroke.
• A new gasket keeps the bottom end sealed against oil and gases.

Why choose ATHENA?

Athena, founded in 1973 by Giovanni Mancassola near Vicenza and based in Alonte (Italy), designs gaskets, pistons and cylinder kits; it supplies original equipment to manufacturers such as KTM, Ducati, Fantic and Triumph.

When should you replace the base gasket on your HUSQVARNA TE 610?

Every time the cylinder comes off: piston change, top-end rebuild or cylinder inspection. Oil or mixture seeping at the base of the cylinder also points to a tired gasket.

No manufacturer figure in hours for this model. Cross-Mania guideline: compression check every 30 h of hard use and every 60 h of leisure riding.

Specifications and fitting tips

• Thickness : OE
• Manufacturer part number: S410220006005

Cross-Mania tip: Choose the OE thickness if the cylinder and head have not been machined; if in doubt, measure the squish with solder wire before final assembly.

Spare parts and items to plan

• Top-end gasket kit : ATHENA S410220015001 · ATHENA S410220001002/1
• Piston : see the selection
• Piston rings : PROX · WOSSNER
• Coolant : LIQUI MOLY 1 L · TWIN AIR

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HUSQVARNA TC 610 2004
HUSQVARNA TC 610 2003
HUSQVARNA TC 610 2001
HUSQVARNA TC 610 2000
HUSQVARNA TC 610 1999
HUSQVARNA TC 610 1998
HUSQVARNA TC 610 1997
HUSQVARNA TC 610 1996
HUSQVARNA TC 610 1995
HUSQVARNA TC 610 1994
HUSQVARNA TC 610 1993
HUSQVARNA TE 400 2004
HUSQVARNA TE 400 2003
HUSQVARNA TE 400 2002
HUSQVARNA TE 400 2001
HUSQVARNA TE 410 2001
HUSQVARNA TE 410 2000
HUSQVARNA TE 410 1999
HUSQVARNA TE 410 1998
HUSQVARNA TE 410 1997
HUSQVARNA TE 410 1996
HUSQVARNA TE 570 2004
HUSQVARNA TE 570 2003
HUSQVARNA TE 570 2002
HUSQVARNA TE 570 2001
HUSQVARNA TE 610 2001
HUSQVARNA TE 610 2000
HUSQVARNA TE 610 1999
HUSQVARNA TE 610 1998
HUSQVARNA TE 610 1997
HUSQVARNA TE 610 1996
HUSQVARNA TE 610 1995
HUSQVARNA TE 610 1994
HUSQVARNA TE 610 1993
HUSQVARNA TE 610 1992
HUSQVARNA TE 610 1991
HUSQVARNA TE 610 1990
