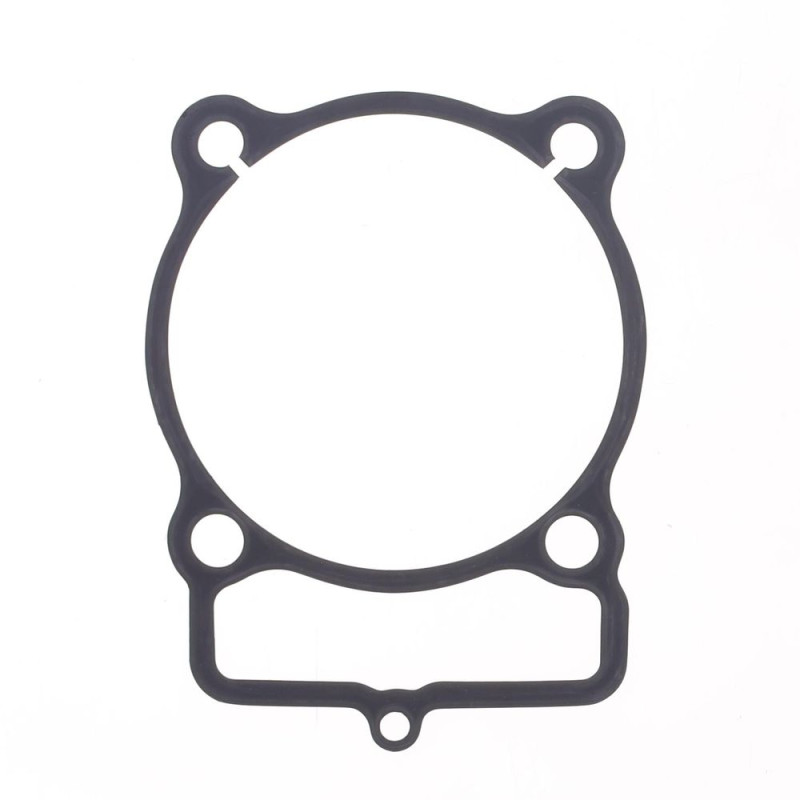

ATHENA Cylinder Base Gasket ref. S410220006022 for HUSQVARNA TC, TE, TXC 250, 310, 450, 510 2003-2010

ATHENA offers this cylinder base gasket for HUSQVARNA TC, TE, TXC 250, 310, 450, 510 2003-2010. The base gasket sits under the cylinder, on the crankcase. Crushed when tightened, it cannot be reused: replace it every time the cylinder comes off.

Why does the thickness matter?

The benefits:

• The OE thickness keeps the cylinder height intended by the manufacturer.
• Another thickness lets you correct piston-to-head clearance after machining or adjust the port timing of a 2-stroke.
• A new gasket keeps the bottom end sealed against oil and gases.

Why choose ATHENA?

Athena, founded in 1973 by Giovanni Mancassola near Vicenza and based in Alonte (Italy), designs gaskets, pistons and cylinder kits; it supplies original equipment to manufacturers such as KTM, Ducati, Fantic and Triumph.

When should you replace the base gasket on your HUSQVARNA TC 450?

Every time the cylinder comes off: piston change, top-end rebuild or cylinder inspection. Oil or mixture seeping at the base of the cylinder also points to a tired gasket.

No manufacturer figure in hours for this model. Cross-Mania guideline: compression check every 30 h of hard use and every 60 h of leisure riding.

Specifications and fitting tips

• Thickness : OE
• Manufacturer part number: S410220006022

Cross-Mania tip: Choose the OE thickness if the cylinder and head have not been machined; if in doubt, measure the squish with solder wire before final assembly.

Spare parts and items to plan

• Top-end gasket kit : MOOSE · COMETIC
• Piston : METEOR · VERTEX
• Piston rings : ATHENA · PROX
• Coolant : LIQUI MOLY 1 L · TWIN AIR

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HUSQVARNA TC 250 2009
HUSQVARNA TC 250 2008
HUSQVARNA TC 250 2007
HUSQVARNA TC 250 2006
HUSQVARNA TC 250 2005
HUSQVARNA TC 250 2004
HUSQVARNA TC 250 2003
HUSQVARNA TC 450 2010
HUSQVARNA TC 450 2009
HUSQVARNA TC 450 2008
HUSQVARNA TC 450 2007
HUSQVARNA TC 450 2006
HUSQVARNA TC 450 2005
HUSQVARNA TC 450 2004
HUSQVARNA TC 450 2003
HUSQVARNA TC 510 2010
HUSQVARNA TC 510 2009
HUSQVARNA TC 510 2008
HUSQVARNA TC 510 2007
HUSQVARNA TC 510 2006
HUSQVARNA TC 510 2005
HUSQVARNA TC 510 2004
HUSQVARNA TE 250 2009
HUSQVARNA TE 250 2008
HUSQVARNA TE 250 2007
HUSQVARNA TE 250 2006
HUSQVARNA TE 250 2005
HUSQVARNA TE 250 2004
HUSQVARNA TE 250 2003
HUSQVARNA TE 310 2010
HUSQVARNA TE 310 2009
HUSQVARNA TE 450 2009
HUSQVARNA TE 450 2008
HUSQVARNA TE 450 2007
HUSQVARNA TE 450 2006
HUSQVARNA TE 450 2005
HUSQVARNA TE 450 2004
HUSQVARNA TE 450 2003
HUSQVARNA TE 510 2010
HUSQVARNA TE 510 2009
HUSQVARNA TE 510 2008
HUSQVARNA TE 510 2007
HUSQVARNA TE 510 2006
HUSQVARNA TE 510 2005
HUSQVARNA TE 510 2004
HUSQVARNA TXC 250 2009
HUSQVARNA TXC 250 2008
HUSQVARNA TXC 250 2007
HUSQVARNA TXC 250 2006
HUSQVARNA TXC 250 2005
HUSQVARNA TXC 250 2004
HUSQVARNA TXC 250 2003
HUSQVARNA TXC 310 2010
HUSQVARNA TXC 310 2009
HUSQVARNA TXC 450 2010
HUSQVARNA TXC 450 2009
HUSQVARNA TXC 450 2008
HUSQVARNA TXC 450 2007
HUSQVARNA TXC 450 2006
HUSQVARNA TXC 450 2005
HUSQVARNA TXC 450 2004
HUSQVARNA TXC 450 2003
HUSQVARNA TXC 510 2010
HUSQVARNA TXC 510 2009
HUSQVARNA TXC 510 2008
HUSQVARNA TXC 510 2007
HUSQVARNA TXC 510 2006
HUSQVARNA TXC 510 2005
HUSQVARNA TXC 510 2004
