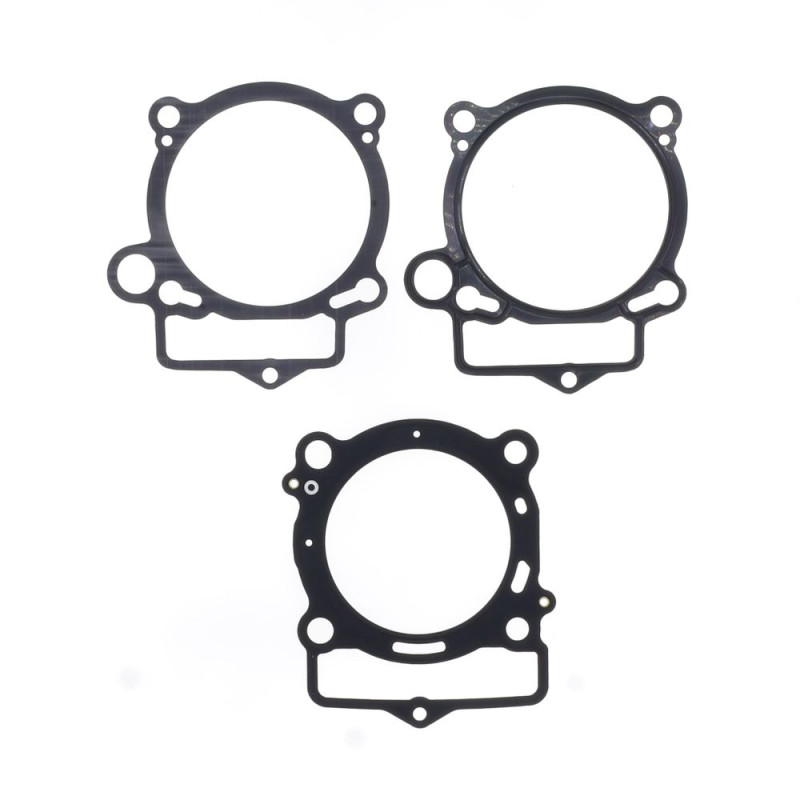

ATHENA Racing Top End Gasket Kit for HUSQVARNA FC, FE, FX 350, KTM EXCF, SXF, XCF 350 and GAS GAS ECF, EXF, MCF 350 2023-2027

The ATHENA Racing R2706-098 top end gasket kit is designed for KTM EXCF 350, SXF 350, XCF 350, HUSQVARNA FC 350, FE 350, FX 350 and GAS GAS ECF 350, EXF 350, MCF 350 from 2023 to 2027. As soon as the cylinder head or cylinder is removed, their gaskets must be replaced: crushed when tightened, they have taken the shape of the parts and will no longer seal. This kit groups under one part number the gaskets needed to reassemble the top end.

Key features

• Head, base and exhaust gaskets, O-rings and washers, depending on the model.
• Laser cutting and surface treatments for consistent sealing.
• Designed by Athena, an OEM supplier, and validated on test benches.

Specifications

• Brand: ATHENA
• Manufacturer part number: R2706-098
• EAN code: 8053300719341
• Weight: 100 g
• Engine: 4-stroke

When to replace it?

• Coolant or oil seeping at the head/cylinder or cylinder/crankcase joint.
• Coolant level dropping, bubbles in the radiator.
• Hissing or black marks where the exhaust leaves the cylinder.

At every piston change and every time the cylinder head or cylinder is removed, even for a simple inspection. Gaskets cost little compared with the work of stripping the engine.

Fitting tips

1. Clean the gasket faces without scratching them (plastic scraper, solvent): they must be clean, dry and free of burrs.
2. Fit the gaskets dry, without sealant, unless the workshop manual says otherwise.
3. Refit a base gasket of the same thickness as the old one, unless you are deliberately adjusting the squish.
4. Tighten the cylinder head in a criss-cross pattern, in several stages, up to the manufacturer's torque.
5. While it's apart, replace the spark plug and refill the coolant.
6. After break-in, check the torque with the engine cold and make sure there are no leaks.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Piston : see the selection
• Piston rings : PROX · WOSSNER
• Spark plug : see the selection
• Coolant : LIQUI MOLY 1 L · TWIN AIR
• 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50

Frequently asked questions

What does the kit contain?
Depending on the model: head gasket, base gasket, exhaust gasket, O-rings and washers. Compare with your original gaskets if you're unsure.

Should I replace it along with the piston?
Yes: as soon as the cylinder head and cylinder are off, new gaskets go back on. It's the right time to fit a new piston kit and new rings if the engine has some hours on it.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
GAS GAS ECF 350 2027
GAS GAS ECF 350 2026
GAS GAS ECF 350 2025
GAS GAS ECF 350 2024
GAS GAS EXF 350 2025
GAS GAS EXF 350 2024
GAS GAS MCF 350 2025
GAS GAS MCF 350 2024
HUSQVARNA FC 350 2027
HUSQVARNA FC 350 2026
HUSQVARNA FC 350 2025
HUSQVARNA FC 350 2024
HUSQVARNA FC 350 2023
HUSQVARNA FE 350 2027
HUSQVARNA FE 350 2026
HUSQVARNA FE 350 2025
HUSQVARNA FE 350 2024
HUSQVARNA FX 350 2027
HUSQVARNA FX 350 2026
HUSQVARNA FX 350 2025
HUSQVARNA FX 350 2024
HUSQVARNA FX 350 2023
KTM EXCF 350 2027
KTM EXCF 350 2026
KTM EXCF 350 2025
KTM EXCF 350 2024
KTM SXF 350 2027
KTM SXF 350 2026
KTM SXF 350 2025
KTM SXF 350 2024
KTM SXF 350 2023
KTM XCF 350 2027
KTM XCF 350 2026
KTM XCF 350 2025
KTM XCF 350 2024
KTM XCF 350 2023
