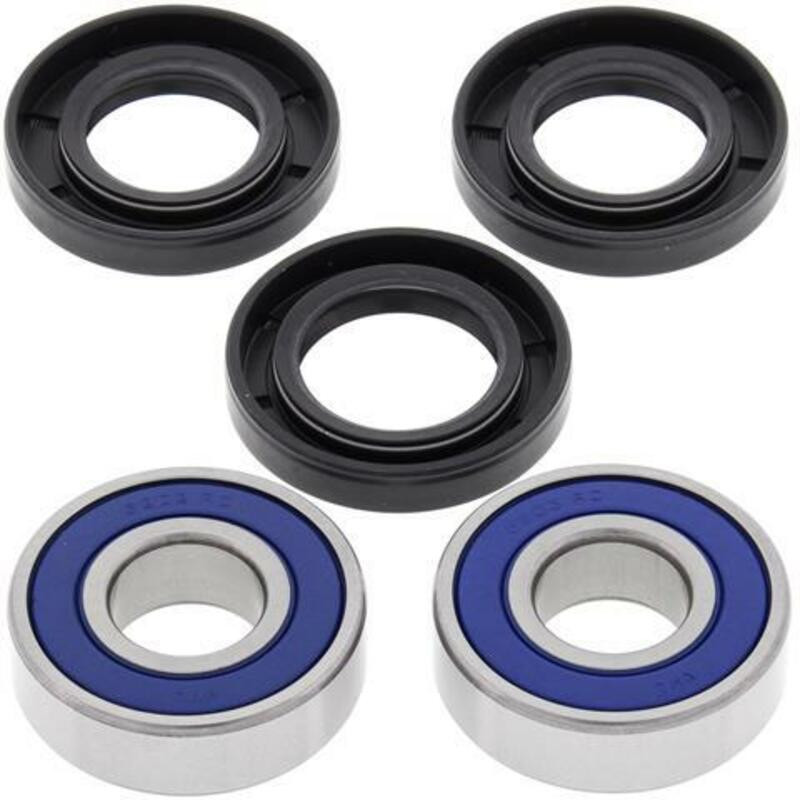

ALL BALLS Wheel Bearing Kit for SUZUKI DL 650 V-STROM, DL 650 V-STROM ABS, DL 650 V-STROM XT ABS and HONDA ATC 110 1980-2024

ALL BALLS offers this wheel bearing for SUZUKI DL 650 V-STROM, DL 650 V-STROM ABS, DL 650 V-STROM XT ABS and HONDA ATC 110 1980-2024. Each wheel spins on two bearings in the hub, separated by a spacer. Water and mud eventually damage them: play, rough spots, noise.

What is this bearing made of?

Races and balls in hardened chrome steel, 100Cr6 type, very hard and fatigue-resistant, protected by rubber seals.

• Double seal (2RS): a seal on each side, very well sealed against water and mud, essential off-road.
• Limit: slightly more drag than a metal-shielded bearing (ZZ), which spins more freely but seals far less well.
• Fitting: press or drift it in on the outer race, never hammer on the seal; keep the pressure washer away from the hubs.

Why choose ALL BALLS?

Complete All Balls kits: low-friction bearings and steel-spring nitrile seals, everything you need in one box.

When should you replace the bearings?

Check the wheels for play at every wash with the wheel off the ground: a failing bearing can lock the wheel. Pressure washing forces water in and speeds up wear.

Specifications and fitting tips

• Wheel bearing kit
• For long term replacement
• Manufacturer part number: 25-1211

Cross-Mania tip: Always replace the bearings of a wheel together and check the spacer.

Also needed with this part

• Grease : MOTUL 400 g 108664 · MOTUL 400 g 108672

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA ATC 110 1981
HONDA ATC 110 1980
SUZUKI DL 650 V-STROM 2011
SUZUKI DL 650 V-STROM 2010
SUZUKI DL 650 V-STROM 2009
SUZUKI DL 650 V-STROM 2008
SUZUKI DL 650 V-STROM 2007
SUZUKI DL 650 V-STROM 2006
SUZUKI DL 650 V-STROM 2005
SUZUKI DL 650 V-STROM 2004
SUZUKI DL 650 V-STROM ABS 2024
SUZUKI DL 650 V-STROM ABS 2023
SUZUKI DL 650 V-STROM ABS 2022
SUZUKI DL 650 V-STROM ABS 2021
SUZUKI DL 650 V-STROM ABS 2020
SUZUKI DL 650 V-STROM ABS 2019
SUZUKI DL 650 V-STROM ABS 2018
SUZUKI DL 650 V-STROM ABS 2017
SUZUKI DL 650 V-STROM ABS 2016
SUZUKI DL 650 V-STROM ABS 2015
SUZUKI DL 650 V-STROM ABS 2014
SUZUKI DL 650 V-STROM ABS 2013
SUZUKI DL 650 V-STROM ABS 2012
SUZUKI DL 650 V-STROM ABS 2011
SUZUKI DL 650 V-STROM ABS 2010
SUZUKI DL 650 V-STROM ABS 2009
SUZUKI DL 650 V-STROM ABS 2008
SUZUKI DL 650 V-STROM ABS 2007
SUZUKI DL 650 V-STROM XT ABS 2024
SUZUKI DL 650 V-STROM XT ABS 2023
SUZUKI DL 650 V-STROM XT ABS 2022
SUZUKI DL 650 V-STROM XT ABS 2021
SUZUKI DL 650 V-STROM XT ABS 2020
SUZUKI DL 650 V-STROM XT ABS 2019
SUZUKI DL 650 V-STROM XT ABS 2018
SUZUKI DL 650 V-STROM XT ABS 2017
SUZUKI DL 650 V-STROM XT ABS 2016
SUZUKI DL 650 V-STROM XT ABS 2015
