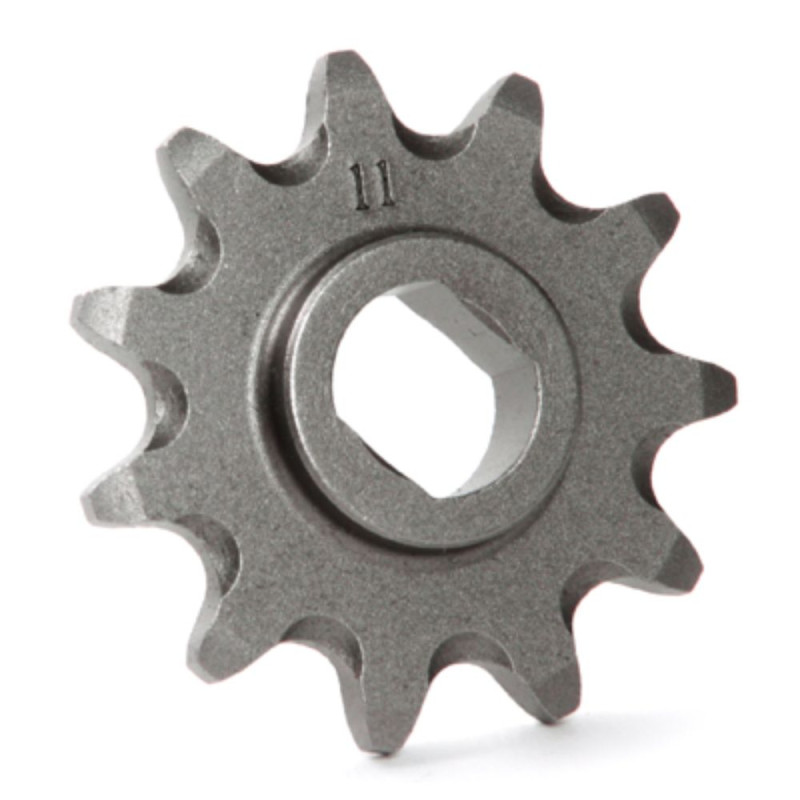

PROX Front Sprocket for KTM SX 50 2009-2023

The PROX front sprocket is designed for KTM SX 50 from 2009 to 2023. The front sprocket drives the chain at the gearbox output. Small and working hard, it wears faster than the rear sprocket: it's also the simplest way to change the bike's gearing.

Specifications

• Brand: PROX
• Manufacturer part numbers: 07.FS60009-10, 07.FS60009-11
• Available versions: 10 Teeth: ref. 07.FS60009-10; 11 Teeth: ref. 07.FS60009-11

Choosing the right number of teeth

Start from the stock number of teeth. One tooth less on the front sprocket shortens the gearing (more acceleration, ideal on tight terrain); one tooth more lengthens it (more speed on fast tracks). One tooth on the front sprocket is worth roughly three to four teeth on the rear sprocket.

When to replace it?

• Teeth thinned, pointed or hooked.
• Chain that jumps or slaps under acceleration.
• Play between the sprocket and the shaft, or marked splines.

Check it every time you service the chain and replace it along with the rear sprocket and the chain. Many riders change the front sprocket with every new chain, because it wears much faster than the rear sprocket.

Fitting tips

1. Loosen the sprocket nut or bolt while holding the rear wheel with the brake, before slackening the chain.
2. Clean the countershaft and check the oil seal behind the sprocket.
3. Fit the sprocket the right way round, with a lock washer or threadlocker as on the original assembly, and tighten to the manufacturer's torque.
4. Set the chain tension and lube it with chain lube.

Why PROX?

Founded in 1975 and based near Amsterdam, ProX specialises in engine and clutch wear parts for off-road bikes. The brand has most of its range made in Japan, by OEM suppliers, for quality on a par with the original parts.

Spare parts and items to plan

• Rear sprocket : RFX · AFAM
• Drive chain : AFAM A415F · RENTHAL R1
• Chain lube : LIQUI MOLY 400 ml · MUC OFF 400 ml

Frequently asked questions

Should the rear sprocket be changed too?
If it's worn, yes: a new front sprocket running on a tired rear sprocket and chain is worn out within a few hours.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KTM SX 50 2023
KTM SX 50 2022
KTM SX 50 2021
KTM SX 50 2020
KTM SX 50 2019
KTM SX 50 2018
KTM SX 50 2017
KTM SX 50 2016
KTM SX 50 2015
KTM SX 50 2014
KTM SX 50 2013
KTM SX 50 2012
KTM SX 50 2011
KTM SX 50 2010
KTM SX 50 2009
