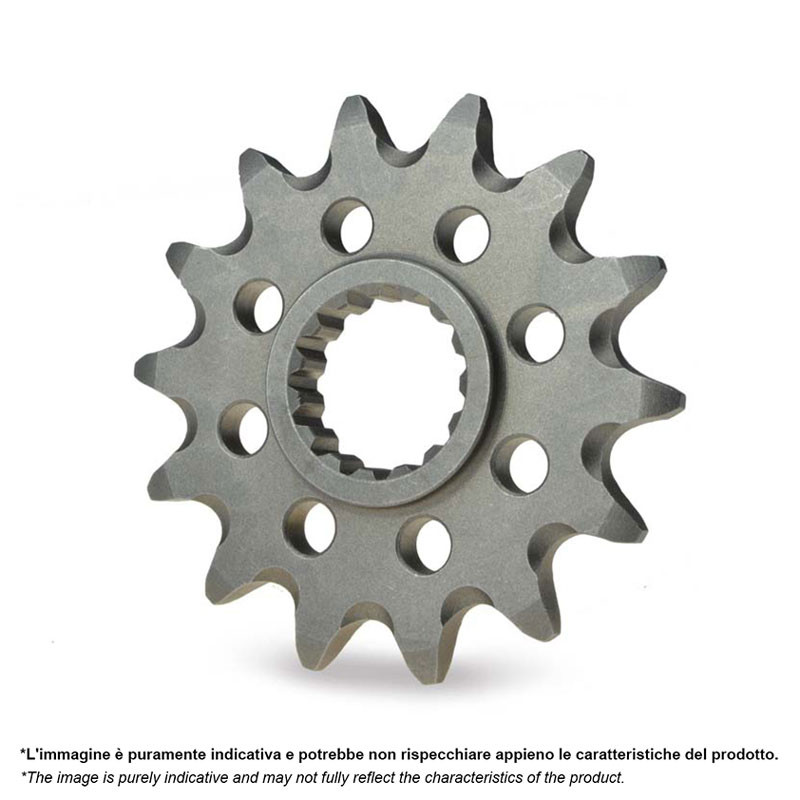

MOTO-MASTER Ultralight Front Sprocket for KAWASAKI KLX 450, KX 250, KXF 450 1999-2026

The MOTO-MASTER front sprocket is designed for KAWASAKI KLX 450, KX 250, KXF 450 from 1999 to 2026. The front sprocket drives the chain at the gearbox output. Small and working hard, it wears faster than the rear sprocket: it's also the simplest way to change the bike's gearing.

Specifications

• Brand: MOTO-MASTER
• Manufacturer part numbers: 610091113, 610091114, 610091115
• Chain pitch: 520
• Material: steel
• Available versions: 13 Teeth: ref. 610091113; 14 Teeth: ref. 610091114; 15 Teeth: ref. 610091115
• Weight: 140 g

Choosing the right number of teeth

Start from the stock number of teeth. One tooth less on the front sprocket shortens the gearing (more acceleration, ideal on tight terrain); one tooth more lengthens it (more speed on fast tracks). One tooth on the front sprocket is worth roughly three to four teeth on the rear sprocket.

When to replace it?

• Teeth thinned, pointed or hooked.
• Chain that jumps or slaps under acceleration.
• Play between the sprocket and the shaft, or marked splines.

Check it every time you service the chain and replace it along with the rear sprocket and the chain. Many riders change the front sprocket with every new chain, because it wears much faster than the rear sprocket.

Fitting tips

1. Loosen the sprocket nut or bolt while holding the rear wheel with the brake, before slackening the chain.
2. Clean the countershaft and check the oil seal behind the sprocket.
3. Fit the sprocket the right way round, with a lock washer or threadlocker as on the original assembly, and tighten to the manufacturer's torque.
4. Set the chain tension and lube it with chain lube.

Why MOTO-MASTER?

In motocross, Moto-Master was working with the Red Bull KTM Factory Racing team as early as 2010, and it backed the MXGP world championship in 2015. On the technical side, the Flame profile of its discs is designed to improve cooling and go easy on the pads, and its Racing GP sintered pads use a backing plate with hooks (NRS technology) that stops the friction material from coming away.

Spare parts and items to plan

• Rear sprocket : RFX FXRS · RFX FXRS
• Drive chain : RENTHAL 520 · RENTHAL
• Chain lube : LIQUI MOLY 400 ml · MUC OFF 400 ml

Frequently asked questions

Should the rear sprocket be changed too?
If it's worn, yes: a new front sprocket running on a tired rear sprocket and chain is worn out within a few hours.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KLX 450 2026
KAWASAKI KLX 450 2025
KAWASAKI KLX 450 2024
KAWASAKI KLX 450 2023
KAWASAKI KLX 450 2022
KAWASAKI KLX 450 2021
KAWASAKI KLX 450 2020
KAWASAKI KLX 450 2019
KAWASAKI KLX 450 2018
KAWASAKI KLX 450 2017
KAWASAKI KLX 450 2016
KAWASAKI KLX 450 2015
KAWASAKI KLX 450 2014
KAWASAKI KLX 450 2013
KAWASAKI KLX 450 2012
KAWASAKI KLX 450 2011
KAWASAKI KLX 450 2010
KAWASAKI KLX 450 2009
KAWASAKI KLX 450 2008
KAWASAKI KLX 450 2007
KAWASAKI KX 250 2008
KAWASAKI KX 250 2007
KAWASAKI KX 250 2006
KAWASAKI KX 250 2005
KAWASAKI KX 250 2004
KAWASAKI KX 250 2003
KAWASAKI KX 250 2002
KAWASAKI KX 250 2001
KAWASAKI KX 250 2000
KAWASAKI KX 250 1999
KAWASAKI KXF 450 2026
KAWASAKI KXF 450 2025
KAWASAKI KXF 450 2024
KAWASAKI KXF 450 2023
KAWASAKI KXF 450 2022
KAWASAKI KXF 450 2021
KAWASAKI KXF 450 2020
KAWASAKI KXF 450 2019
KAWASAKI KXF 450 2018
KAWASAKI KXF 450 2017
KAWASAKI KXF 450 2016
KAWASAKI KXF 450 2015
KAWASAKI KXF 450 2014
KAWASAKI KXF 450 2013
KAWASAKI KXF 450 2012
KAWASAKI KXF 450 2011
KAWASAKI KXF 450 2010
KAWASAKI KXF 450 2009
KAWASAKI KXF 450 2008
KAWASAKI KXF 450 2007
KAWASAKI KXF 450 2006
