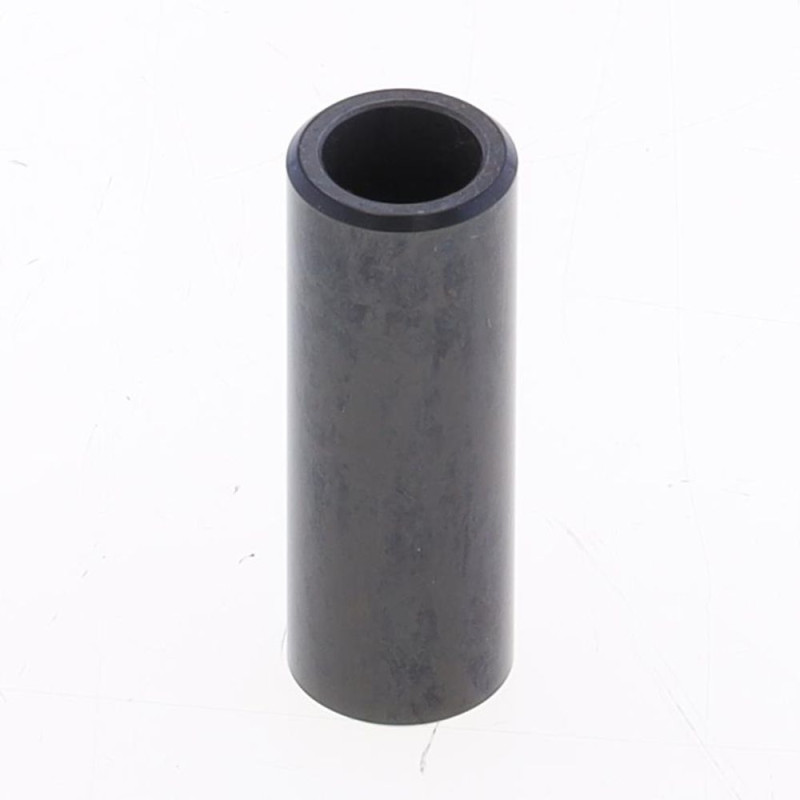

ATHENA Piston Pin 16x9x45 mm for KAWASAKI KXF 250 2004-2008
€18.90
Tax Included
ATHENA 16x9x45 mm piston pin for KAWASAKI KXF 250 from 2004 to 2008.
On KAWASAKI KXF 250 from 2004 to 2008, the ATHENA 16x9x45 mm S41317046 piston pin fits in place of the original part. Small but heavily loaded, the pin transmits the piston's thrust to the connecting rod. A marked or oval pin creates play and noise, and wears the small end.
Specifications
- Brand: ATHENA
- Manufacturer part number: S41317046
- EAN code: 8051757129102
- For ATHENA piston
- For ATHENA cylinder kit ref. P400250100014 (Ø77 mm)
- Weight: 10 g
- Engine: 4-stroke
When to replace it?
- Metallic knocking at idle or when closing the throttle.
- Pin marked, blued or scored on teardown.
- Noticeable play between the pin and the small end or the piston bosses.
Check the pin at every piston change and replace it as soon as it is marked, blued or has play. A new pin always goes in with new circlips.
Fitting tips
- Check that the pin diameter and length match your piston (see specifications).
- Oil the pin, the small end and the piston bosses, then push the pin in by hand, without forcing it.
- Fit new piston pin circlips, gap opposite the notch, and check they sit properly in their groove.
Why ATHENA?
Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.
Spare parts and items to plan
Frequently asked questions
Is the pin supplied with the piston?
Yes, a new piston comes with its pin. This part is for replacing a worn or lost pin, or for completing a piston sold on its own.
Are the circlips included?
No: plan for new piston pin circlips, as they are never reused.
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
KAWASAKI KXF 250 2008
KAWASAKI KXF 250 2007
KAWASAKI KXF 250 2006
KAWASAKI KXF 250 2005
KAWASAKI KXF 250 2004
