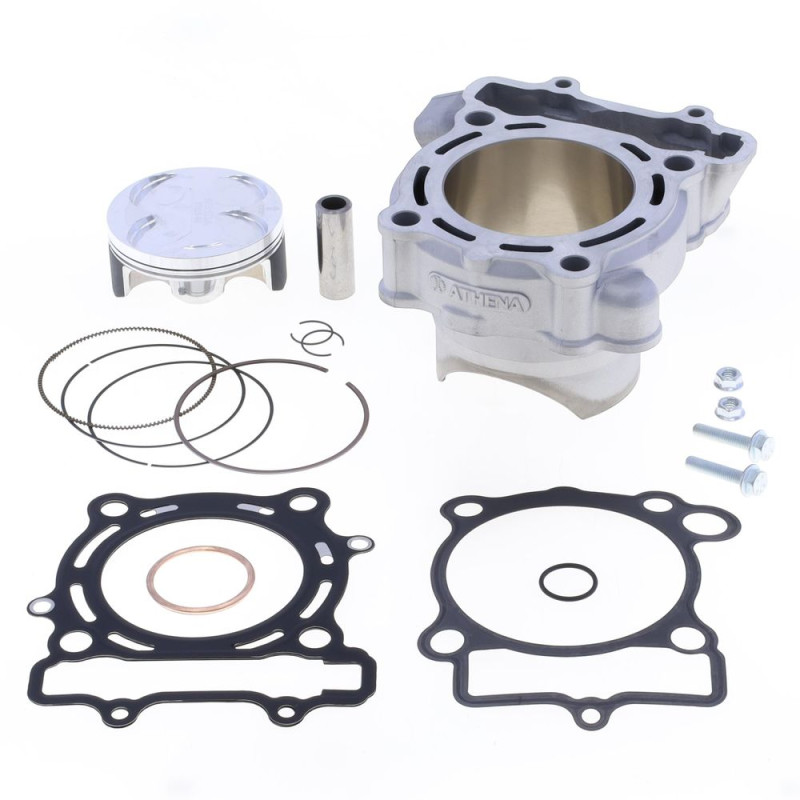

ATHENA standard bore 250 Cylinder Kit Ø77 mm for KAWASAKI KXF 250 2006-2008

The ATHENA P400250100014 cylinder kit is designed for KAWASAKI KXF 250 from 2006 to 2008. The cylinder guides the piston and, together with the cylinder head, forms the chamber where combustion takes place. Its bore coating wears, scores or goes oval over the hours: a new cylinder kit gives the engine back its original compression, or more displacement with a Big Bore version.

Specifications

• Brand: ATHENA
• Manufacturer part number: P400250100014
• EAN code: 8055681300712
• Weight: 1.49 kg
• Engine: 4-stroke

When to replace it?

• Cylinder scored or coating flaking after a seizure.
• Ovality or taper out of tolerance when measured with a micrometer.

Measure the cylinder at every piston change. As soon as it falls outside the tolerances in the manual or is scored, it has to be replaced or reconditioned.

Fitting tips

1. Carefully clean the top of the crankcase and cover its opening before removing the old cylinder.
2. Oil the supplied piston and check the ring end gaps before fitting the cylinder.
3. Use new gaskets, either those in the kit or a suitable top end gasket kit, and tighten the cylinder and head in a criss-cross pattern to the manufacturer's torque.
4. Fit a new spark plug and refill the coolant.
5. Break the engine in gently for 3 to 4 hours, as Athena recommends for its cylinder kits.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Piston : ATHENA
• Piston pin : ATHENA
• Top end gasket kit : ATHENA
• Spark plug : see the selection
• Coolant : LIQUI MOLY 1 L · TWIN AIR

Frequently asked questions

What does the kit contain?
The cylinder, its complete piston and a specific gasket kit.

Which spare parts should I plan for?
For the next service: piston, rings, pin, circlips and top end gaskets in the same size as this cylinder.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KXF 250 2008
KAWASAKI KXF 250 2007
KAWASAKI KXF 250 2006
