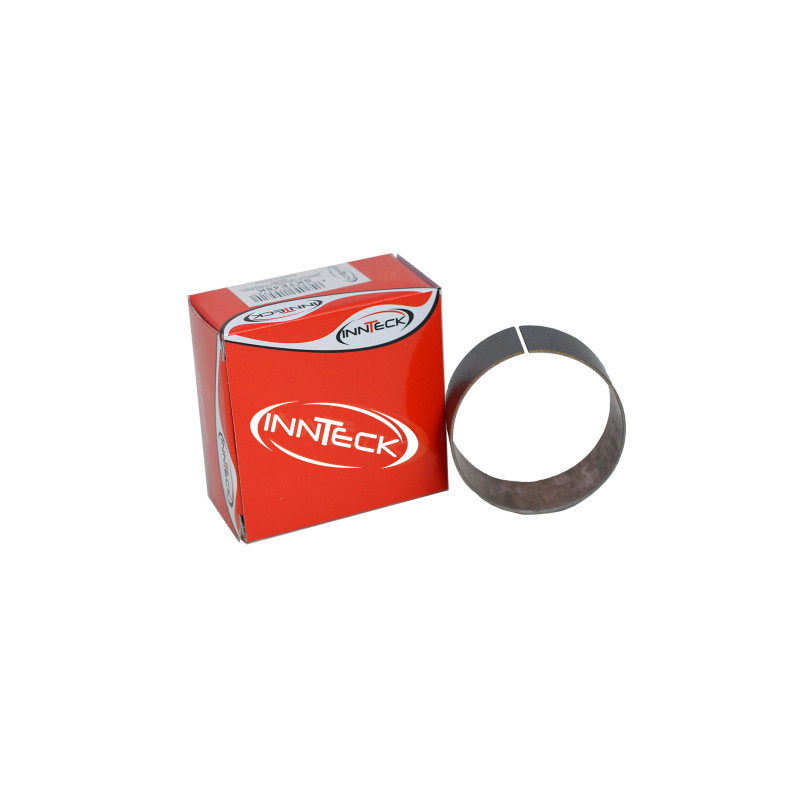

INNTECK KYB 43 mm Inner Fork Bushing for KAWASAKI, YAMAHA, HONDA, SUZUKI and BETA 1983-2027

Name: INNTECK KYB 43 mm Inner Fork Bushing for KAWASAKI, YAMAHA, HONDA, SUZUKI and BETA 1983-2027
Brand: INNTECK
SKU: SKTE43K
Price: 10.9 EUR
Availability: InStock

Review (0)

€10.90

Tax Included

Available from our supplier, shipped within 10 to 15 days.

INNTECK KYB 43 mm inner fork bushing for KAWASAKI KDX, KLX, KX 125, 200, 250, 500, YAMAHA TT, TTR, XT, YZ 125, 250, 600, 660, HONDA CR, XR 125, 250, 400, 500, 600, SUZUKI DL, DR 250, 350, 1000 and BETA XTRAINER 250, 300 from 1983 to 2027.

The INNTECK KYB 43 mm SKTE43K inner fork bushing is designed for KAWASAKI KDX 200, KDX 250, KLX 250, KX 125, KX 250, KX 500, YAMAHA TT 600, TTR 250, XT 660, YZ 125, YZ 250, HONDA CR 125, CR 250, CR 500, XR 400, XR 600, SUZUKI DL 1000, DR 250, DR 350 and BETA XTRAINER 250, XTRAINER 300 from 1983 to 2027. The inner fork bushing (slide bushing) is fitted at the bottom of the inner tube: together with the outer fork bushing, it guides the sliding of the fork. Its PTFE (Teflon) coating reduces friction; once worn, the bronze shows through, the fork binds and the oil seals wear out faster.

Specifications

Brand: INNTECK
Manufacturer part number: SKTE43K
EAN code: 8050040145621
Slide bushing fitted at the bottom of the inner tube (PTFE-coated outside)

When to replace it?

Grey coating worn through: the copper or bronze shows on the bushing.
Play in the fork when you rock the bike back and forth with the front brake on.
Fork that binds at the start of its stroke, oil seals that leak again and again.

Check the bushings every time you replace the oil seals or change the fork oil. Replace them as soon as the bronze shows over more than a quarter of their surface.

Fitting tips

Disassemble the fork leg following the manual and separate the outer tube from the inner tube.
Spread the bushing slightly by hand at its split to lift it out of its groove, without scratching the tube.
Fit the new bushing in the groove, then install new oil seals.
Reset the fork oil level as per the manual.

Spare parts and items to plan

Fork oil seals : SKF OSB-43K · SKF OSB-43S
Fork oil : LIQUI MOLY 10W 500 ml
Fork dust seals : ATHENA · KYB

Frequently asked questions

Do I have to change both bushings?
Check the outer and inner bushings on both legs: they wear together. Replace all those that show bronze.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

BrandINNTECK

Reference SKTE43K

In stock52 Items

Specific References

Click on your bike to see all compatible parts.

Write your review

No customer reviews for the moment.
