INNTECK WP 35 mm Inner Fork Bushing for KTM SX 50, SX 65, HUSQVARNA TC 50, TC 65 and GAS GAS MC 50, MC 65 2002-2027

Name: INNTECK WP 35 mm Inner Fork Bushing for KTM SX 50, SX 65, HUSQVARNA TC 50, TC 65 and GAS GAS MC 50, MC 65 2002-2027
Brand: INNTECK
SKU: SKTE35M
Price: 10.9 EUR
Availability: InStock

Review (0)

€10.90

Tax Included

Disponible en nuestro proveedor, enviado en 10 a 15 días.

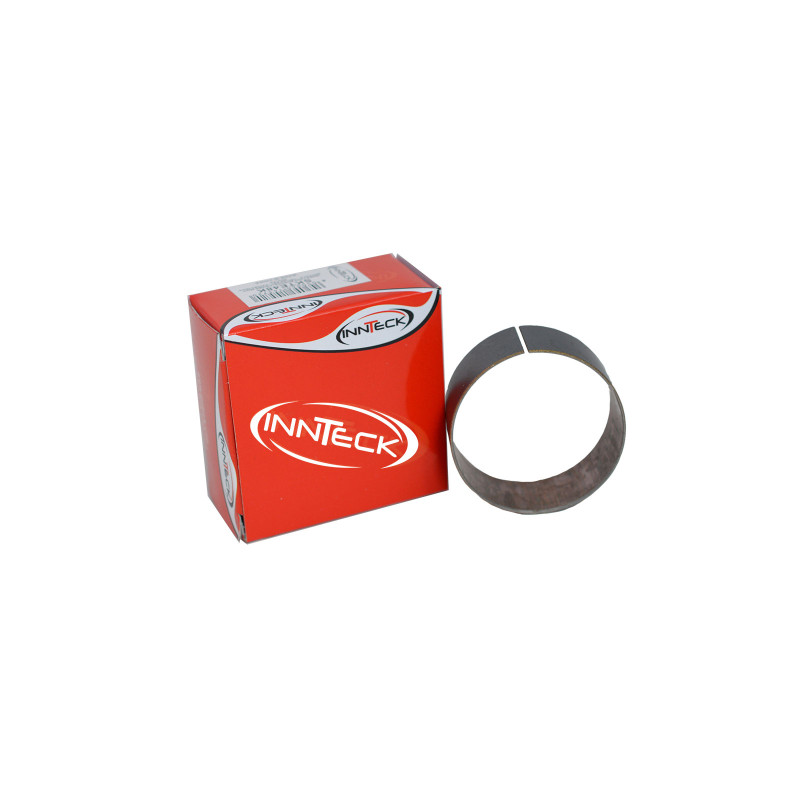

INNTECK WP 35 mm inner fork bushing for KTM SX 50, SX 65, HUSQVARNA TC 50, TC 65 and GAS GAS MC 50, MC 65 from 2002 to 2027.

On KTM SX 50, SX 65, HUSQVARNA TC 50, TC 65 and GAS GAS MC 50, MC 65 from 2002 to 2027, the INNTECK WP 35 mm SKTE35M inner fork bushing fits in place of the original part. The inner fork bushing (slide bushing) is fitted at the bottom of the inner tube: together with the outer fork bushing, it guides the sliding of the fork. Its PTFE (Teflon) coating reduces friction; once worn, the bronze shows through, the fork binds and the oil seals wear out faster.

Specifications

Brand: INNTECK
Manufacturer part number: SKTE35M
EAN code: 8050040145560
Slide bushing fitted at the bottom of the inner tube (PTFE-coated outside)

When to replace it?

Grey coating worn through: the copper or bronze shows on the bushing.
Play in the fork when you rock the bike back and forth with the front brake on.
Fork that binds at the start of its stroke, oil seals that leak again and again.

Check the bushings every time you replace the oil seals or change the fork oil. Replace them as soon as the bronze shows over more than a quarter of their surface.

Fitting tips

Disassemble the fork leg following the manual and separate the outer tube from the inner tube.
Spread the bushing slightly by hand at its split to lift it out of its groove, without scratching the tube.
Fit the new bushing in the groove, then install new oil seals.
Reset the fork oil level as per the manual.

Spare parts and items to plan

Fork oil seals : ATHENA
Fork oil : LIQUI MOLY 10W 500 ml
Fork dust seals : ATHENA P40FORK455203 · ATHENA P40FORK455182

Frequently asked questions

Do I have to change both bushings?
Check the outer and inner bushings on both legs: they wear together. Replace all those that show bronze.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

BrandINNTECK

Reference SKTE35M

In stock7 Items
