ATHENA KYB 48 mm Outer Fork Bushing for YAMAHA, TM RACING, HUSQVARNA, BETA, KAWASAKI, SWM, SUZUKI, HONDA and GAS GAS 2004-2027

Name: ATHENA KYB 48 mm Outer Fork Bushing for YAMAHA, TM RACING, HUSQVARNA, BETA, KAWASAKI, SWM, SUZUKI, HONDA and GAS GAS 2004-2027
Brand: ATHENA
SKU: S41TI48K
Price: 10.9 EUR
Availability: InStock

Review (0)

€10.90

Tax Included

Disponible en nuestro proveedor, enviado en 10 a 15 días.

ATHENA KYB 48 mm outer fork bushing for HUSQVARNA CR, TC, TE, WR 125, 250, 300, 310, 449, 450, 510, 511, BETA RR, RX 125, 250, 300, 350, 390, 430, 450, 480, TM RACING EN, MX 125, 144, 250, 300, YAMAHA WRF, YZ, YZF 125, 250, 450, KAWASAKI KLX, KX, KXF 125, 250, 450, GAS GAS EC, XC 200, 250, 300, SWM RS 125, 300, 340, 500, HONDA CRF 450 and SUZUKI RMZ 250 from 2004 to 2027.

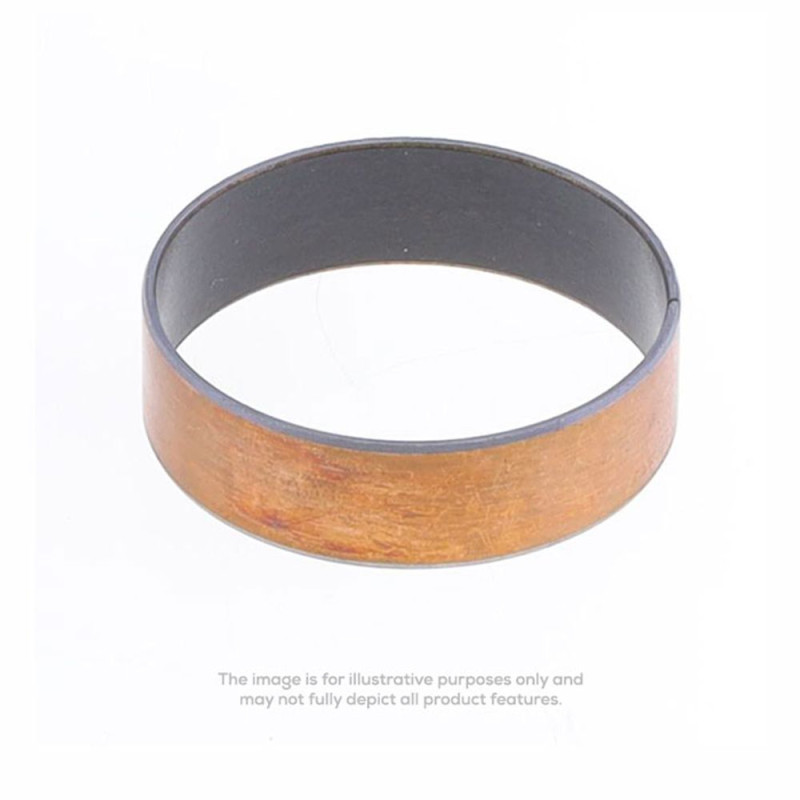

The ATHENA KYB 48 mm S41TI48K outer fork bushing is designed for HUSQVARNA CR 125, TC 250, TC 449, TC 450, TC 510, TC 511, TE 250, TE 310, TE 449, TE 450, TE 510, TE 511, WR 125, WR 250, WR 300, BETA RR 125, RR 250, RR 300, RR 350, RR 390, RR 430, RR 480, RX 250, RX 300, RX 350, RX 450, TM RACING EN 125, EN 144, EN 250, EN 300, MX 125, MX 144, MX 250, MX 300, YAMAHA WRF 250, WRF 450, YZ 125, YZ 250, YZF 250, YZF 450, KAWASAKI KLX 450, KX 125, KX 250, KXF 250, KXF 450, GAS GAS EC 250, EC 300, XC 200, XC 250, XC 300, SWM RS 125 R, RS 300 R, RS 340 S, RS 500 R, HONDA CRF 450 and SUZUKI RMZ 250 from 2004 to 2027. The outer fork bushing (guide bushing) is fitted at the top of the fork leg, under the oil seal: together with the inner fork bushing (slide bushing), it guides the sliding of the fork. Its PTFE (Teflon) coating reduces friction; once worn, the bronze shows through, the fork binds and the oil seals wear out faster.

Specifications

Brand: ATHENA
Manufacturer part number: S41TI48K
EAN code: 8050506054078
Guide bushing fitted in the outer tube (PTFE-coated inside)

When to replace it?

Grey coating worn through: the copper or bronze shows on the bushing.
Play in the fork when you rock the bike back and forth with the front brake on.
Fork that binds at the start of its stroke, oil seals that leak again and again.

Check the bushings every time you replace the oil seals or change the fork oil. Replace them as soon as the bronze shows over more than a quarter of their surface.

Fitting tips

Disassemble the fork leg following the manual and separate the outer tube from the inner tube.
Remove the old bushing without scratching its seat, and clean the seat.
Fit the new bushing with a suitable tool (or using the old bushing as a driver), then install new oil seals.
Reset the fork oil level as per the manual.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

Fork oil seals : ATHENA · SKF
Fork oil : LIQUI MOLY 10W 500 ml
Fork dust seals : ATHENA P40FORK455131 · ATHENA P40FORK455098

Frequently asked questions

Do I have to change both bushings?
Check the outer and inner bushings on both legs: they wear together. Replace all those that show bronze.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Reference S41TI48K

In stock99 Items

Specific References

Click on your bike to see all compatible parts.

Write your review

No customer reviews for the moment.
