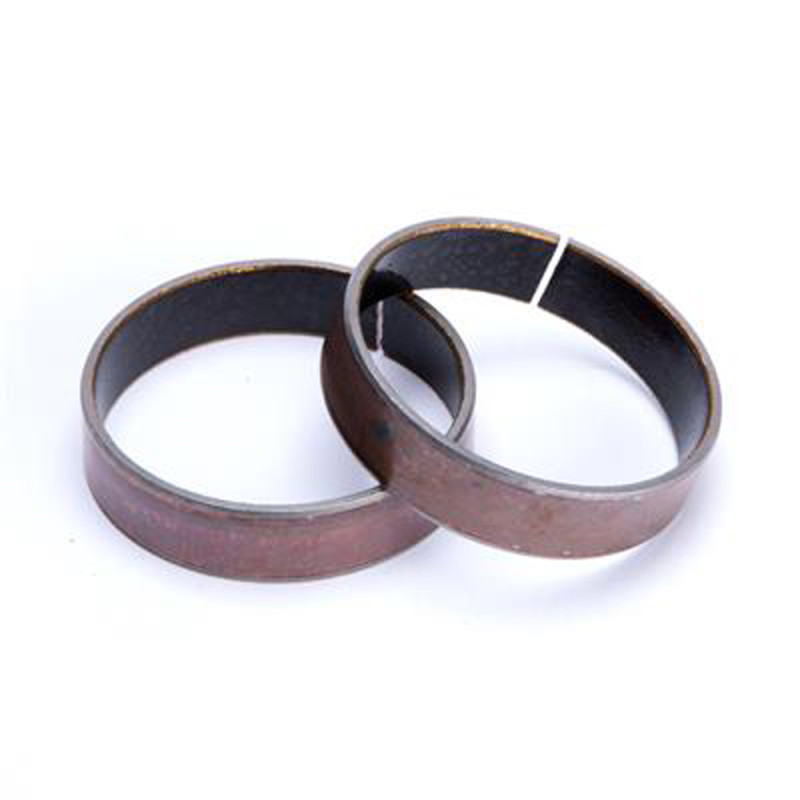

KYB Outer Fork Bushing (OEM) for YAMAHA, TM RACING, HUSQVARNA, KAWASAKI, BETA, SWM, SUZUKI, HONDA and GAS GAS 2002-2027

The KYB KYB-5104852 outer fork bushing is designed for HUSQVARNA CR 125, TC 250, TC 449, TC 450, TC 510, TC 511, TE 250, TE 310, TE 449, TE 450, TE 510, TE 511, WR 125, WR 250, WR 300, TM RACING EN 125, EN 144, EN 250, EN 300, MX 125, MX 144, MX 250, MX 300, YAMAHA WRF 250, WRF 450, YZ 125, YZ 250, YZF 250, YZF 450, KAWASAKI KLX 450, KX 125, KX 250, KXF 250, KXF 450, GAS GAS EC 250, EC 300, XC 200, XC 250, XC 300, BETA RR 250, RR 300, RR 350, RR 430, RR 480, SWM RS 125 R, RS 300 R, RS 340 S, RS 500 R, HONDA CRF 450 and SUZUKI RMZ 250 from 2002 to 2027. The outer fork bushing (guide bushing) is fitted at the top of the fork leg, under the oil seal: together with the inner fork bushing (slide bushing), it guides the sliding of the fork. Its PTFE (Teflon) coating reduces friction; once worn, the bronze shows through, the fork binds and the oil seals wear out faster.

Specifications

• Brand: KYB
• Manufacturer part number: KYB-5104852
• Guide bushing fitted in the outer tube (PTFE-coated inside)

When to replace it?

• Grey coating worn through: the copper or bronze shows on the bushing.
• Play in the fork when you rock the bike back and forth with the front brake on.
• Fork that binds at the start of its stroke, oil seals that leak again and again.

Check the bushings every time you replace the oil seals or change the fork oil. Replace them as soon as the bronze shows over more than a quarter of their surface.

Fitting tips

1. Disassemble the fork leg following the manual and separate the outer tube from the inner tube.
2. Remove the old bushing without scratching its seat, and clean the seat.
3. Fit the new bushing with a suitable tool (or using the old bushing as a driver), then install new oil seals.
4. Reset the fork oil level as per the manual.

Why KYB?

KYB, long known as Kayaba, was born in Japan in November 1919, when 21-year-old Shiro Kayaba opened his research centre. Now one of the world's leading hydraulics specialists, with more than 15,000 employees, the brand describes its Gifu North plant, opened in 1968, as the largest shock absorber factory in the world.

Spare parts and items to plan

• Fork oil seals : ATHENA · SKF
• Fork oil : LIQUI MOLY 10W 500 ml
• Fork dust seals : ATHENA P40FORK455131 · ATHENA P40FORK455098

Frequently asked questions

Do I have to change both bushings?
Check the outer and inner bushings on both legs: they wear together. Replace all those that show bronze.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
BETA RR 250 2024
BETA RR 250 2023
BETA RR 250 2022
BETA RR 250 2021
BETA RR 250 2020
BETA RR 300 2024
BETA RR 300 2023
BETA RR 300 2022
BETA RR 300 2021
BETA RR 300 2020
BETA RR 350 2024
BETA RR 350 2023
BETA RR 350 2022
BETA RR 350 2021
BETA RR 350 2020
BETA RR 430 2024
BETA RR 430 2023
BETA RR 430 2022
BETA RR 430 2021
BETA RR 430 2020
BETA RR 480 2024
BETA RR 480 2023
BETA RR 480 2022
BETA RR 480 2021
BETA RR 480 2020
GAS GAS EC 250 2019
GAS GAS EC 250 2018
GAS GAS EC 300 2019
GAS GAS EC 300 2018
GAS GAS XC 200 2019
GAS GAS XC 250 2019
GAS GAS XC 300 2019
HONDA CRF 450 2016
HONDA CRF 450 2015
HONDA CRF 450 2014
HONDA CRF 450 2013
HONDA CRF 450 2012
HONDA CRF 450 2011
HONDA CRF 450 2010
HONDA CRF 450 2009
HUSQVARNA CR 125 2013
HUSQVARNA CR 125 2012
HUSQVARNA CR 125 2011
HUSQVARNA CR 125 2010
HUSQVARNA TC 250 2013
HUSQVARNA TC 250 2012
HUSQVARNA TC 250 2011
HUSQVARNA TC 250 2010
HUSQVARNA TC 449 2013
HUSQVARNA TC 449 2012
HUSQVARNA TC 449 2011
HUSQVARNA TC 450 2010
HUSQVARNA TC 510 2010
HUSQVARNA TC 511 2013
HUSQVARNA TC 511 2012
HUSQVARNA TC 511 2011
HUSQVARNA TC 511 2010
HUSQVARNA TE 250 2013
HUSQVARNA TE 250 2012
HUSQVARNA TE 250 2011
HUSQVARNA TE 250 2010
HUSQVARNA TE 310 2013
HUSQVARNA TE 310 2012
HUSQVARNA TE 310 2011
HUSQVARNA TE 310 2010
HUSQVARNA TE 449 2013
HUSQVARNA TE 449 2012
HUSQVARNA TE 449 2011
HUSQVARNA TE 450 2010
HUSQVARNA TE 510 2010
HUSQVARNA TE 511 2013
HUSQVARNA TE 511 2012
HUSQVARNA TE 511 2011
HUSQVARNA WR 125 2013
HUSQVARNA WR 125 2012
HUSQVARNA WR 125 2011
HUSQVARNA WR 250 2013
HUSQVARNA WR 250 2012
HUSQVARNA WR 250 2011
HUSQVARNA WR 250 2010
HUSQVARNA WR 300 2013
HUSQVARNA WR 300 2012
HUSQVARNA WR 300 2011
HUSQVARNA WR 300 2010
KAWASAKI KLX 450 2012
KAWASAKI KLX 450 2011
KAWASAKI KLX 450 2010
KAWASAKI KLX 450 2009
KAWASAKI KLX 450 2008
KAWASAKI KLX 450 2007
KAWASAKI KX 125 2008
KAWASAKI KX 125 2007
KAWASAKI KX 125 2006
KAWASAKI KX 125 2005
KAWASAKI KX 125 2004
KAWASAKI KX 125 2003
KAWASAKI KX 125 2002
KAWASAKI KX 250 2008
KAWASAKI KX 250 2007
KAWASAKI KX 250 2006
KAWASAKI KX 250 2005
KAWASAKI KX 250 2004
KAWASAKI KX 250 2003
KAWASAKI KX 250 2002
KAWASAKI KXF 250 2023
KAWASAKI KXF 250 2022
KAWASAKI KXF 250 2021
KAWASAKI KXF 250 2020
KAWASAKI KXF 250 2005
KAWASAKI KXF 250 2004
KAWASAKI KXF 450 2014
KAWASAKI KXF 450 2013
KAWASAKI KXF 450 2012
KAWASAKI KXF 450 2011
KAWASAKI KXF 450 2010
KAWASAKI KXF 450 2009
KAWASAKI KXF 450 2008
KAWASAKI KXF 450 2007
KAWASAKI KXF 450 2006
SUZUKI RMZ 250 2027
SUZUKI RMZ 250 2026
SUZUKI RMZ 250 2025
SUZUKI RMZ 250 2024
SUZUKI RMZ 250 2023
SUZUKI RMZ 250 2022
SUZUKI RMZ 250 2021
SUZUKI RMZ 250 2020
SUZUKI RMZ 250 2019
SUZUKI RMZ 250 2018
SUZUKI RMZ 250 2017
SUZUKI RMZ 250 2016
SUZUKI RMZ 250 2006
SUZUKI RMZ 250 2005
SUZUKI RMZ 250 2004
SWM RS 125 R 2020
SWM RS 125 R 2019
SWM RS 125 R 2018
SWM RS 125 R 2017
SWM RS 125 R 2016
SWM RS 300 R 2020
SWM RS 300 R 2019
SWM RS 300 R 2018
SWM RS 300 R 2017
SWM RS 300 R 2016
SWM RS 340 S 2020
SWM RS 340 S 2019
SWM RS 340 S 2018
SWM RS 340 S 2017
SWM RS 340 S 2016
SWM RS 500 R 2020
SWM RS 500 R 2019
SWM RS 500 R 2018
SWM RS 500 R 2017
SWM RS 500 R 2016
TM RACING EN 125 2022
TM RACING EN 125 2021
TM RACING EN 125 2020
TM RACING EN 125 2019
TM RACING EN 125 2018
TM RACING EN 125 2017
TM RACING EN 125 2016
TM RACING EN 125 2015
TM RACING EN 125 2014
TM RACING EN 125 2013
TM RACING EN 144 2022
TM RACING EN 144 2021
TM RACING EN 144 2020
TM RACING EN 144 2019
TM RACING EN 144 2018
TM RACING EN 144 2017
TM RACING EN 144 2016
TM RACING EN 144 2015
TM RACING EN 144 2014
TM RACING EN 144 2013
TM RACING EN 250 2022
TM RACING EN 250 2021
TM RACING EN 250 2020
TM RACING EN 250 2019
TM RACING EN 250 2018
TM RACING EN 250 2017
TM RACING EN 250 2016
TM RACING EN 250 2015
TM RACING EN 250 2014
TM RACING EN 250 2013
TM RACING EN 300 2022
TM RACING EN 300 2021
TM RACING EN 300 2020
TM RACING EN 300 2019
TM RACING EN 300 2018
TM RACING EN 300 2017
TM RACING EN 300 2016
TM RACING EN 300 2015
TM RACING EN 300 2014
TM RACING EN 300 2013
TM RACING MX 125 2022
TM RACING MX 125 2021
TM RACING MX 125 2020
TM RACING MX 125 2019
TM RACING MX 125 2018
TM RACING MX 125 2017
TM RACING MX 125 2016
TM RACING MX 125 2015
TM RACING MX 125 2014
TM RACING MX 125 2013
TM RACING MX 144 2022
TM RACING MX 144 2021
TM RACING MX 144 2020
TM RACING MX 144 2019
TM RACING MX 144 2018
TM RACING MX 144 2017
TM RACING MX 144 2016
TM RACING MX 144 2015
TM RACING MX 144 2014
TM RACING MX 144 2013
TM RACING MX 250 2022
TM RACING MX 250 2021
TM RACING MX 250 2020
TM RACING MX 250 2019
TM RACING MX 250 2018
TM RACING MX 250 2017
TM RACING MX 250 2016
TM RACING MX 250 2015
TM RACING MX 250 2014
TM RACING MX 250 2013
TM RACING MX 300 2022
TM RACING MX 300 2021
TM RACING MX 300 2020
TM RACING MX 300 2019
TM RACING MX 300 2018
TM RACING MX 300 2017
TM RACING MX 300 2016
TM RACING MX 300 2015
TM RACING MX 300 2014
TM RACING MX 300 2013
YAMAHA WRF 250 2020
YAMAHA WRF 250 2019
YAMAHA WRF 250 2018
YAMAHA WRF 250 2017
YAMAHA WRF 250 2016
YAMAHA WRF 250 2015
YAMAHA WRF 250 2014
YAMAHA WRF 250 2013
YAMAHA WRF 250 2012
YAMAHA WRF 250 2011
YAMAHA WRF 250 2010
YAMAHA WRF 250 2009
YAMAHA WRF 250 2008
YAMAHA WRF 250 2007
YAMAHA WRF 250 2006
YAMAHA WRF 250 2005
YAMAHA WRF 450 2023
YAMAHA WRF 450 2022
YAMAHA WRF 450 2021
YAMAHA WRF 450 2020
YAMAHA WRF 450 2019
YAMAHA WRF 450 2018
YAMAHA WRF 450 2017
YAMAHA WRF 450 2016
YAMAHA WRF 450 2015
YAMAHA WRF 450 2014
YAMAHA WRF 450 2013
YAMAHA WRF 450 2012
YAMAHA WRF 450 2011
YAMAHA WRF 450 2010
YAMAHA WRF 450 2009
YAMAHA WRF 450 2008
YAMAHA WRF 450 2007
YAMAHA WRF 450 2006
YAMAHA WRF 450 2005
YAMAHA YZ 125 2026
YAMAHA YZ 125 2025
YAMAHA YZ 125 2024
YAMAHA YZ 125 2023
YAMAHA YZ 125 2022
YAMAHA YZ 125 2021
YAMAHA YZ 125 2020
YAMAHA YZ 125 2019
YAMAHA YZ 125 2018
YAMAHA YZ 125 2017
YAMAHA YZ 125 2016
YAMAHA YZ 125 2015
YAMAHA YZ 125 2014
YAMAHA YZ 125 2013
YAMAHA YZ 125 2012
YAMAHA YZ 125 2011
YAMAHA YZ 125 2010
YAMAHA YZ 125 2009
YAMAHA YZ 125 2008
YAMAHA YZ 125 2007
YAMAHA YZ 125 2006
YAMAHA YZ 125 2005
YAMAHA YZ 125 2004
YAMAHA YZ 250 2026
YAMAHA YZ 250 2025
YAMAHA YZ 250 2024
YAMAHA YZ 250 2023
YAMAHA YZ 250 2022
YAMAHA YZ 250 2021
YAMAHA YZ 250 2020
YAMAHA YZ 250 2019
YAMAHA YZ 250 2018
YAMAHA YZ 250 2017
YAMAHA YZ 250 2016
YAMAHA YZ 250 2015
YAMAHA YZ 250 2014
YAMAHA YZ 250 2013
YAMAHA YZ 250 2012
YAMAHA YZ 250 2011
YAMAHA YZ 250 2010
YAMAHA YZ 250 2009
YAMAHA YZ 250 2008
YAMAHA YZ 250 2007
YAMAHA YZ 250 2006
YAMAHA YZ 250 2005
YAMAHA YZ 250 2004
YAMAHA YZF 250 2024
YAMAHA YZF 250 2023
YAMAHA YZF 250 2022
YAMAHA YZF 250 2021
YAMAHA YZF 250 2020
YAMAHA YZF 250 2019
YAMAHA YZF 250 2018
YAMAHA YZF 250 2017
YAMAHA YZF 250 2016
YAMAHA YZF 250 2015
YAMAHA YZF 250 2014
YAMAHA YZF 250 2013
YAMAHA YZF 250 2012
YAMAHA YZF 250 2011
YAMAHA YZF 250 2010
YAMAHA YZF 250 2009
YAMAHA YZF 250 2008
YAMAHA YZF 250 2007
YAMAHA YZF 250 2006
YAMAHA YZF 250 2005
YAMAHA YZF 250 2004
YAMAHA YZF 450 2025
YAMAHA YZF 450 2024
YAMAHA YZF 450 2023
YAMAHA YZF 450 2022
YAMAHA YZF 450 2021
YAMAHA YZF 450 2020
YAMAHA YZF 450 2019
YAMAHA YZF 450 2018
YAMAHA YZF 450 2017
YAMAHA YZF 450 2016
YAMAHA YZF 450 2015
YAMAHA YZF 450 2014
YAMAHA YZF 450 2013
YAMAHA YZF 450 2012
YAMAHA YZF 450 2011
YAMAHA YZF 450 2010
YAMAHA YZF 450 2009
YAMAHA YZF 450 2008
YAMAHA YZF 450 2007
YAMAHA YZF 450 2006
YAMAHA YZF 450 2005
YAMAHA YZF 450 2004
