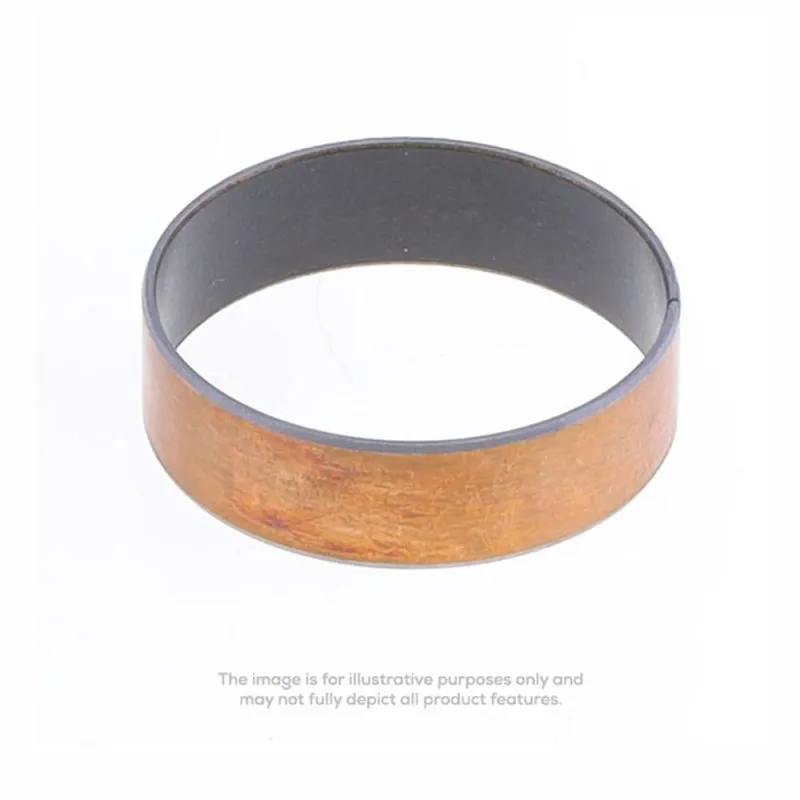

ATHENA SHOWA 47 mm Outer Fork Bushing for HONDA, SUZUKI and KAWASAKI 1997-2012

The ATHENA SHOWA 47 mm S41TI47S outer fork bushing is designed for HONDA CR 250, CR 500, CRF 250, CRF 450, SUZUKI RM 125, RM 250, RMZ 250, RMZ 450 and KAWASAKI KXF 250 from 1997 to 2012. The outer fork bushing (guide bushing) is fitted at the top of the fork leg, under the oil seal: together with the inner fork bushing (slide bushing), it guides the sliding of the fork. Its PTFE (Teflon) coating reduces friction; once worn, the bronze shows through, the fork binds and the oil seals wear out faster.

Specifications

• Brand: ATHENA
• Manufacturer part number: S41TI47S
• EAN code: 8050506054061
• Guide bushing fitted in the outer tube (PTFE-coated inside)

When to replace it?

• Grey coating worn through: the copper or bronze shows on the bushing.
• Play in the fork when you rock the bike back and forth with the front brake on.
• Fork that binds at the start of its stroke, oil seals that leak again and again.

Check the bushings every time you replace the oil seals or change the fork oil. Replace them as soon as the bronze shows over more than a quarter of their surface.

Fitting tips

1. Disassemble the fork leg following the manual and separate the outer tube from the inner tube.
2. Remove the old bushing without scratching its seat, and clean the seat.
3. Fit the new bushing with a suitable tool (or using the old bushing as a driver), then install new oil seals.
4. Reset the fork oil level as per the manual.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Fork oil seals : ATHENA P40FORK455216 · ATHENA P40FORK455076
• Fork oil : LIQUI MOLY 10W 500 ml
• Fork dust seals : ATHENA P40FORK455131 · ATHENA P40FORK455096

Frequently asked questions

Do I have to change both bushings?
Check the outer and inner bushings on both legs: they wear together. Replace all those that show bronze.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA CR 250 2007
HONDA CR 250 2006
HONDA CR 250 2005
HONDA CR 250 2004
HONDA CR 250 2003
HONDA CR 250 2002
HONDA CR 250 2001
HONDA CR 250 2000
HONDA CR 250 1999
HONDA CR 250 1998
HONDA CR 250 1997
HONDA CR 500 2001
HONDA CR 500 2000
HONDA CR 500 1999
HONDA CR 500 1998
HONDA CR 500 1997
HONDA CRF 250 2009
HONDA CRF 250 2008
HONDA CRF 250 2007
HONDA CRF 250 2006
HONDA CRF 250 2005
HONDA CRF 250 2004
HONDA CRF 450 2008
HONDA CRF 450 2007
HONDA CRF 450 2006
HONDA CRF 450 2005
HONDA CRF 450 2004
HONDA CRF 450 2003
HONDA CRF 450 2002
KAWASAKI KXF 250 2012
KAWASAKI KXF 250 2011
KAWASAKI KXF 250 2010
KAWASAKI KXF 250 2009
KAWASAKI KXF 250 2008
KAWASAKI KXF 250 2007
KAWASAKI KXF 250 2006
SUZUKI RM 125 2008
SUZUKI RM 125 2007
SUZUKI RM 125 2006
SUZUKI RM 125 2005
SUZUKI RM 125 2004
SUZUKI RM 125 2003
SUZUKI RM 125 2002
SUZUKI RM 125 2001
SUZUKI RM 250 2008
SUZUKI RM 250 2007
SUZUKI RM 250 2006
SUZUKI RM 250 2005
SUZUKI RM 250 2004
SUZUKI RMZ 250 2012
SUZUKI RMZ 250 2011
SUZUKI RMZ 250 2010
SUZUKI RMZ 250 2009
SUZUKI RMZ 250 2008
SUZUKI RMZ 250 2007
SUZUKI RMZ 450 2012
SUZUKI RMZ 450 2011
SUZUKI RMZ 450 2010
SUZUKI RMZ 450 2009
SUZUKI RMZ 450 2008
SUZUKI RMZ 450 2007
SUZUKI RMZ 450 2006
SUZUKI RMZ 450 2005
SUZUKI RMZ 450 2004
