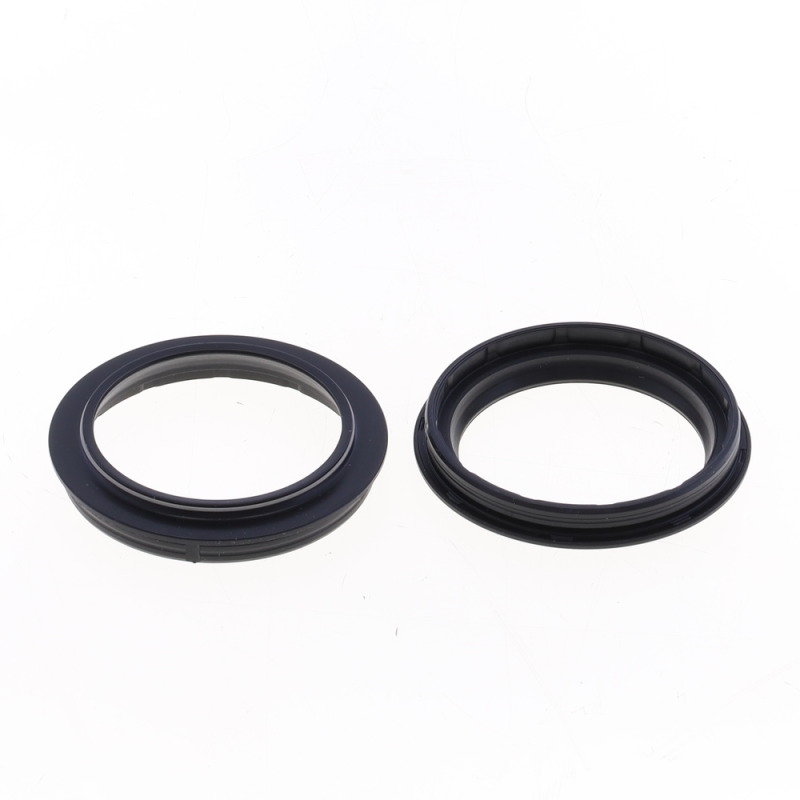

ATHENA NOK Fork Dust Seal Kit 47x58.3x6/10.5 mm for HONDA, SUZUKI and KAWASAKI 1997-2012

The ATHENA 47x58.3x6/10.5 mm NOK P40FORK455096 fork dust seal kit is designed for HONDA CR 250, CRF 250, CRF 450, SUZUKI RM 125, RMZ 250, RMZ 450 and KAWASAKI KXF 250 from 1997 to 2012. The dust seal (or wiper) fits above the oil seal, at the top of the fork leg. On every compression stroke it scrapes the mud and dust off the inner tube, which protects the oil seal.

Specifications

• Brand: ATHENA
• Manufacturer part number: P40FORK455096
• EAN code: 8055681308084
• Weight: 50 g

When to replace it?

• Dust seal cracked, hardened or lifting out of the fork leg.
• Mud or sand under the dust seal: the oil seal is at risk.
• Oil seals being replaced: the dust seals are changed at the same time.

Replace the dust seals whenever you replace the oil seals, and as soon as they are cracked. Check the size (in the name) or the original part number.

Fitting tips

1. Lift out the old dust seal with a plastic tool, without scratching the inner tube.
2. Clean the groove in the fork leg and the tube.
3. Grease the lip lightly and press the new one in flat, by hand.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Fork oil seals : ATHENA P40FORK455216 · ATHENA P40FORK455076
• Fork oil : LIQUI MOLY 10W 500 ml

Frequently asked questions

Is a new dust seal enough to stop a leak?
No: the leak comes from the oil seal. The dust seal only protects it from dirt.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA CR 250 2007
HONDA CR 250 2006
HONDA CR 250 2005
HONDA CR 250 2004
HONDA CR 250 2003
HONDA CR 250 2002
HONDA CR 250 2001
HONDA CR 250 2000
HONDA CR 250 1999
HONDA CR 250 1998
HONDA CR 250 1997
HONDA CRF 250 2009
HONDA CRF 250 2008
HONDA CRF 250 2007
HONDA CRF 250 2006
HONDA CRF 250 2005
HONDA CRF 250 2004
HONDA CRF 450 2008
HONDA CRF 450 2007
HONDA CRF 450 2006
HONDA CRF 450 2005
HONDA CRF 450 2004
HONDA CRF 450 2003
HONDA CRF 450 2002
KAWASAKI KXF 250 2012
KAWASAKI KXF 250 2011
KAWASAKI KXF 250 2010
KAWASAKI KXF 250 2009
KAWASAKI KXF 250 2008
KAWASAKI KXF 250 2007
KAWASAKI KXF 250 2006
SUZUKI RM 125 2008
SUZUKI RM 125 2007
SUZUKI RM 125 2006
SUZUKI RM 125 2005
SUZUKI RM 125 2004
SUZUKI RM 125 2003
SUZUKI RM 125 2002
SUZUKI RM 125 2001
SUZUKI RMZ 250 2012
SUZUKI RMZ 250 2011
SUZUKI RMZ 250 2010
SUZUKI RMZ 250 2009
SUZUKI RMZ 250 2008
SUZUKI RMZ 250 2007
SUZUKI RMZ 450 2012
SUZUKI RMZ 450 2009
SUZUKI RMZ 450 2008
SUZUKI RMZ 450 2007
SUZUKI RMZ 450 2006
SUZUKI RMZ 450 2005
