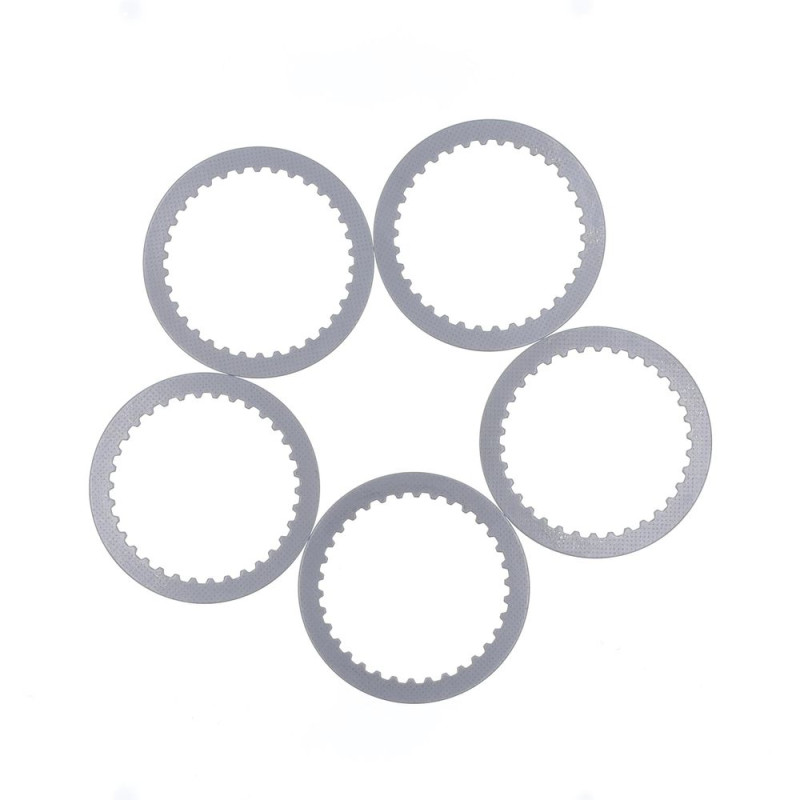

ATHENA Clutch Steel Plate Kit for KAWASAKI KX 80, KX 85, KX 100 and SUZUKI RM 100 1998-2020

On KAWASAKI KX 80, KX 85, KX 100 and SUZUKI RM 100 from 1998 to 2020, the ATHENA P40240031 clutch steel plate kit fits in place of the original part. The steel plates, made of steel or aluminium depending on the model, are the surface the friction plates grip against. Warped or glazed, they stop the clutch from working properly, even with new linings.

Specifications

• Brand: ATHENA
• Manufacturer part number: P40240031
• EAN code: 8052780271684
• Weight: 210 g
• Engine: 2-stroke

When to replace it?

• Clutch that drags or judders, neutral hard to find with the engine hot.
• Plates blued, glazed or marked at the tabs.
• Warpage out of tolerance, measured with a feeler gauge on a surface plate (or a sheet of glass).

Every time you replace the friction plates, if the steel plates are warped or blued, and after a bad bout of clutch slip.

Fitting tips

1. Oil the plates before fitting them.
2. Alternate friction plates and steel plates in the original order, without leaving one out.
3. Check the clutch springs and tighten to the manufacturer's torque.
4. Close up with a new clutch cover gasket and fresh gearbox oil.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Clutch plates : PROX 85 L · ATHENA
• Clutch springs : PROX · BARNETT 85 L
• Clutch cover gasket : MOOSE · ATHENA
• Gearbox oil : LIQUI MOLY 10W30 1 L · LIQUI MOLY 80W 500 ml

Frequently asked questions

Should the friction plates be replaced at the same time?
If they're close to the minimum thickness, yes: new friction plates and new steel plates give you a clutch that's as good as new.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 80 2000
KAWASAKI KX 80 1999
KAWASAKI KX 80 1998
KAWASAKI KX 85 2020
KAWASAKI KX 85 2019
KAWASAKI KX 85 2018
KAWASAKI KX 85 2017
KAWASAKI KX 85 2016
KAWASAKI KX 85 2015
KAWASAKI KX 85 2014
KAWASAKI KX 85 2013
KAWASAKI KX 85 2012
KAWASAKI KX 85 2011
KAWASAKI KX 85 2010
KAWASAKI KX 85 2009
KAWASAKI KX 85 2008
KAWASAKI KX 85 2007
KAWASAKI KX 85 2006
KAWASAKI KX 85 2005
KAWASAKI KX 85 2004
KAWASAKI KX 85 2003
KAWASAKI KX 85 2002
KAWASAKI KX 85 2001
KAWASAKI KX 100 2014
KAWASAKI KX 100 2013
KAWASAKI KX 100 2012
KAWASAKI KX 100 2011
KAWASAKI KX 100 2010
KAWASAKI KX 100 2009
KAWASAKI KX 100 2008
KAWASAKI KX 100 2007
KAWASAKI KX 100 2006
KAWASAKI KX 100 2005
KAWASAKI KX 100 2004
KAWASAKI KX 100 2003
KAWASAKI KX 100 2002
KAWASAKI KX 100 2001
KAWASAKI KX 100 2000
KAWASAKI KX 100 1999
KAWASAKI KX 100 1998
SUZUKI RM 100 2003
