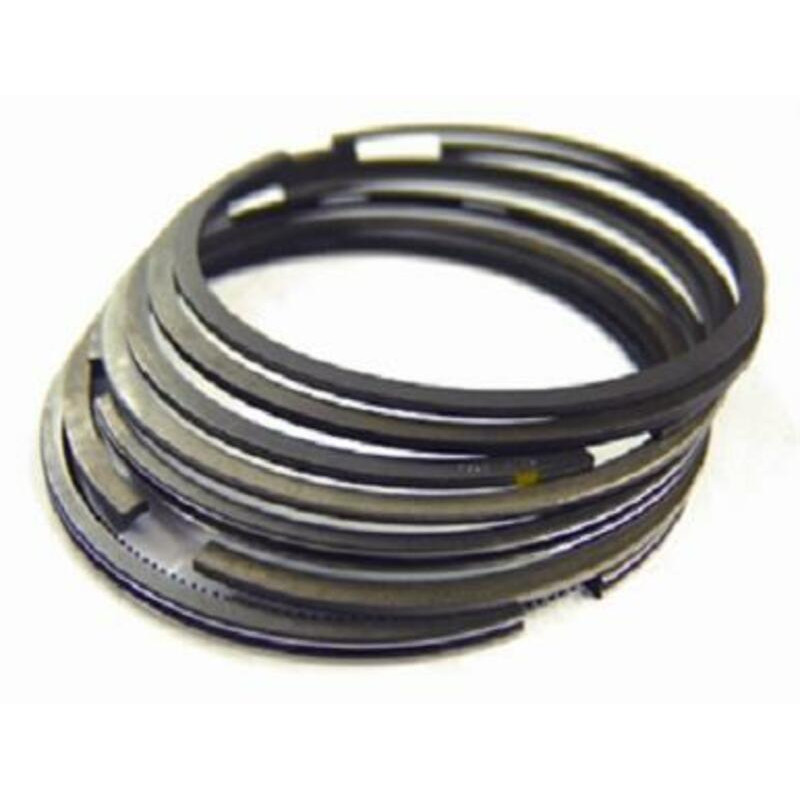

TECNIUM Piston Ring Set Ø49.5mm for SUZUKI RM 80, TS 80 ER, TS 80 X 1980-1987

TECNIUM offers this piston ring set for SUZUKI RM 80, TS 80 ER, TS 80 X 1980-1987. Rings are thin steel bands sitting in the piston grooves. They press against the cylinder wall to hold compression and scrape oil.

Why replace the rings?

The benefits:

• Regain compression and power.
• Reduce oil consumption and smoke.
• A cheap fix when piston and cylinder are still within spec.

When should you replace the piston rings on your SUZUKI TS 80 X?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

Recommended hours for a top-end rebuild (manufacturer recommendation for the Suzuki RM 80 / RM 85):

• Racing: every 18 h (about 9 races).
• Leisure: no Suzuki figure; Cross-Mania guideline: compression check at around 36 h.

Specifications and fitting tips

• Manufacturer part number: 12140-25631-050

Cross-Mania tip: Check the ring end gap in the cylinder before fitting and respect the fitting direction (mark facing up).

Also needed with this part

• Piston : WOSSNER · WISECO
• Top-end gasket kit : VINTCO · MOOSE
• 2-stroke oil : LIQUI MOLY 1 L 3065 · LIQUI MOLY 1 L 3063

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SUZUKI RM 80 1982
SUZUKI RM 80 1981
SUZUKI RM 80 1980
SUZUKI TS 80 ER 1983
SUZUKI TS 80 ER 1982
SUZUKI TS 80 ER 1981
SUZUKI TS 80 X 1987
SUZUKI TS 80 X 1986
SUZUKI TS 80 X 1985
SUZUKI TS 80 X 1984
