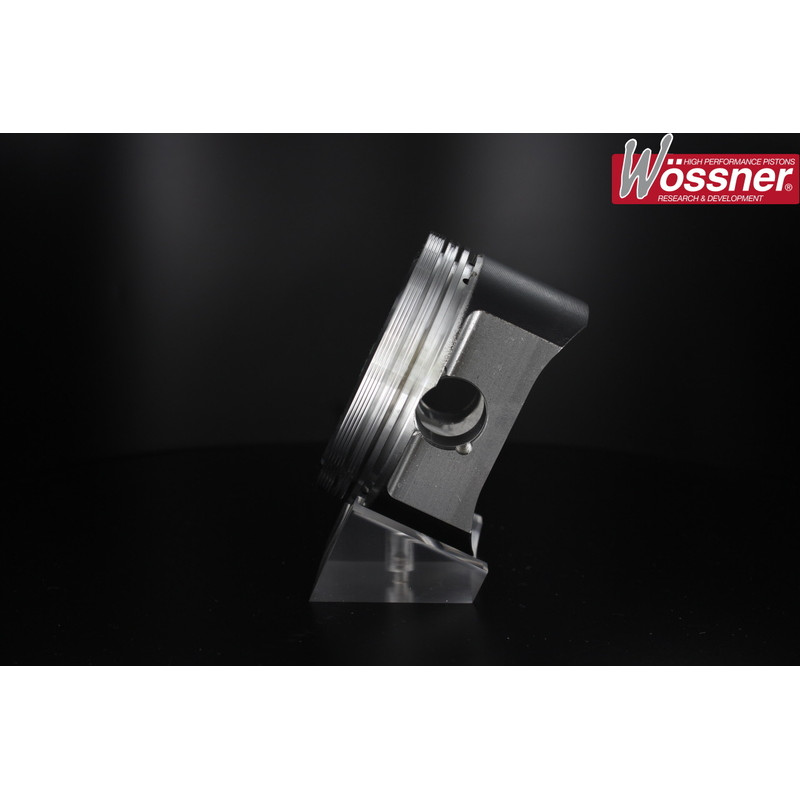

Wössner Pro Series Forged Piston for HONDA TRX 400 EX SPORTRAX 2WD, XR 400 1996-2008

WOSSNER offers this piston kit for HONDA TRX 400 EX SPORTRAX 2WD, XR 400 1996-2008. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.

Why choose a forged piston?

Instead of simply being cast, a forged piston is hot-pressed under very high pressure and then machined: its metal is denser and free of air pockets.

• Stronger when hot: it copes better with high revs, overheating and detonation.
• Lighter for the same strength: less stress on the connecting rod and bearings.
• Good to know: depending on the alloy, it expands a little more and is fitted with more clearance; slight noise when cold is normal.
• Why does it cost more? Forging tools, full machining and surface treatments cost more than simple casting.

Why choose WOSSNER?

Wössner has forged its own pistons since 1994: Molykote-coated skirt to reduce friction and ease running-in, kit supplied complete with rings, pin and clips.

When should you replace the piston on your HONDA TRX 400 EX SPORTRAX 2WD?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 50 h in hard use and every 100 h for leisure.

Specifications and fitting tips

• Material: Aluminium
• Rings Quantity: 3
• Stroke: 4T
• Forged piston
• Anti friction coated skirt

Available in several sizes: choose the one that matches your cylinder (stamped size or measured bore).

Cross-Mania tip: Measure the cylinder bore before ordering: the piston must match your cylinder size. Follow the manufacturer's break-in procedure and replace the top-end gaskets at the same time.

Also needed with this part

• Top-end gasket kit : PROX
• Spark plug : see the selection
• 4-stroke engine oil : MOTUL 10W50 · LIQUI MOLY 10W40 1 L
• Air filter : PROX 650 L

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA TRX 400 EX SPORTRAX 2WD 2008
HONDA TRX 400 EX SPORTRAX 2WD 2007
HONDA TRX 400 EX SPORTRAX 2WD 2006
HONDA TRX 400 EX SPORTRAX 2WD 2005
HONDA TRX 400 EX SPORTRAX 2WD 2004
HONDA TRX 400 EX SPORTRAX 2WD 2003
HONDA TRX 400 EX SPORTRAX 2WD 2002
HONDA TRX 400 EX SPORTRAX 2WD 2001
HONDA TRX 400 EX SPORTRAX 2WD 2000
HONDA TRX 400 EX SPORTRAX 2WD 1999
HONDA XR 400 2004
HONDA XR 400 2003
HONDA XR 400 2002
HONDA XR 400 2001
HONDA XR 400 2000
HONDA XR 400 1999
HONDA XR 400 1998
HONDA XR 400 1997
HONDA XR 400 1996
