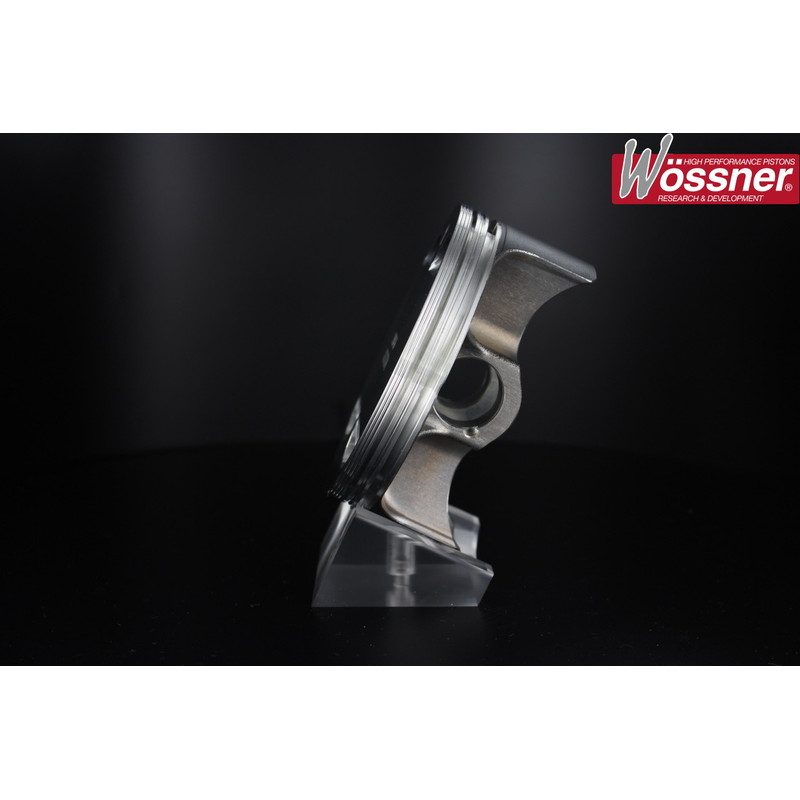

Wössner Forged Piston for HUSABERG FC 501, FC 600, FE 501, FE 501 S, FE 600 1995-2005

WOSSNER offers this piston kit for HUSABERG FC 501, FC 600, FE 501, FE 501 S, FE 600 1995-2005. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.

Why choose a forged piston?

Instead of simply being cast, a forged piston is hot-pressed under very high pressure and then machined: its metal is denser and free of air pockets.

• Stronger when hot: it copes better with high revs, overheating and detonation.
• Lighter for the same strength: less stress on the connecting rod and bearings.
• Good to know: depending on the alloy, it expands a little more and is fitted with more clearance; slight noise when cold is normal.
• Why does it cost more? Forging tools, full machining and surface treatments cost more than simple casting.

Why choose WOSSNER?

Wössner has forged its own pistons since 1994: Molykote-coated skirt to reduce friction and ease running-in, kit supplied complete with rings, pin and clips.

When should you replace the piston on your HUSABERG FE 501?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 30 h in hard use and every 60 h for leisure.

Specifications and fitting tips

• Material: Aluminium
• Specificity: Double Bridge Forging
• Piston compression: Standard
• Rings Quantity: 2
• Stroke: 4T
• Forged piston

Available in several sizes: choose the one that matches your cylinder (stamped size or measured bore). Diameters: A = 94.95 mm, B = 94.96 mm.

Cross-Mania tip: Measure the cylinder bore before ordering: the piston must match your cylinder size. Follow the manufacturer's break-in procedure and replace the top-end gaskets at the same time.

Also needed with this part

• Top-end gasket kit : ATHENA · CENTAURO
• Spark plug : NGK 4218 · NGK 4339
• 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50
• Air filter : TECNIUM · TWIN AIR

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HUSABERG FC 501 2000
HUSABERG FC 501 1999
HUSABERG FC 501 1998
HUSABERG FC 501 1997
HUSABERG FC 501 1996
HUSABERG FC 501 1995
HUSABERG FC 600 2000
HUSABERG FC 600 1999
HUSABERG FC 600 1998
HUSABERG FC 600 1997
HUSABERG FC 600 1996
HUSABERG FC 600 1995
HUSABERG FE 501 2004
HUSABERG FE 501 2003
HUSABERG FE 501 2002
HUSABERG FE 501 2001
HUSABERG FE 501 2000
HUSABERG FE 501 1999
HUSABERG FE 501 1998
HUSABERG FE 501 1997
HUSABERG FE 501 1996
HUSABERG FE 501 1995
HUSABERG FE 501 S 2005
HUSABERG FE 600 2000
HUSABERG FE 600 1999
HUSABERG FE 600 1998
HUSABERG FE 600 1997
HUSABERG FE 600 1996
HUSABERG FE 600 1995
