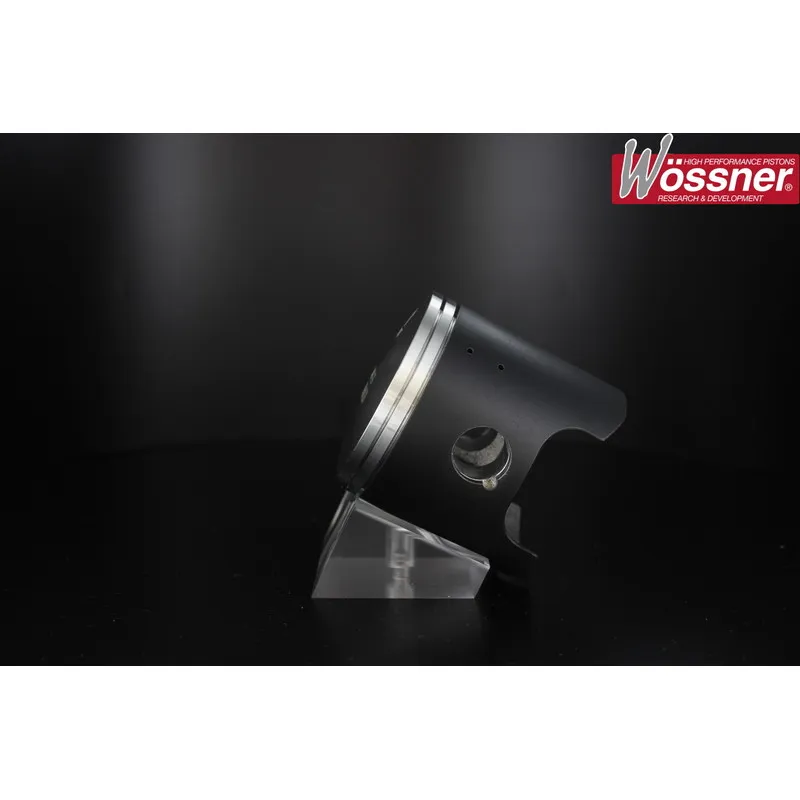

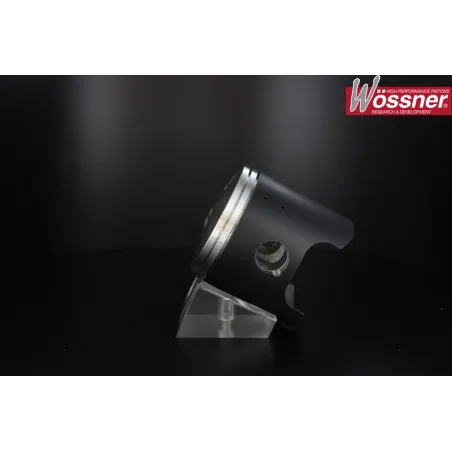

Wössner Forged Piston for KAWASAKI KDX 200 1986-2006

WOSSNER offers this piston kit for KAWASAKI KDX 200 1986-2006. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.

Why choose a forged piston?

Instead of simply being cast, a forged piston is hot-pressed under very high pressure and then machined: its metal is denser and free of air pockets.

• Stronger when hot: it copes better with high revs, overheating and detonation.
• Lighter for the same strength: less stress on the connecting rod and bearings.
• Good to know: depending on the alloy, it expands a little more and is fitted with more clearance; slight noise when cold is normal.
• Why does it cost more? Forging tools, full machining and surface treatments cost more than simple casting.

Why choose WOSSNER?

Wössner has forged its own pistons since 1994: Molykote-coated skirt to reduce friction and ease running-in, kit supplied complete with rings, pin and clips.

When should you replace the piston on your KAWASAKI KDX 200?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 20 h in hard use and every 40 h for leisure.

Specifications and fitting tips

• Material: Aluminium
• Specificity: With Intake Window
• Rings Quantity: 2
• Stroke: 2T
• Forged piston
• Anti friction coated skirt

Available in several sizes: choose the one that matches your cylinder (stamped size or measured bore). Diameters: A = 65.94 mm, B = 65.95 mm.

Cross-Mania tip: Measure the cylinder bore before ordering: the piston must match your cylinder size. Follow the manufacturer's break-in procedure and replace the top-end gaskets at the same time.

Also needed with this part

• Top-end gasket kit : MOOSE 810440MSE · MOOSE 810442MSE
• Spark plug : NGK
• 2-stroke oil : LIQUI MOLY 1 L 3065 · LIQUI MOLY 1 L 3063
• Air filter : TECNIUM · TWIN AIR

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KDX 200 2006
KAWASAKI KDX 200 2005
KAWASAKI KDX 200 2004
KAWASAKI KDX 200 2003
KAWASAKI KDX 200 2002
KAWASAKI KDX 200 2001
KAWASAKI KDX 200 2000
KAWASAKI KDX 200 1999
KAWASAKI KDX 200 1998
KAWASAKI KDX 200 1997
KAWASAKI KDX 200 1996
KAWASAKI KDX 200 1995
KAWASAKI KDX 200 1994
KAWASAKI KDX 200 1993
KAWASAKI KDX 200 1992
KAWASAKI KDX 200 1991
KAWASAKI KDX 200 1990
KAWASAKI KDX 200 1989
KAWASAKI KDX 200 1988
KAWASAKI KDX 200 1987
KAWASAKI KDX 200 1986
