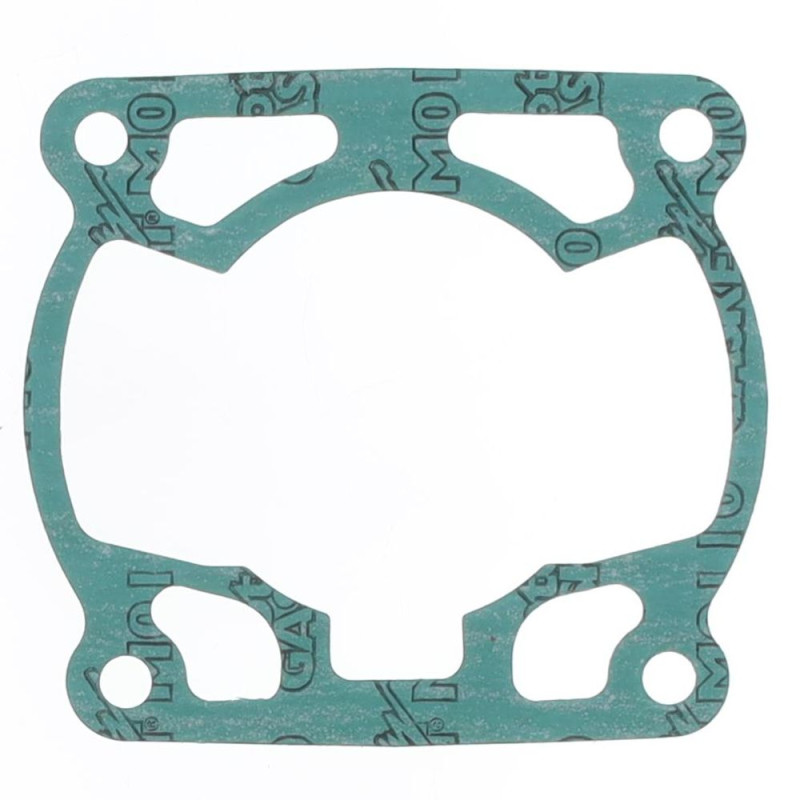

ATHENA Cylinder Base Gasket for TM RACING EN 125, EN 144, MX 125, MX 144 2012-2024

ATHENA offers this cylinder base gasket for TM RACING EN 125, EN 144, MX 125, MX 144 2012-2024. The base gasket sits under the cylinder, on the crankcase. Crushed when tightened, it cannot be reused: replace it every time the cylinder comes off.

Why does the thickness matter?

The benefits:

• The OE thickness keeps the cylinder height intended by the manufacturer.
• Another thickness lets you correct piston-to-head clearance after machining or adjust the port timing of a 2-stroke.
• A new gasket keeps the bottom end sealed against oil and gases.

Why choose ATHENA?

Athena, founded in 1973 by Giovanni Mancassola near Vicenza and based in Alonte (Italy), designs gaskets, pistons and cylinder kits; it supplies original equipment to manufacturers such as KTM, Ducati, Fantic and Triumph.

When should you replace the base gasket on your TM RACING MX 125?

Every time the cylinder comes off: piston change, top-end rebuild or cylinder inspection. Oil or mixture seeping at the base of the cylinder also points to a tired gasket.

No manufacturer figure in hours for this model. Cross-Mania guideline: compression check every 20 h of hard use and every 40 h of leisure riding.

Specifications and fitting tips

• Manufacturer part numbers: S410465006001 (0.20 mm), S410465006002 (0.30 mm), S410465006003 (0.40 mm), S410465006004 (0.50 mm)

Choose the thickness from the list. "OE" is the factory thickness; another thickness is used to set the cylinder height after a rebuild (piston-to-head clearance, port timing on a 2-stroke).

Cross-Mania tip: Choose the OE thickness if the cylinder and head have not been machined; if in doubt, measure the squish with solder wire before final assembly.

Spare parts and items to plan

• Top-end gasket kit : VHM SK33000.VITON · VHM SK33000
• Piston : WOSSNER · METEOR
• Piston rings : VERTEX · PROX
• Coolant : MOTUL 1 L · MOTUL 20 L

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
TM RACING EN 125 2021
TM RACING EN 125 2020
TM RACING EN 125 2019
TM RACING EN 125 2018
TM RACING EN 125 2017
TM RACING EN 125 2016
TM RACING EN 125 2015
TM RACING EN 125 2014
TM RACING EN 125 2013
TM RACING EN 125 2012
TM RACING EN 144 2024
TM RACING EN 144 2023
TM RACING EN 144 2022
TM RACING EN 144 2021
TM RACING EN 144 2020
TM RACING EN 144 2019
TM RACING EN 144 2018
TM RACING EN 144 2017
TM RACING EN 144 2016
TM RACING EN 144 2015
TM RACING EN 144 2014
TM RACING MX 125 2024
TM RACING MX 125 2023
TM RACING MX 125 2022
TM RACING MX 125 2021
TM RACING MX 125 2020
TM RACING MX 125 2019
TM RACING MX 125 2018
TM RACING MX 125 2017
TM RACING MX 125 2016
TM RACING MX 125 2015
TM RACING MX 125 2014
TM RACING MX 125 2013
TM RACING MX 125 2012
TM RACING MX 144 2024
TM RACING MX 144 2023
TM RACING MX 144 2022
TM RACING MX 144 2021
TM RACING MX 144 2020
TM RACING MX 144 2019
TM RACING MX 144 2018
TM RACING MX 144 2017
TM RACING MX 144 2016
TM RACING MX 144 2015
TM RACING MX 144 2014
