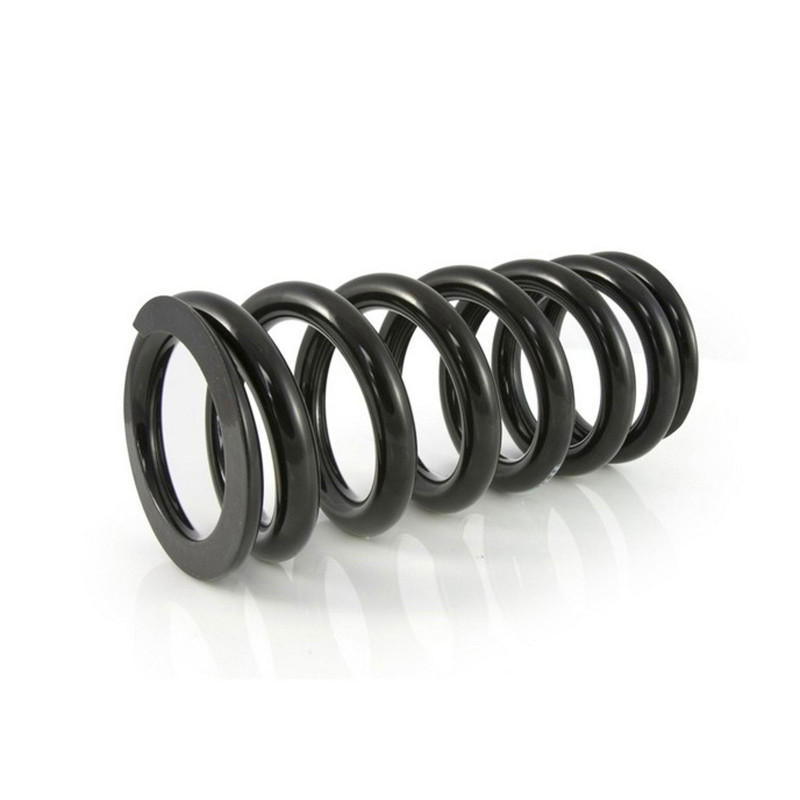

INNTECK WP PDS Shock Spring for KTM EXC, EXCF, SX, SXF and HUSABERG FE, FX, TE 125, 250, 300, 350, 390, 450, 501, 570 1998-2016

The INNTECK WP PDS shock spring is designed for KTM EXC 125, EXC 250, EXC 300, EXC 400, EXC 450, EXC 500, EXC 525, EXC 530, EXCF 250, EXCF 350, SX 125, SX 250, SXF 250, SXF 400, SXF 450 and HUSABERG FE 250, FE 350, FE 390, FE 450, FE 501, FE 570, FX 450, TE 125, TE 250, TE 300 from 1998 to 2016. The shock spring carries the rear of the bike and the rider. Its spring rate must match your riding weight with gear: with the right spring, sag can be set without pushing the preload to extremes and the rear end keeps its traction.

Specifications

• Brand: INNTECK
• Manufacturer part numbers: QS1263, QS1266, QS1269, QS1272, QS1276, QS1280, QS1284, QS1288, QS1292
• Diameter: 63 mm, length: 250 mm
• Available versions: 63 N/mm: ref. QS1263; 66 N/mm: ref. QS1266; 69 N/mm: ref. QS1269; 72 N/mm: ref. QS1272; 76 N/mm: ref. QS1276; 80 N/mm: ref. QS1280; 84 N/mm: ref. QS1284; 88 N/mm: ref. QS1288; 92 N/mm: ref. QS1292

Choosing the right spring rate

First set the rider sag to the manual's value using the preload collar, then measure the static sag (bike without rider): if it is too small, the spring is too soft for you; if it is too big, it is too stiff. Then change the spring rate by one or two steps.

When to replace it?

• Impossible to get the right rider sag without tightening or loosening the preload a long way.
• The rear end bottoms out often or squats under acceleration: spring too soft.
• The rear end bounces and lacks traction: spring too stiff.
• You weigh clearly more or less than the standard rider the manufacturer designed for.

Spring rate is given in N/mm (1 kg/mm is about 9.81 N/mm). Check the shock type (KYB, SHOWA, WP with linkage or WP PDS, which has no linkage) and the dimensions: the diameter and length must match your shock.

Fitting tips

1. Remove the shock as described in the manual, with the bike supported so the rear wheel is off the ground.
2. Back the preload off completely, remove the spring seat and change the spring.
3. Refit the shock to the specified torque, then set the rider sag with the preload.
4. Rebalance the fork afterwards if needed: a higher or lower rear end changes how the front end behaves.

Spare parts and items to plan

• Shock rebuild kit : ALL BALLS · MOOSE
• Linkage bearings : PROX 26.350059 · PROX 26.410089

Frequently asked questions

Who is a progressive spring for?
Its rate increases as it is compressed: soft at the start of the travel for comfort, firmer toward the end of the travel to resist bottoming out. It is mainly used on WP PDS shocks, which are fitted without linkage.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HUSABERG FE 250 2014
HUSABERG FE 250 2013
HUSABERG FE 350 2014
HUSABERG FE 350 2013
HUSABERG FE 390 2012
HUSABERG FE 390 2011
HUSABERG FE 390 2010
HUSABERG FE 390 2009
HUSABERG FE 450 2014
HUSABERG FE 450 2013
HUSABERG FE 450 2012
HUSABERG FE 450 2011
HUSABERG FE 450 2010
HUSABERG FE 450 2009
HUSABERG FE 501 2014
HUSABERG FE 501 2013
HUSABERG FE 570 2012
HUSABERG FE 570 2011
HUSABERG FE 570 2010
HUSABERG FE 570 2009
HUSABERG FX 450 2011
HUSABERG FX 450 2010
HUSABERG TE 125 2014
HUSABERG TE 125 2013
HUSABERG TE 250 2014
HUSABERG TE 250 2013
HUSABERG TE 250 2012
HUSABERG TE 250 2011
HUSABERG TE 300 2014
HUSABERG TE 300 2013
HUSABERG TE 300 2012
HUSABERG TE 300 2011
KTM EXC 125 2016
KTM EXC 125 2015
KTM EXC 125 2014
KTM EXC 125 2013
KTM EXC 125 2012
KTM EXC 125 2011
KTM EXC 125 2010
KTM EXC 125 2009
KTM EXC 125 2008
KTM EXC 125 2007
KTM EXC 125 2006
KTM EXC 125 2005
KTM EXC 125 2004
KTM EXC 125 2003
KTM EXC 125 2002
KTM EXC 125 2001
KTM EXC 125 2000
KTM EXC 125 1999
KTM EXC 125 1998
KTM EXC 250 2016
KTM EXC 250 2015
KTM EXC 250 2014
KTM EXC 250 2013
KTM EXC 250 2012
KTM EXC 250 2011
KTM EXC 250 2010
KTM EXC 250 2009
KTM EXC 250 2008
KTM EXC 250 2007
KTM EXC 250 2006
KTM EXC 250 2005
KTM EXC 250 2004
KTM EXC 250 2003
KTM EXC 250 2002
KTM EXC 250 2001
KTM EXC 250 2000
KTM EXC 250 1999
KTM EXC 250 1998
KTM EXC 300 2016
KTM EXC 300 2015
KTM EXC 300 2014
KTM EXC 300 2013
KTM EXC 300 2012
KTM EXC 300 2011
KTM EXC 300 2010
KTM EXC 300 2009
KTM EXC 300 2008
KTM EXC 300 2007
KTM EXC 300 2006
KTM EXC 300 2005
KTM EXC 300 2004
KTM EXC 300 2003
KTM EXC 300 2002
KTM EXC 300 2001
KTM EXC 300 2000
KTM EXC 300 1999
KTM EXC 300 1998
KTM EXC 400 2011
KTM EXC 400 2010
KTM EXC 400 2009
KTM EXC 400 2008
KTM EXC 400 2007
KTM EXC 400 2006
KTM EXC 400 2005
KTM EXC 400 2004
KTM EXC 400 2003
KTM EXC 400 2002
KTM EXC 400 2001
KTM EXC 400 2000
KTM EXC 450 2016
KTM EXC 450 2015
KTM EXC 450 2014
KTM EXC 450 2013
KTM EXC 450 2012
KTM EXC 450 2011
KTM EXC 450 2010
KTM EXC 450 2009
KTM EXC 450 2008
KTM EXC 450 2007
KTM EXC 450 2006
KTM EXC 450 2005
KTM EXC 450 2004
KTM EXC 450 2003
KTM EXC 450 2002
KTM EXC 450 2001
KTM EXC 450 2000
KTM EXC 500 2016
KTM EXC 500 2015
KTM EXC 500 2014
KTM EXC 500 2013
KTM EXC 500 2012
KTM EXC 525 2007
KTM EXC 525 2006
KTM EXC 525 2005
KTM EXC 525 2004
KTM EXC 525 2003
KTM EXC 525 2002
KTM EXC 530 2011
KTM EXC 530 2010
KTM EXC 530 2009
KTM EXC 530 2008
KTM EXCF 250 2016
KTM EXCF 250 2015
KTM EXCF 250 2014
KTM EXCF 250 2013
KTM EXCF 250 2012
KTM EXCF 250 2011
KTM EXCF 250 2010
KTM EXCF 250 2009
KTM EXCF 250 2008
KTM EXCF 250 2007
KTM EXCF 250 2006
KTM EXCF 350 2016
KTM EXCF 350 2015
KTM EXCF 350 2014
KTM EXCF 350 2013
KTM EXCF 350 2012
KTM EXCF 350 2011
KTM SX 125 2011
KTM SX 125 2010
KTM SX 125 2009
KTM SX 125 2008
KTM SX 125 2007
KTM SX 125 2006
KTM SX 125 2005
KTM SX 125 2004
KTM SX 125 2003
KTM SX 125 2002
KTM SX 125 2001
KTM SX 125 2000
KTM SX 125 1999
KTM SX 125 1998
KTM SX 250 2011
KTM SX 250 2010
KTM SX 250 2009
KTM SX 250 2008
KTM SX 250 2007
KTM SX 250 2006
KTM SX 250 2005
KTM SX 250 2004
KTM SX 250 2003
KTM SX 250 2002
KTM SX 250 2001
KTM SX 250 2000
KTM SX 250 1999
KTM SX 250 1998
KTM SXF 250 2010
KTM SXF 250 2009
KTM SXF 250 2008
KTM SXF 250 2007
KTM SXF 250 2006
KTM SXF 250 2005
KTM SXF 400 2010
KTM SXF 400 2009
KTM SXF 400 2008
KTM SXF 400 2007
KTM SXF 400 2006
KTM SXF 400 2005
KTM SXF 400 2004
KTM SXF 400 2003
KTM SXF 400 2002
KTM SXF 400 2001
KTM SXF 400 2000
KTM SXF 450 2010
KTM SXF 450 2009
KTM SXF 450 2008
KTM SXF 450 2007
KTM SXF 450 2006
KTM SXF 450 2005
KTM SXF 450 2004
KTM SXF 450 2003
