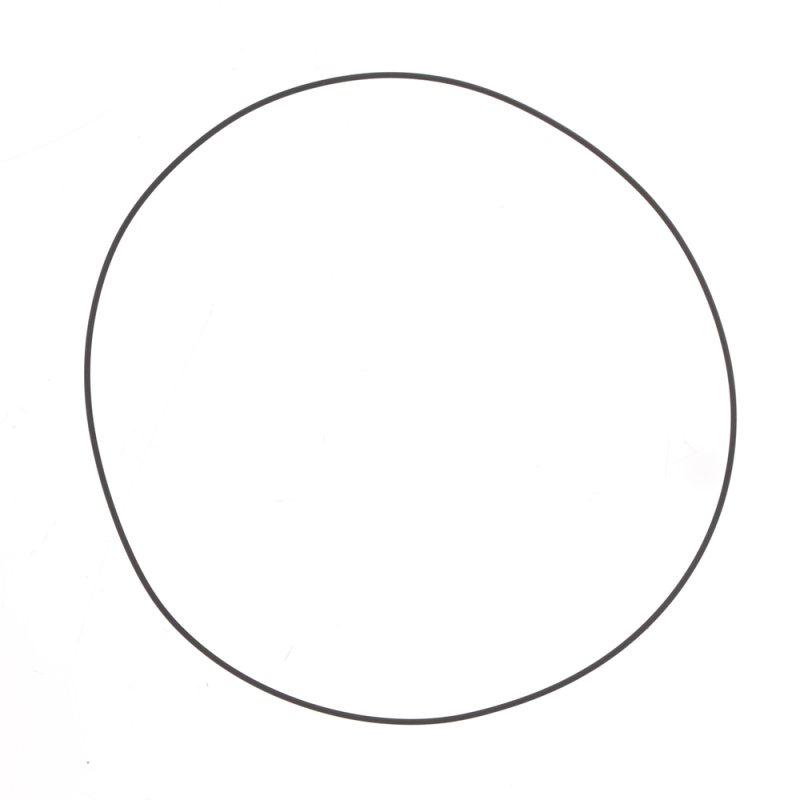

ATHENA O-Ring Ø164.7x2.62 mm for HUSQVARNA TC 450, TC 510, TE 310, TE 450, TE 510, TXC 310, TXC 450, TXC 510 2003-2010

The ATHENA Ø164.7x2.62 mm M752616477004 O-ring is designed for HUSQVARNA TC 450, TC 510, TE 310, TE 450, TE 510, TXC 310, TXC 450, TXC 510 from 2003 to 2010. Sold by size, this O-ring replaces one that is flattened, hardened or cut, provided you match its inner diameter and cross-section exactly. An O-ring doesn't take well to being reused: once squeezed into its groove, it has taken on the groove's shape and can no longer be trusted to seal.

Specifications

• Brand: ATHENA
• Manufacturer part number: M752616477004
• EAN code: 8050038447102
• Material: NBR (nitrile rubber)
• Hardness: 70 Shore A
• Engine: 4-stroke

When to replace it?

• Oil, coolant or fuel weeping at a plug, cover or fitting.
• O-ring flattened, hardened, split or pinched when you take it out.
• O-ring swollen or softened after contact with a fluid it isn't suited to.

Change the O-ring every time you remove the part it seals: it costs a few cents, next to the price of a leak. Measure the inner diameter and cross-section thickness of the old ring with a caliper, without squashing it, or use the size given in the workshop manual.

Fitting tips

1. Clean the groove and the mating surface: a grain of sand or a scrap of old seal is enough to cause a leak.
2. Lightly oil the new O-ring, or coat it with a compatible grease, so it seats without twisting.
3. Lay it in the bottom of its groove without rolling it or stretching it more than necessary, then bring the parts together squarely.
4. Tighten to the torque in the manual: an O-ring seals through controlled compression, not maximum tightening.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Grease : MOTUL 400 g

Frequently asked questions

How do I measure an O-ring?
Two dimensions are enough: the inner diameter and the cross-section thickness (the diameter of the rubber “cord”). Measure without squashing the ring, or take the dimensions of the groove.

Can I reuse an O-ring?
It's not recommended: squeezed into its groove, it has taken on its shape and hardened. At this price, always fit a new one.

Which material?
NBR handles oil and fuel; FKM (Viton) stands up better to heat. The material is listed in the specifications when it is known.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HUSQVARNA TC 450 2010
HUSQVARNA TC 450 2009
HUSQVARNA TC 450 2008
HUSQVARNA TC 450 2007
HUSQVARNA TC 450 2006
HUSQVARNA TC 450 2005
HUSQVARNA TC 450 2004
HUSQVARNA TC 450 2003
HUSQVARNA TC 510 2010
HUSQVARNA TC 510 2009
HUSQVARNA TC 510 2008
HUSQVARNA TC 510 2007
HUSQVARNA TC 510 2006
HUSQVARNA TC 510 2005
HUSQVARNA TC 510 2004
HUSQVARNA TE 310 2010
HUSQVARNA TE 310 2009
HUSQVARNA TE 450 2009
HUSQVARNA TE 450 2008
HUSQVARNA TE 450 2007
HUSQVARNA TE 450 2006
HUSQVARNA TE 450 2005
HUSQVARNA TE 450 2004
HUSQVARNA TE 450 2003
HUSQVARNA TE 510 2010
HUSQVARNA TE 510 2009
HUSQVARNA TE 510 2008
HUSQVARNA TE 510 2007
HUSQVARNA TE 510 2006
HUSQVARNA TE 510 2005
HUSQVARNA TE 510 2004
HUSQVARNA TXC 310 2010
HUSQVARNA TXC 310 2009
HUSQVARNA TXC 450 2010
HUSQVARNA TXC 450 2009
HUSQVARNA TXC 450 2008
HUSQVARNA TXC 450 2007
HUSQVARNA TXC 450 2006
HUSQVARNA TXC 450 2005
HUSQVARNA TXC 450 2004
HUSQVARNA TXC 450 2003
HUSQVARNA TXC 510 2010
HUSQVARNA TXC 510 2009
HUSQVARNA TXC 510 2008
HUSQVARNA TXC 510 2007
HUSQVARNA TXC 510 2006
HUSQVARNA TXC 510 2005
HUSQVARNA TXC 510 2004
