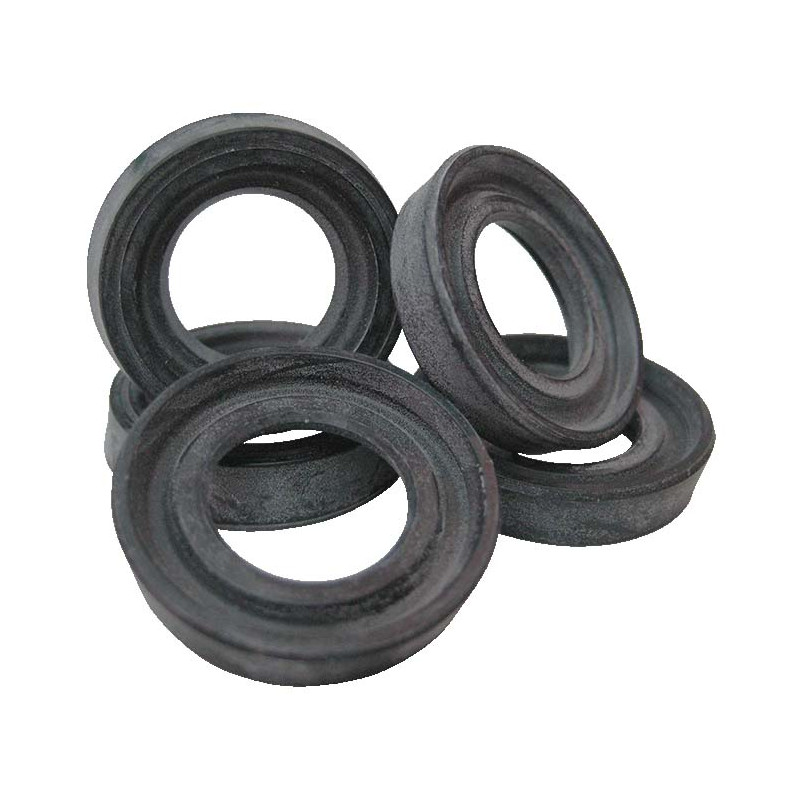

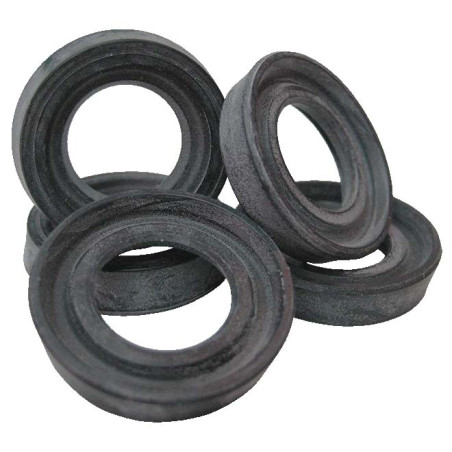

SHOWA Fork Cartridge Rod Seal (Ø12.5 mm rod) for KAWASAKI KXF 250, HONDA CRF 250 and SUZUKI RMZ 250, RMZ 450 2010-2020

The SHOWA (tige Ø12.5 mm) SHO-3001003 fork cartridge rod seal is designed for SUZUKI RMZ 250, RMZ 450, HONDA CRF 250 and KAWASAKI KXF 250 from 2010 to 2020. In a cartridge fork, the damping happens inside a closed tube in which a piston rod slides. This seal keeps the oil in around the rod: once it wears, oil gets past and the damping loses effectiveness and consistency.

Specifications

• Brand: SHOWA
• Manufacturer part number: SHO-3001003

When to replace it?

• Fork damping that changes during a ride.
• Oil getting where it shouldn't, cartridge oil level dropping.
• Seal hardened, marked or distorted when you remove it.

Replace this part at every full cartridge service, as set out in the fork manual. Check the diameter and dimensions listed: they must match your cartridge.

Fitting tips

1. Servicing a cartridge takes method and the right tools: follow the fork manual or leave it to a suspension specialist.
2. Strip the cartridge, clean all the parts and check the condition of the rod (scratches, pitting).
3. Fit the new part, oiled, without twisting it or damaging it on the threads.
4. Reassemble with fresh fork oil and carefully bleed the air out of the cartridge.

Why SHOWA?

Showa was founded in 1938 in Gyoda, Japan, as Showa Aircraft Precision Works. After the war, the company put its aeronautical know-how to work on motorcycle suspension, notably for Honda, and the brand now belongs to the Astemo group, formed by a merger completed in January 2021.

Spare parts and items to plan

• Fork oil : LIQUI MOLY 10W 500 ml
• Fork oil seals : ATHENA P40FORK455216 · ATHENA P40FORK455139

Frequently asked questions

Should I service both fork legs?
Yes: service both sides together so they behave identically.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA CRF 250 2014
HONDA CRF 250 2013
HONDA CRF 250 2012
HONDA CRF 250 2011
HONDA CRF 250 2010
KAWASAKI KXF 250 2020
KAWASAKI KXF 250 2019
KAWASAKI KXF 250 2018
KAWASAKI KXF 250 2017
KAWASAKI KXF 250 2016
KAWASAKI KXF 250 2015
KAWASAKI KXF 250 2014
KAWASAKI KXF 250 2013
SUZUKI RMZ 250 2015
SUZUKI RMZ 250 2014
SUZUKI RMZ 250 2013
SUZUKI RMZ 450 2014
SUZUKI RMZ 450 2013
