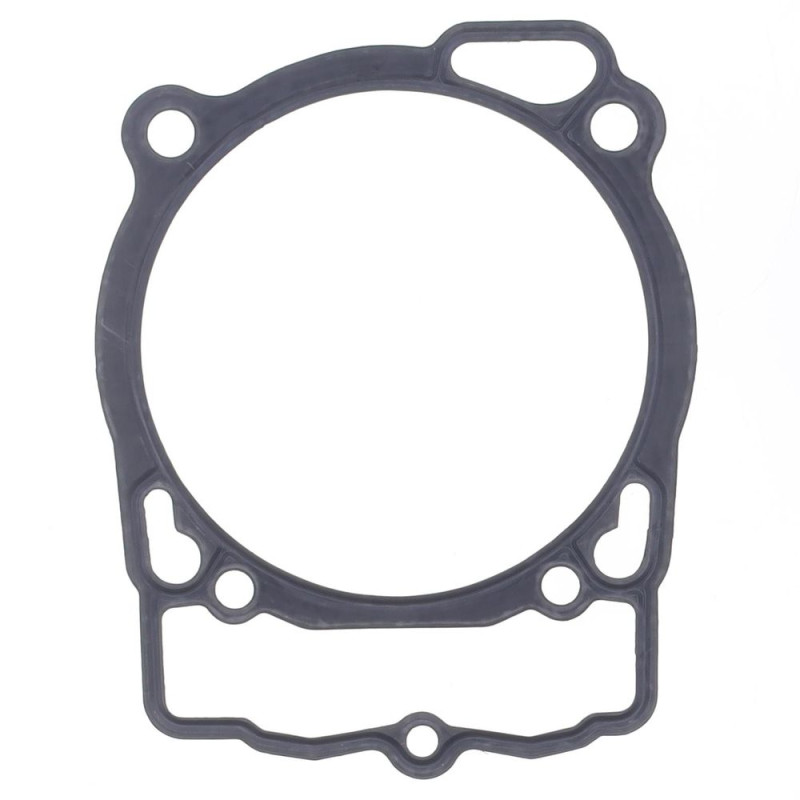

ATHENA Cylinder Base Gasket for KTM, HUSABERG and HUSQVARNA 2005-2018

ATHENA offers this cylinder base gasket for KTM, HUSABERG and HUSQVARNA 2005-2018. The base gasket sits under the cylinder, on the crankcase. Crushed when tightened, it cannot be reused: replace it every time the cylinder comes off.

Why does the thickness matter?

The benefits:

• The OE thickness keeps the cylinder height intended by the manufacturer.
• Another thickness lets you correct piston-to-head clearance after machining or adjust the port timing of a 2-stroke.
• A new gasket keeps the bottom end sealed against oil and gases.

Why choose ATHENA?

Athena, founded in 1973 by Giovanni Mancassola near Vicenza and based in Alonte (Italy), designs gaskets, pistons and cylinder kits; it supplies original equipment to manufacturers such as KTM, Ducati, Fantic and Triumph.

When should you replace the base gasket on your KTM EXCF 450?

Every time the cylinder comes off: piston change, top-end rebuild or cylinder inspection. Oil or mixture seeping at the base of the cylinder also points to a tired gasket.

No manufacturer figure in hours for this model. Cross-Mania guideline: compression check every 30 h of hard use and every 60 h of leisure riding.

Specifications and fitting tips

• Thickness : OE
• Manufacturer part number: S410270006071

Cross-Mania tip: Choose the OE thickness if the cylinder and head have not been machined; if in doubt, measure the squish with solder wire before final assembly.

Spare parts and items to plan

• Top-end gasket kit : ATHENA · CENTAURO
• Piston : WOSSNER
• Piston rings : WOSSNER · PROX
• Coolant : LIQUI MOLY 1 L · TWIN AIR

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HUSABERG FE 390 2011
HUSABERG FE 390 2010
HUSABERG FE 450 2011
HUSABERG FE 450 2010
HUSABERG FE 450 2009
HUSABERG FE 570 2010
HUSABERG FE 570 2009
HUSABERG FS 570 2018
HUSABERG FS 570 2017
HUSABERG FS 570 2016
HUSABERG FS 570 2015
HUSABERG FS 570 2014
HUSABERG FS 570 2013
HUSABERG FS 570 2012
HUSABERG FS 570 2011
HUSABERG FS 570 2010
HUSABERG FX 450 2011
HUSABERG FX 450 2010
HUSQVARNA FC 450 2015
HUSQVARNA FC 450 2014
HUSQVARNA FE 450 2016
HUSQVARNA FE 450 2015
HUSQVARNA FE 450 2014
KTM EXC 400 2011
KTM EXC 400 2010
KTM EXC 400 2009
KTM EXC 400 2008
KTM EXC 400 2007
KTM EXC 400 2006
KTM EXC 400 2005
KTM EXC 450 2016
KTM EXC 450 2015
KTM EXC 450 2014
KTM EXC 450 2013
KTM EXC 450 2012
KTM EXC 450 2011
KTM EXC 450 2010
KTM EXC 450 2009
KTM EXC 450 2008
KTM EXC 500 2016
KTM EXC 500 2015
KTM EXC 500 2014
KTM EXC 500 2013
KTM EXC 500 2012
KTM EXC 530 2011
KTM EXC 530 2010
KTM EXC 530 2009
KTM EXC 530 2008
KTM EXC 530 2007
KTM EXCF 450 2016
KTM EXCF 450 2015
KTM EXCF 450 2014
KTM EXCF 450 2013
KTM EXCF 450 2012
KTM EXCF 450 2011
KTM EXCF 450 2010
KTM EXCF 450 2009
KTM EXCF 450 2008
KTM EXCF 450 2007
KTM EXCF 500 2015
KTM EXCF 500 2014
KTM EXCF 500 2013
KTM EXCF 500 2012
KTM SXF 450 2015
KTM SXF 450 2014
KTM SXF 450 2013
KTM XCF 450 2015
KTM XCF 450 2014
KTM XCF 450 2013
KTM XCW 400 2011
KTM XCW 400 2010
KTM XCW 400 2009
KTM XCW 400 2008
KTM XCW 450 2018
KTM XCW 450 2017
KTM XCW 450 2016
KTM XCW 450 2015
KTM XCW 450 2014
KTM XCW 450 2013
KTM XCW 450 2012
KTM XCW 450 2011
KTM XCW 450 2010
KTM XCW 500 2016
KTM XCW 500 2015
KTM XCW 500 2014
KTM XCW 500 2013
KTM XCW 500 2012
KTM XCW 530 2011
KTM XCW 530 2010
KTM XCW 530 2009
