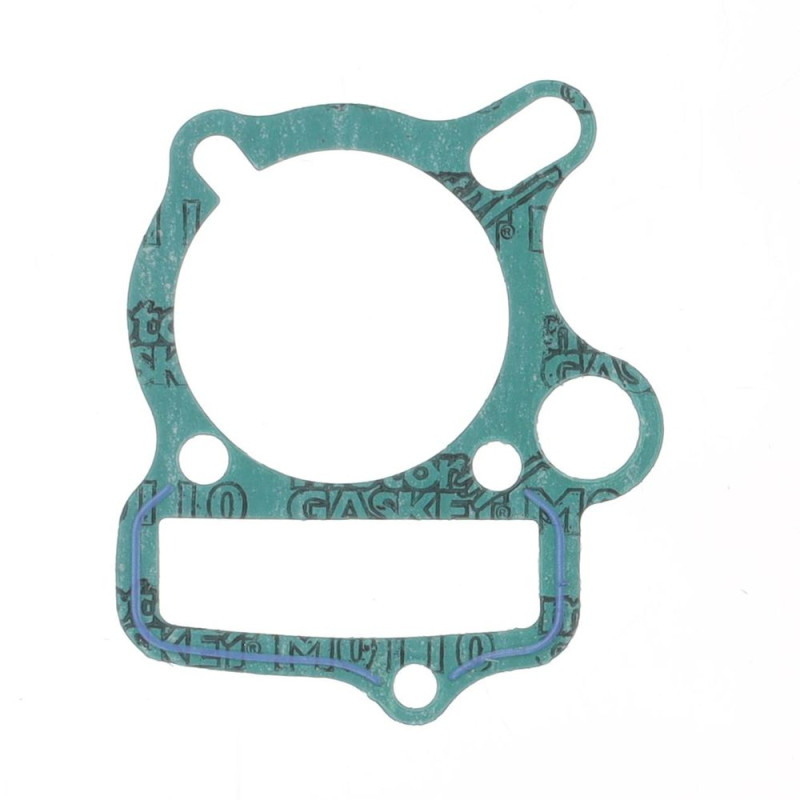

ATHENA Cylinder Base Gasket for HONDA CRF 50, CRF 70, XR 50 1988-2024

The ATHENA S410210006336 cylinder base gasket is designed for HONDA CRF 50, CRF 70, XR 50 from 1988 to 2024. The base gasket seals between the cylinder and the crankcase. Its thickness matters: it sets the height of the cylinder, and therefore the squish, the compression and, on a two-stroke, the port timing.

Key features

• Several thicknesses available for the same bike.
• The right tool for setting squish, compression and timing, according to Athena.

Specifications

• Brand: ATHENA
• Manufacturer part number: S410210006336
• EAN code: 8051757183562
• Thickness: OE
• Weight: 30 g
• Engine: 4-stroke

When to replace it?

• Oil seeping at the base of the cylinder.
• Gasket crushed or torn on removal.

Every time the cylinder is removed: a crushed base gasket can't be reused.

Fitting tips

1. Clean the crankcase face and the base of the cylinder without scratching them.
2. Fit the gasket dry, centred on the studs.
3. Tighten the cylinder in a criss-cross pattern to the manufacturer's torque.
4. If you have changed the thickness, measure the squish before refitting the cylinder head with a new head gasket.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Top-end gasket kit : ATHENA S410210001229 · ATHENA S410210015023
• Piston : WISECO · PROX
• Piston rings : WISECO W1850XE · WISECO 1890XE

Frequently asked questions

Which thickness should I choose?
The same as your original gasket, unless you are deliberately adjusting the squish.

Should the other gaskets be replaced?
Yes, as soon as the cylinder is removed: a top end gasket kit includes all the gaskets that need replacing.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA CRF 50 2024
HONDA CRF 50 2023
HONDA CRF 50 2022
HONDA CRF 50 2021
HONDA CRF 50 2020
HONDA CRF 50 2019
HONDA CRF 50 2018
HONDA CRF 50 2017
HONDA CRF 50 2016
HONDA CRF 50 2015
HONDA CRF 50 2014
HONDA CRF 50 2013
HONDA CRF 50 2012
HONDA CRF 50 2011
HONDA CRF 50 2010
HONDA CRF 50 2009
HONDA CRF 50 2008
HONDA CRF 50 2007
HONDA CRF 50 2006
HONDA CRF 50 2005
HONDA CRF 50 2004
HONDA CRF 70 2012
HONDA CRF 70 2011
HONDA CRF 70 2010
HONDA CRF 70 2009
HONDA CRF 70 2008
HONDA CRF 70 2007
HONDA CRF 70 2006
HONDA CRF 70 2005
HONDA CRF 70 2004
HONDA XR 50 2003
HONDA XR 50 2002
HONDA XR 50 2001
HONDA XR 50 2000
HONDA XR 50 1999
HONDA XR 50 1998
HONDA XR 50 1997
HONDA XR 50 1996
HONDA XR 50 1995
HONDA XR 50 1994
HONDA XR 50 1993
HONDA XR 50 1992
HONDA XR 50 1991
HONDA XR 50 1990
HONDA XR 50 1989
HONDA XR 50 1988
