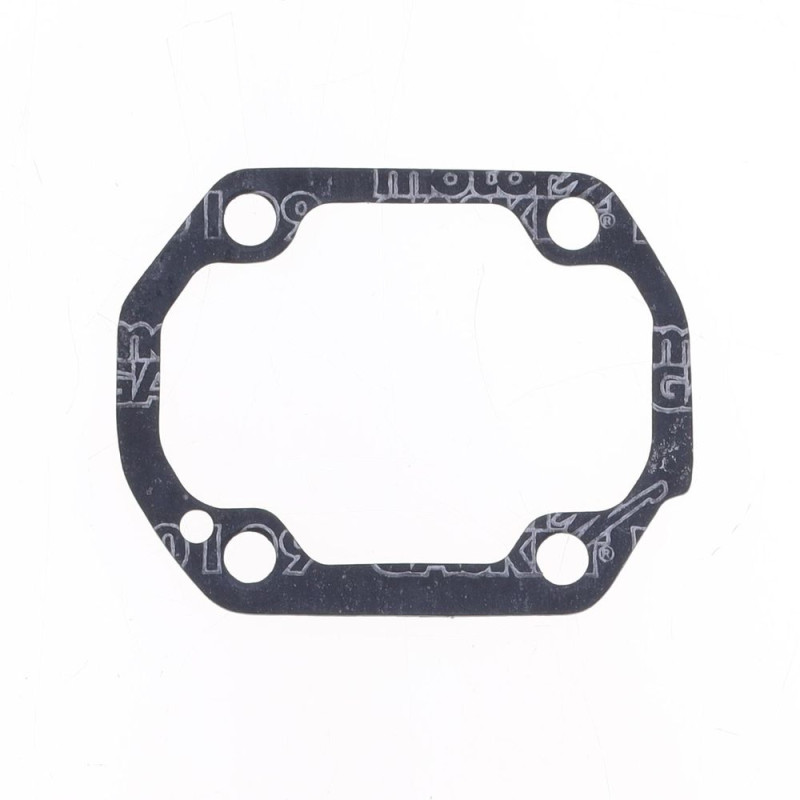

ATHENA Valve Cover Gasket for HONDA CRF 50, CRF 70, XR 50 1988-2024

On HONDA CRF 50, CRF 70, XR 50 from 1988 to 2024, the ATHENA S410210015023 valve cover gasket fits in place of the original part. The valve cover gasket stops valve train oil from escaping from the engine. It comes off at every valve clearance check and eventually hardens with the heat.

Specifications

• Brand: ATHENA
• Manufacturer part number: S410210015023
• EAN code: 8051757149179
• Weight: 50 g
• Engine: 4-stroke

When to replace it?

• Oil seeping around the valve cover or into the spark plug tube.
• Gasket hardened, flattened or split on removal.

During a valve clearance check or work on the valve train, as soon as the gasket is hardened, flattened or damaged.

Fitting tips

1. Clean the groove in the cover and the cylinder head face.
2. Seat the gasket properly in its groove; sealant goes only where the manual calls for it (often the camshaft half-moons).
3. Tighten the screws in a criss-cross pattern to the manufacturer's torque, without crushing the gasket.
4. While it's apart, adjust the valve clearance with valve shims if needed and replace the spark plug.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Valve shims : see the selection
• Spark plug : NGK 7120 · NGK 7840
• Valve stem seals : ATHENA · KIBBLEWHITE
• 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50

Frequently asked questions

Should it be replaced at every valve check?
Not necessarily if it is still supple and intact, but a hardened gasket always ends up leaking.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA CRF 50 2024
HONDA CRF 50 2023
HONDA CRF 50 2022
HONDA CRF 50 2021
HONDA CRF 50 2020
HONDA CRF 50 2019
HONDA CRF 50 2018
HONDA CRF 50 2017
HONDA CRF 50 2016
HONDA CRF 50 2015
HONDA CRF 50 2014
HONDA CRF 50 2013
HONDA CRF 50 2012
HONDA CRF 50 2011
HONDA CRF 50 2010
HONDA CRF 50 2009
HONDA CRF 50 2008
HONDA CRF 50 2007
HONDA CRF 50 2006
HONDA CRF 50 2005
HONDA CRF 50 2004
HONDA CRF 70 2012
HONDA CRF 70 2011
HONDA CRF 70 2010
HONDA CRF 70 2009
HONDA CRF 70 2008
HONDA CRF 70 2007
HONDA CRF 70 2006
HONDA CRF 70 2005
HONDA CRF 70 2004
HONDA XR 50 2003
HONDA XR 50 2002
HONDA XR 50 2001
HONDA XR 50 2000
HONDA XR 50 1999
HONDA XR 50 1998
HONDA XR 50 1997
HONDA XR 50 1996
HONDA XR 50 1995
HONDA XR 50 1994
HONDA XR 50 1993
HONDA XR 50 1992
HONDA XR 50 1991
HONDA XR 50 1990
HONDA XR 50 1989
HONDA XR 50 1988
