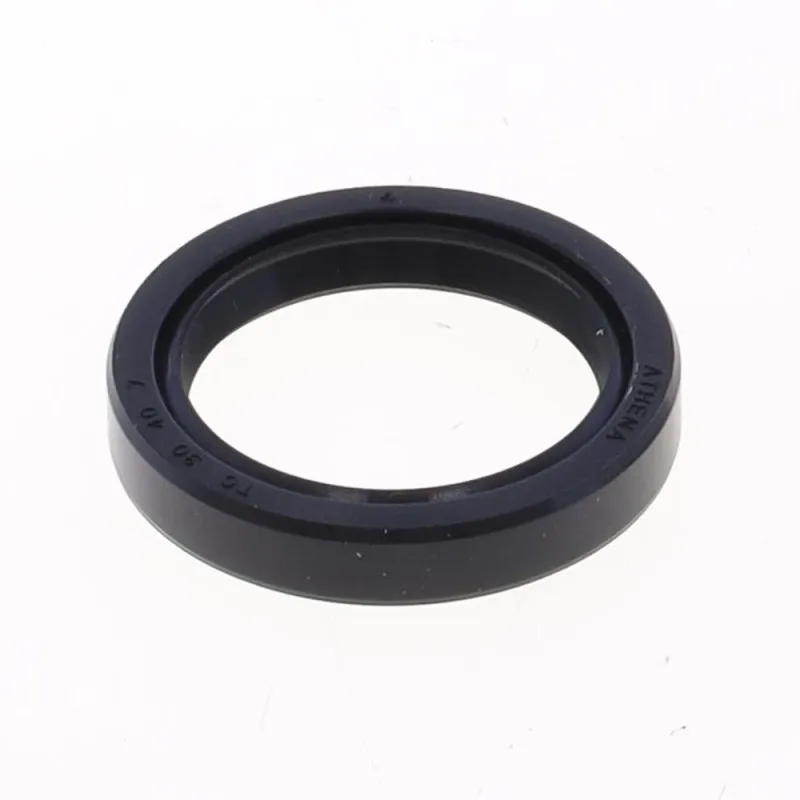

ATHENA Oil Seal 30x40x7 mm for KAWASAKI KXF 250 and SUZUKI RMZ 250 2004-2027

The ATHENA 30x40x7 mm M730902180020 oil seal is designed for KAWASAKI KXF 250 and SUZUKI RMZ 250 from 2004 to 2027. An oil seal (lip seal) seals the gap between a spinning shaft and the casing it passes through: its lip, held against the shaft by a small spring, keeps the oil in and stops water and dirt getting in. It is identified by three dimensions in millimetres: inner diameter (the shaft), outer diameter (the housing) and thickness.

Specifications

• Brand: ATHENA
• Manufacturer part number: M730902180020
• EAN code: 8051757105885
• Rubber-covered outer case
• Profile: TC
• Weight: 150 g
• Engine: 4-stroke

When to replace it?

• Oil weeping or leaking around the shaft.
• Lip hardened, cracked or turned over when you take the seal out.
• A groove worn into the shaft where the lip runs: the new seal must sit on a clean, undamaged surface.
• On a two-stroke, a crankshaft seal that lets air in makes the idle unstable and leans out the mixture.

Replace an oil seal as soon as it leaks, and always whenever you remove it: once a lip has come out of its housing, it never seals properly again. Note the three dimensions marked on the old seal (for example 20 x 32 x 7) or measure the shaft, the housing and the thickness with a caliper.

Fitting tips

1. Drive out the old seal with a seal puller or a screwdriver with a protected tip, without scratching the housing or the shaft.
2. Clean the housing and check the shaft: a scratch or groove under the lip will make the new seal leak.
3. Lightly oil the lip or smear it with grease, then drive the seal in perfectly square with a socket that presses on its outer edge, lip (spring side) facing the oil.
4. Protect the lip from splines, threads or keys as the shaft goes through (adhesive tape or a thin sleeve).

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Grease : MOTUL 400 g

Frequently asked questions

How do I read an oil seal size?
In this order: inner diameter, outer diameter, thickness, in millimetres. A 20 x 32 x 7 seal fits a 20 mm shaft in a 32 mm housing and is 7 mm thick.

NBR or FKM (Viton)?
NBR (nitrile rubber) suits most uses. FKM handles heat better: it's the right choice near the crankshaft or the water pump. The material is listed in the specifications when it is known.

Why would a new seal leak?
Most of the time the shaft is marked under the lip, the seal went in crooked, or the lip folded over as the shaft went through.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KXF 250 2027
KAWASAKI KXF 250 2026
KAWASAKI KXF 250 2025
KAWASAKI KXF 250 2024
KAWASAKI KXF 250 2023
KAWASAKI KXF 250 2022
KAWASAKI KXF 250 2021
KAWASAKI KXF 250 2020
KAWASAKI KXF 250 2019
KAWASAKI KXF 250 2018
KAWASAKI KXF 250 2017
KAWASAKI KXF 250 2016
KAWASAKI KXF 250 2015
KAWASAKI KXF 250 2014
KAWASAKI KXF 250 2013
KAWASAKI KXF 250 2012
KAWASAKI KXF 250 2011
KAWASAKI KXF 250 2010
KAWASAKI KXF 250 2009
KAWASAKI KXF 250 2008
KAWASAKI KXF 250 2007
KAWASAKI KXF 250 2006
KAWASAKI KXF 250 2005
KAWASAKI KXF 250 2004
SUZUKI RMZ 250 2006
SUZUKI RMZ 250 2005
SUZUKI RMZ 250 2004
