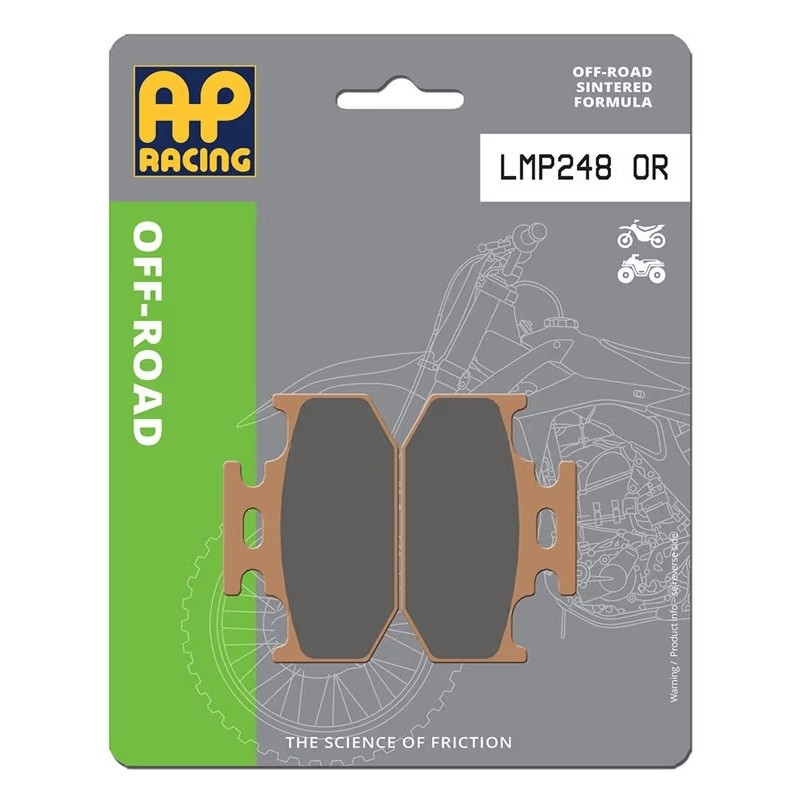

AP RACING sintered Rear Brake Pads for SUZUKI DRZ 250, RM 125, RM 250, RMX 250 and YAMAHA YZ 125, YZ 250, YZF 400 1989-2018

The AP RACING LMP248OR set of brake pads is designed for SUZUKI DRZ 250, RM 125, RM 250, RMX 250 and YAMAHA YZ 125, YZ 250, YZF 400 from 1989 to 2018. Pressed against the disc by the caliper, the pads turn the bike's energy into heat. Their friction material wears a little with every stop, and even faster in muddy conditions.

Specifications

• Brand: AP RACING
• Manufacturer part number: LMP248OR
• EAN code: 5700757007189
• ECE R90 approved
• Compound: sintered metal

When to replace it?

• Friction material worn below the minimum thickness in the manual (often 1 to 2 mm), or wear groove gone.
• Metallic grinding noise when braking.
• Lever or pedal going further, brakes with less bite.

Check pad thickness before every ride, especially in muddy conditions. Never wait for metal-to-metal contact: it scores the disc within a few stops.

Fitting tips

1. Push the caliper pistons back while keeping an eye on the brake fluid level in the reservoir, which will rise.
2. Clean the caliper and the pad pin, and replace the pin if it's marked.
3. Fit the pads with their spring or clip, the right way round, then pump the lever or pedal until you get normal travel back.
4. Check the condition of the disc: a disc that's too thin or warped wears out new pads.
5. Bed in the pads with a dozen progressive stops before riding hard.

Why AP RACING?

AP Racing, based in Coventry, is the name given in 1970 to the competition division of Automotive Products, a company founded in London in 1920. In motorcycling, the brand launched the first commercially available racing disc brake as early as 1966, and MV Agusta won the 1973 500 cc world title with its brakes, the first title ever won on disc brakes.

Spare parts and items to plan

• Brake disc : TRW · MOTO-MASTER
• Brake fluid : MOTUL 500 ml · LIQUI MOLY 250 ml

Frequently asked questions

Sintered or organic?
Sintered (metallic) pads last longer and stay effective in mud and water: they're the benchmark for motocross and enduro. Organic pads are gentler on the disc and bite well from cold.

Should both sides be changed?
Always replace the complete set for a given caliper, and check the disc while you're at it.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SUZUKI DRZ 250 2018
SUZUKI DRZ 250 2017
SUZUKI DRZ 250 2016
SUZUKI DRZ 250 2015
SUZUKI DRZ 250 2014
SUZUKI DRZ 250 2013
SUZUKI DRZ 250 2012
SUZUKI DRZ 250 2011
SUZUKI DRZ 250 2010
SUZUKI DRZ 250 2009
SUZUKI DRZ 250 2008
SUZUKI DRZ 250 2007
SUZUKI DRZ 250 2006
SUZUKI DRZ 250 2005
SUZUKI DRZ 250 2004
SUZUKI DRZ 250 2003
SUZUKI DRZ 250 2002
SUZUKI DRZ 250 2001
SUZUKI RM 125 1995
SUZUKI RM 125 1994
SUZUKI RM 125 1993
SUZUKI RM 125 1992
SUZUKI RM 125 1991
SUZUKI RM 250 1995
SUZUKI RM 250 1994
SUZUKI RM 250 1993
SUZUKI RM 250 1992
SUZUKI RM 250 1991
SUZUKI RMX 250 1998
SUZUKI RMX 250 1997
SUZUKI RMX 250 1996
SUZUKI RMX 250 1995
SUZUKI RMX 250 1994
SUZUKI RMX 250 1993
SUZUKI RMX 250 1992
SUZUKI RMX 250 1991
SUZUKI RMX 250 1990
SUZUKI RMX 250 1989
YAMAHA YZ 125 1997
YAMAHA YZ 125 1996
YAMAHA YZ 250 1997
YAMAHA YZ 250 1996
YAMAHA YZ 250 1995
YAMAHA YZ 250 1994
YAMAHA YZ 250 1993
YAMAHA YZ 250 1992
YAMAHA YZ 250 1991
YAMAHA YZF 400 1998
