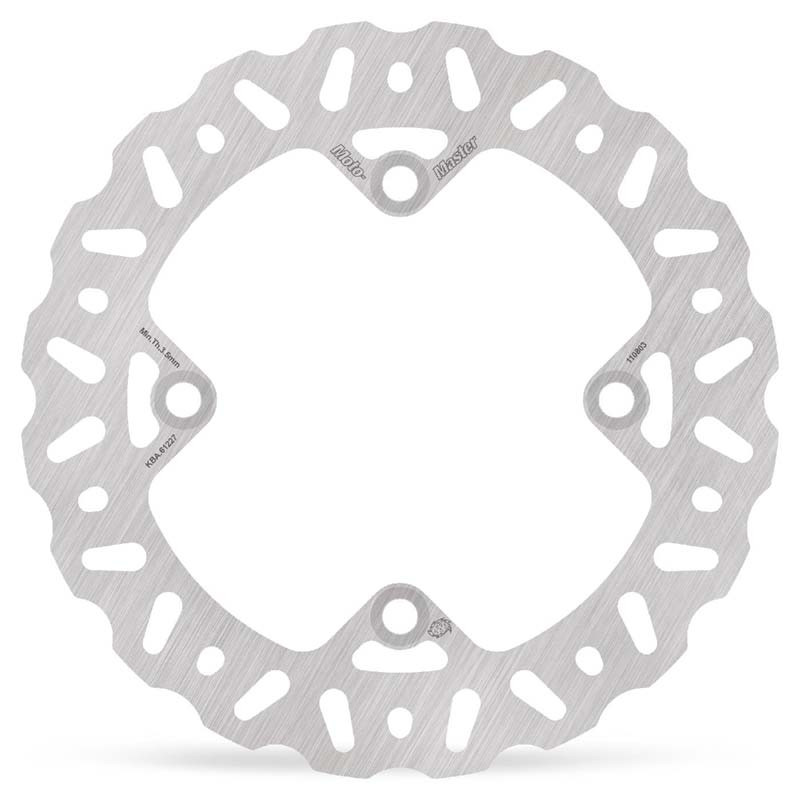

MOTO-MASTER Rear Brake Disc for HONDA XR 250, XR 400, XR 600 and KAWASAKI KFX 400 1991-2006

The MOTO-MASTER 110803 brake disc is designed for HONDA XR 250, XR 400, XR 600 and KAWASAKI KFX 400 from 1991 to 2006. The disc, bolted to the hub, is the surface the pads clamp onto. It has to stay flat and thick enough to get rid of the heat: a tired disc lengthens stopping distances and wears the pads.

Specifications

• Brand: MOTO-MASTER
• Manufacturer part number: 110803
• EAN code: 8790497053840
• Weight: 720 g
• Engine: 4-stroke

When to replace it?

• Thickness below the minimum stamped on the disc or given in the manual.
• Warped disc: vibration through the lever or pedal, brake that “pulses”.
• Deep scoring, cracks or blueing after overheating.

Measure the thickness with a micrometer every time you change the pads, and replace the disc as soon as it reaches the minimum thickness, or if it's warped or cracked.

Fitting tips

1. Clean the hub mounting face: a single grain of sand under the disc is enough to throw it out of true.
2. Fit the disc the right way round (markings facing out, direction of rotation if indicated).
3. Tighten the bolts in a criss-cross pattern to the manufacturer's torque, with medium-strength threadlocker.
4. Degrease the disc and ideally fit new pads.
5. Bed in with a dozen progressive stops.

Why MOTO-MASTER?

In motocross, Moto-Master was working with the Red Bull KTM Factory Racing team as early as 2010, and it backed the MXGP world championship in 2015. On the technical side, the Flame profile of its discs is designed to improve cooling and go easy on the pads, and its Racing GP sintered pads use a backing plate with hooks (NRS technology) that stops the friction material from coming away.

Spare parts and items to plan

• Brake pads : T-BRAKE · MOOSE
• Brake fluid : MOTUL 5 L · MOTUL 500 ml

Frequently asked questions

Should the pads be changed along with the disc?
It's strongly recommended: worn pads have taken on the shape of the old disc and won't brake well on a new one.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA XR 250 2004
HONDA XR 250 2003
HONDA XR 250 2002
HONDA XR 250 2001
HONDA XR 250 2000
HONDA XR 250 1999
HONDA XR 250 1998
HONDA XR 250 1997
HONDA XR 250 1996
HONDA XR 250 1995
HONDA XR 250 1994
HONDA XR 250 1993
HONDA XR 250 1992
HONDA XR 250 1991
HONDA XR 400 2004
HONDA XR 400 2003
HONDA XR 400 2002
HONDA XR 400 2001
HONDA XR 400 2000
HONDA XR 400 1999
HONDA XR 400 1998
HONDA XR 400 1997
HONDA XR 400 1996
HONDA XR 600 2000
HONDA XR 600 1999
HONDA XR 600 1998
HONDA XR 600 1997
HONDA XR 600 1996
HONDA XR 600 1995
HONDA XR 600 1994
HONDA XR 600 1993
HONDA XR 600 1992
HONDA XR 600 1991
KAWASAKI KFX 400 2006
KAWASAKI KFX 400 2005
KAWASAKI KFX 400 2004
KAWASAKI KFX 400 2003
