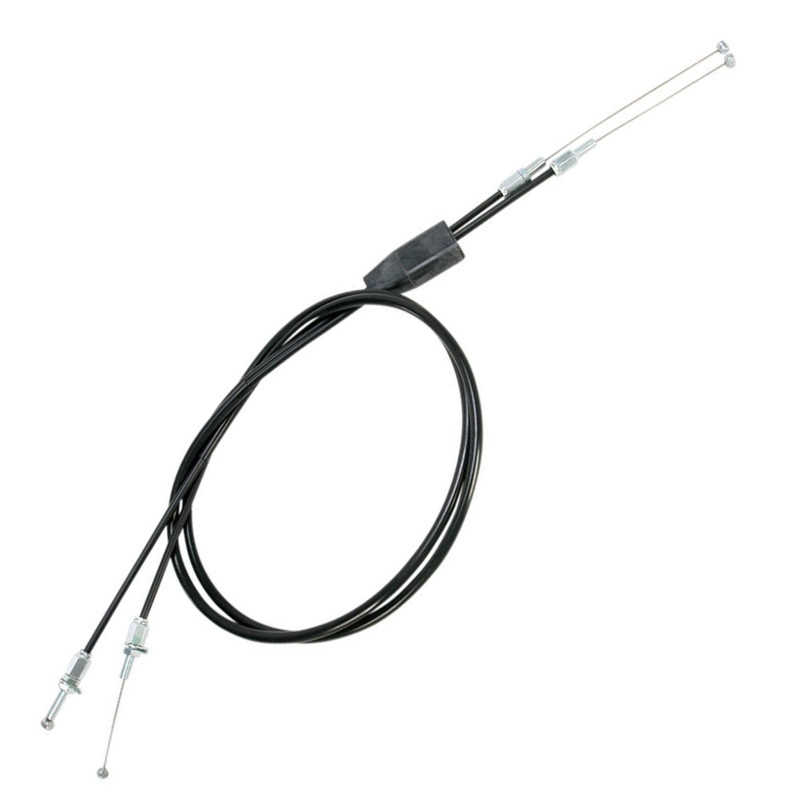

MOTION PRO Throttle Cable (push-pull set) for YAMAHA YZF 450 2014-2017

The MOTION PRO (tirage + retour) 05-0415 throttle cable is designed for YAMAHA YZF 450 from 2014 to 2017. The throttle cable links the twistgrip to the butterfly in the carburettor or throttle body. A cable that rubs or frays makes the throttle heavy and can make it stick open: it's a safety part.

Specifications

• Brand: MOTION PRO
• Manufacturer part number: 05-0415
• Black vinyl-covered housing, like the original
• Set of two cables: pull and return
• Engine: 4-stroke

When to replace it?

• Heavy twistgrip or slow throttle return.
• Frayed strands, cut or crushed outer sheath.
• Free play that can't be adjusted correctly.

Replace the cable at the first broken strand, or if the twistgrip no longer snaps back cleanly to the closed position.

Fitting tips

1. Note the routing of the old cable before removing it.
2. Route the new cable exactly the same way, with no kinks or rubbing points.
3. Lubricate the ends with a suitable grease.
4. Set the free play as per the manual, then turn the bars to full lock on both sides to check that the revs don't rise.

Why MOTION PRO?

For its T3 Slidelight cables, Motion Pro measured in-house that a conventional cable housing can wear through to metal-on-metal contact in fewer than 1,200 cycles, whereas its own inner liner lasts 30,000 cycles with minimal wear. With anodised billet aluminium end fittings and a built-in lubricator, the control stays light and smooth over time.

Spare parts and items to plan

• Grips : RFX · WORKS CONNECTION
• Grease : MOTUL 400 g

Frequently asked questions

Why two cables?
Many bikes have a pull cable and a return cable: the second one closes the throttle even if the throttle spring weakens. Replace them together.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
YAMAHA YZF 450 2017
YAMAHA YZF 450 2016
YAMAHA YZF 450 2015
YAMAHA YZF 450 2014
