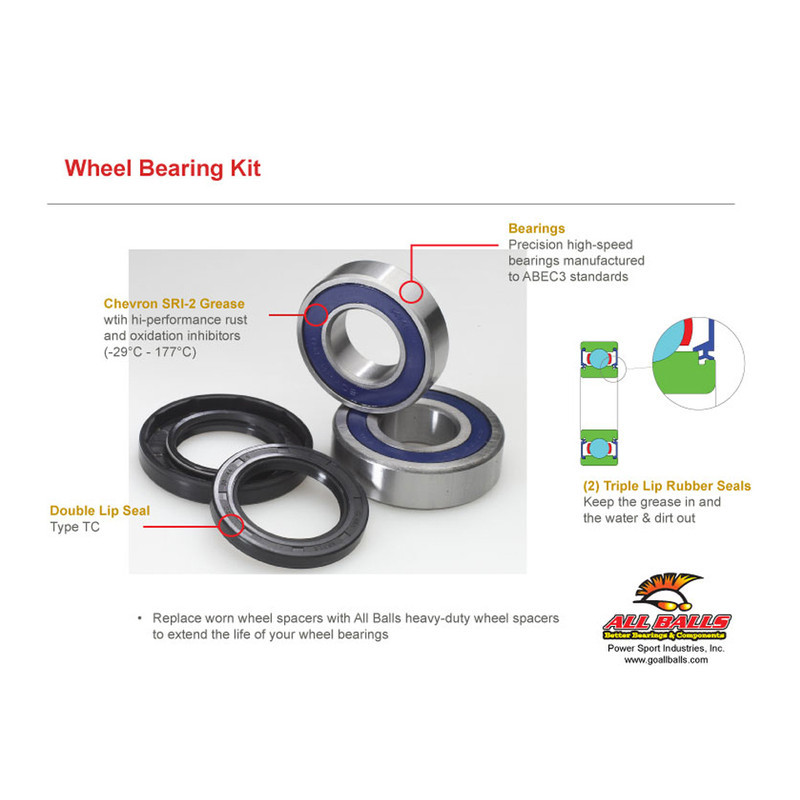

ALL BALLS Wheel Bearing Kit for KAWASAKI KVF 360 PRAIRIE 4WD, KVF 750 BRUTE FORCE I EPS 4WD and SUZUKI LT-V 700 F 4X4 TWIN PEAKS

ALL BALLS offers this wheel bearing for KAWASAKI KVF 360 PRAIRIE 2WD, KVF 360 PRAIRIE 4WD, KVF 750 BRUTE FORCE I 4WD, KVF 750 BRUTE FORCE I EPS 4WD, KVF 750 BRUTE FORCE I EPS CAMO 4WD and SUZUKI LT-V 700 F 4X4 TWIN PEAKS 1999-2025. Each wheel spins on two bearings in the hub, separated by a spacer. Water and mud eventually damage them: play, rough spots, noise.

What is this bearing made of?

Races and balls in hardened chrome steel, 100Cr6 type, very hard and fatigue-resistant, protected by rubber seals.

• Double seal (2RS): a seal on each side, very well sealed against water and mud, essential off-road.
• Limit: slightly more drag than a metal-shielded bearing (ZZ), which spins more freely but seals far less well.
• Fitting: press or drift it in on the outer race, never hammer on the seal; keep the pressure washer away from the hubs.

Why choose ALL BALLS?

Complete All Balls kits: low-friction bearings and steel-spring nitrile seals, everything you need in one box.

When should you replace the bearings?

Check the wheels for play at every wash with the wheel off the ground: a failing bearing can lock the wheel. Pressure washing forces water in and speeds up wear.

Specifications and fitting tips

• Packing: by unit
• Wheel bearing kit
• For long term replacement
• Manufacturer part number: 25-1497

Cross-Mania tip: Always replace the bearings of a wheel together and check the spacer.

Also needed with this part

• Grease : MOTUL 400 g 108664 · MOTUL 400 g 108672

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KVF 300 PRAIRIE 2WD 2002
KAWASAKI KVF 300 PRAIRIE 2WD 2001
KAWASAKI KVF 300 PRAIRIE 2WD 2000
KAWASAKI KVF 300 PRAIRIE 2WD 1999
KAWASAKI KVF 360 PRAIRIE 2WD 2009
KAWASAKI KVF 360 PRAIRIE 2WD 2008
KAWASAKI KVF 360 PRAIRIE 2WD 2007
KAWASAKI KVF 360 PRAIRIE 2WD 2006
KAWASAKI KVF 360 PRAIRIE 2WD 2005
KAWASAKI KVF 360 PRAIRIE 2WD 2004
KAWASAKI KVF 360 PRAIRIE 2WD 2003
KAWASAKI KVF 360 PRAIRIE 4WD 2013
KAWASAKI KVF 360 PRAIRIE 4WD 2012
KAWASAKI KVF 360 PRAIRIE 4WD 2011
KAWASAKI KVF 360 PRAIRIE 4WD 2010
KAWASAKI KVF 360 PRAIRIE 4WD 2009
KAWASAKI KVF 360 PRAIRIE 4WD 2008
KAWASAKI KVF 360 PRAIRIE 4WD 2007
KAWASAKI KVF 360 PRAIRIE 4WD 2006
KAWASAKI KVF 360 PRAIRIE 4WD 2005
KAWASAKI KVF 360 PRAIRIE 4WD 2004
KAWASAKI KVF 360 PRAIRIE 4WD 2003
KAWASAKI KVF 650 BRUTE FORCE 4WD 2011
KAWASAKI KVF 650 BRUTE FORCE 4WD 2010
KAWASAKI KVF 650 BRUTE FORCE 4WD 2009
KAWASAKI KVF 650 BRUTE FORCE 4WD 2008
KAWASAKI KVF 650 BRUTE FORCE 4WD 2007
KAWASAKI KVF 650 BRUTE FORCE 4WD 2006
KAWASAKI KVF 650 BRUTE FORCE 4WD 2005
KAWASAKI KVF 650 BRUTE FORCE I 4WD 2014
KAWASAKI KVF 650 BRUTE FORCE I 4WD 2013
KAWASAKI KVF 650 BRUTE FORCE I 4WD 2012
KAWASAKI KVF 650 PRAIRIE 4WD 2003
KAWASAKI KVF 650 PRAIRIE 4WD 2002
KAWASAKI KVF 700 PRAIRIE 4WD 2006
KAWASAKI KVF 700 PRAIRIE 4WD 2005
KAWASAKI KVF 700 PRAIRIE 4WD 2004
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2012
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2011
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2010
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2009
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2008
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2007
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2006
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2005
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2025
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2024
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2023
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2022
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2021
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2020
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2019
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2018
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2017
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2016
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2015
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2014
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2013
KAWASAKI KVF 750 BRUTE FORCE I EPS 4WD 2012
KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD 2021
KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD 2020
KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD 2019
KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD 2018
KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD 2017
KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD 2016
KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD 2015
KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD 2014
KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD 2013
KAWASAKI KVF 750 BRUTE FORCE I EPS CAMO 4WD 2012
SUZUKI LT-V 700 F 4X4 TWIN PEAKS 2005
SUZUKI LT-V 700 F 4X4 TWIN PEAKS 2004
