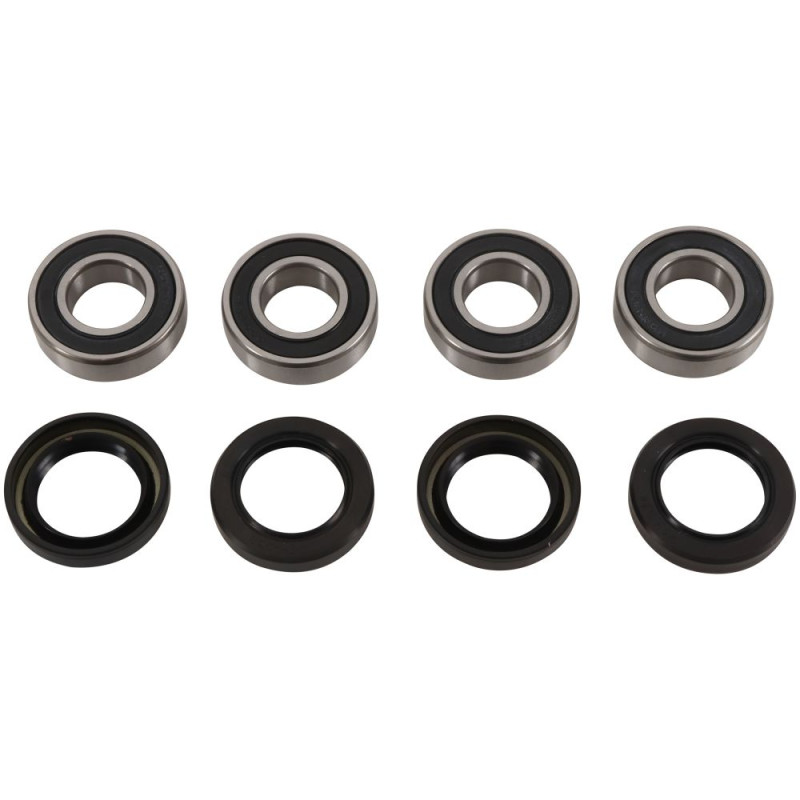

PIVOT WORKS Front Wheel Bearing Kit for HONDA TRX 90 1993-2014

On HONDA TRX 90 from 1993 to 2014, the PIVOT WORKS PWFWKH23000 front wheel bearing kit fits in place of the original part. A wheel with play, or one that turns roughly, damages the brakes, the drive and the handling. This kit groups the bearings and seals needed to rebuild the front wheel, with the spacers when the model needs them.

Specifications

• Brand: PIVOT WORKS
• Manufacturer part number: PWFWKH23000

When to replace it?

• Side play when you rock the wheel top and bottom.
• Wheel turning roughly or unevenly, bearing noise.
• Damaged seals, rust or water in the hub.

Check the wheels for play every time you wash the bike. As a Cross-Mania guideline: replace every 40 to 60 hours of racing or muddy riding, about once a year for leisure riding, and straight away as soon as play appears.

Fitting tips

1. Remove the old bearings with a puller or a bearing drift, without damaging the hub bore.
2. Clean the hub, put the new bearings in the freezer and press them in on the outer race only.
3. Refit the central spacer between the bearings: without it, the bearings get crushed when the axle is tightened.
4. Fit the seals squarely, lips packed with grease.
5. Grease the wheel axle and tighten it to the manufacturer's torque, then check that the wheel turns freely.

Why PIVOT WORKS?

Pivot Works specialises in chassis rebuild kits for off-road bikes and quads: bearings, seals, bushings and spacers grouped by model. The brand claims original-equipment quality, durability and fit, and since 2012 has offered a lifetime replacement of its kits in case of failure (once per kit).

Spare parts and items to plan

• Grease : MOTUL 400 g

Frequently asked questions

What does the kit contain?
The bearings and oil seals of the front wheel, plus the spacers or collars when the model needs them. Compare with the photo and your original parts if in doubt.

Should both bearings be changed?
Yes: they wear together. Changing only one bearing brings the play back very quickly.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA TRX 90 2014
HONDA TRX 90 2013
HONDA TRX 90 2012
HONDA TRX 90 2011
HONDA TRX 90 2010
HONDA TRX 90 2009
HONDA TRX 90 2008
HONDA TRX 90 2007
HONDA TRX 90 2006
HONDA TRX 90 2005
HONDA TRX 90 2004
HONDA TRX 90 2003
HONDA TRX 90 2002
HONDA TRX 90 2001
HONDA TRX 90 2000
HONDA TRX 90 1999
HONDA TRX 90 1998
HONDA TRX 90 1997
HONDA TRX 90 1996
HONDA TRX 90 1995
HONDA TRX 90 1994
HONDA TRX 90 1993
