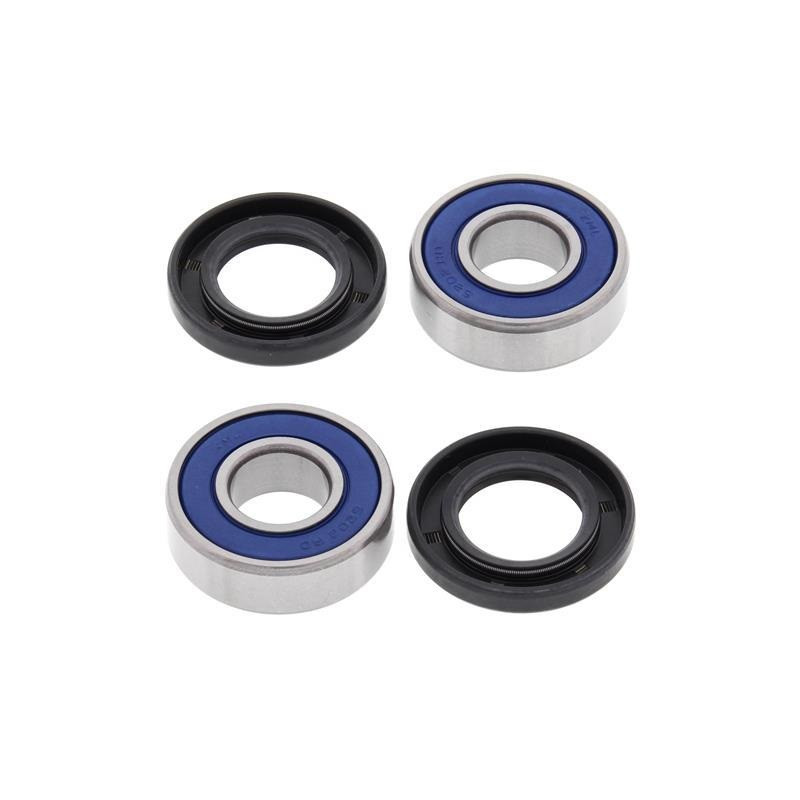

PROX Front Wheel Bearing Kit for YAMAHA and KAWASAKI 1983-2027

The PROX avant 23.S114044 wheel bearing kit is designed for YAMAHA TT 225, TT 230, TT 350, TT 600, WR 250, WR 500, XT 225, XT 250, XT 600, YZ 125, YZ 250, YZ 490 and KAWASAKI KDX 200, KDX 250, KLX 250, KLX 300, KLX 650 from 1983 to 2027. Wheel bearings carry the whole weight of the bike and take every landing, in mud, water and sand. When they develop play or feel notchy, the wheel wobbles, the disc rubs on the pads and the bike holds its line less well.

Specifications

• Brand: PROX
• Manufacturer part number: 23.S114044
• Weight: 120 g

When to replace it?

• Wheel play: with the bike on a stand, grab the wheel at the top and bottom and rock it.
• With the axle out, bearings that turn with tight spots or a grinding noise.
• Brake disc rubbing on and off against the pads.
• Hub seals hardened or torn, rust around the axle.

Check the wheels for play after every pressure wash or ride through water, and replace the bearings at the slightest play or tight spot. Always change all the bearings in a wheel at the same time, together with their seals: a new bearing fitted next to a worn one won't last.

Fitting tips

1. Remove the wheel, then the side spacers and the hub seals.
2. Drive the bearings out with an expanding bearing puller, or from inside the hub by pushing the centre spacer aside and tapping alternately on each side of the inner race.
3. Clean the hub, warm it slightly (around 80 °C, with a heat gun) and fit the new bearings, pressing only on the outer race.
4. Put the centre spacer back between the bearings, then fit new seals packed with waterproof grease.
5. Refit the wheel, torque the axle to the figure in the manual and check that the wheel spins freely, with no play.

Why PROX?

ProX Racing Parts has been supplying off-road riders since 1975 from its headquarters near Amsterdam. Beyond the engine and clutch, its catalogue covers chassis wear parts: wheel bearings, seals and spacers.

Spare parts and items to plan

• Grease : MOTUL 400 g
• Wheel seals : ATHENA · SKF
• Wheel spacers : RFX 22010 · RFX 22012

Frequently asked questions

Should I change the bearings on both sides?
Yes: replace all the bearings in the wheel together, they have the same amount of wear. It's also the moment to fit new wheel seals.

What is the centre spacer for?
It keeps the bearings the right distance apart when you tighten the axle. If it's left out or badly positioned, the bearings get crushed sideways and only last a few hours.

Why do my bearings wear out so fast?
A pressure-washer jet aimed at the hub, worn seals or scored spacers let water in. Change the seals along with the bearings and avoid aiming at the hubs when you wash the bike.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KDX 200 2006
KAWASAKI KDX 200 2005
KAWASAKI KDX 200 2004
KAWASAKI KDX 200 2003
KAWASAKI KDX 200 2002
KAWASAKI KDX 200 2001
KAWASAKI KDX 200 2000
KAWASAKI KDX 200 1999
KAWASAKI KDX 200 1998
KAWASAKI KDX 200 1997
KAWASAKI KDX 200 1996
KAWASAKI KDX 200 1995
KAWASAKI KDX 200 1994
KAWASAKI KDX 200 1993
KAWASAKI KDX 200 1992
KAWASAKI KDX 200 1991
KAWASAKI KDX 200 1990
KAWASAKI KDX 200 1989
KAWASAKI KDX 200 1988
KAWASAKI KDX 200 1987
KAWASAKI KDX 200 1986
KAWASAKI KDX 250 1994
KAWASAKI KDX 250 1993
KAWASAKI KDX 250 1992
KAWASAKI KDX 250 1991
KAWASAKI KLX 250 1996
KAWASAKI KLX 250 1995
KAWASAKI KLX 250 1994
KAWASAKI KLX 300 2007
KAWASAKI KLX 300 2006
KAWASAKI KLX 300 2005
KAWASAKI KLX 300 2004
KAWASAKI KLX 300 2003
KAWASAKI KLX 300 2002
KAWASAKI KLX 300 2001
KAWASAKI KLX 300 2000
KAWASAKI KLX 300 1999
KAWASAKI KLX 300 1998
KAWASAKI KLX 300 1997
KAWASAKI KLX 650 1996
KAWASAKI KLX 650 1995
KAWASAKI KLX 650 1994
KAWASAKI KLX 650 1993
YAMAHA TT 225 2004
YAMAHA TT 225 2003
YAMAHA TT 225 2002
YAMAHA TT 225 2001
YAMAHA TT 225 2000
YAMAHA TT 225 1999
YAMAHA TT 225 1998
YAMAHA TT 225 1997
YAMAHA TT 225 1996
YAMAHA TT 225 1995
YAMAHA TT 225 1994
YAMAHA TT 225 1993
YAMAHA TT 225 1992
YAMAHA TT 225 1991
YAMAHA TT 225 1990
YAMAHA TT 225 1989
YAMAHA TT 225 1988
YAMAHA TT 225 1987
YAMAHA TT 225 1986
YAMAHA TT 230 2027
YAMAHA TT 230 2026
YAMAHA TT 230 2025
YAMAHA TT 230 2024
YAMAHA TT 230 2023
YAMAHA TT 230 2022
YAMAHA TT 230 2021
YAMAHA TT 230 2020
YAMAHA TT 230 2019
YAMAHA TT 230 2018
YAMAHA TT 230 2017
YAMAHA TT 230 2016
YAMAHA TT 230 2015
YAMAHA TT 230 2014
YAMAHA TT 230 2013
YAMAHA TT 230 2012
YAMAHA TT 230 2011
YAMAHA TT 230 2010
YAMAHA TT 230 2009
YAMAHA TT 230 2008
YAMAHA TT 230 2007
YAMAHA TT 230 2006
YAMAHA TT 230 2005
YAMAHA TT 350 1987
YAMAHA TT 350 1986
YAMAHA TT 600 1986
YAMAHA TT 600 1985
YAMAHA WR 250 1991
YAMAHA WR 500 1993
YAMAHA WR 500 1992
YAMAHA XT 225 2007
YAMAHA XT 225 2006
YAMAHA XT 225 2005
YAMAHA XT 225 2004
YAMAHA XT 225 2003
YAMAHA XT 225 2002
YAMAHA XT 225 2001
YAMAHA XT 225 2000
YAMAHA XT 225 1999
YAMAHA XT 225 1998
YAMAHA XT 225 1997
YAMAHA XT 225 1996
YAMAHA XT 225 1995
YAMAHA XT 225 1994
YAMAHA XT 225 1993
YAMAHA XT 225 1992
YAMAHA XT 250 2027
YAMAHA XT 250 2026
YAMAHA XT 250 2025
YAMAHA XT 250 2024
YAMAHA XT 250 2023
YAMAHA XT 250 2022
YAMAHA XT 250 2021
YAMAHA XT 250 2020
YAMAHA XT 250 2019
YAMAHA XT 250 2018
YAMAHA XT 250 2017
YAMAHA XT 250 2016
YAMAHA XT 250 2015
YAMAHA XT 250 2014
YAMAHA XT 250 2013
YAMAHA XT 250 2012
YAMAHA XT 250 2011
YAMAHA XT 250 2010
YAMAHA XT 250 2009
YAMAHA XT 250 2008
YAMAHA XT 600 1995
YAMAHA XT 600 1994
YAMAHA XT 600 1993
YAMAHA XT 600 1992
YAMAHA XT 600 1991
YAMAHA XT 600 1990
YAMAHA XT 600 1989
YAMAHA XT 600 1988
YAMAHA XT 600 1987
YAMAHA XT 600 1986
YAMAHA XT 600 1985
YAMAHA XT 600 1984
YAMAHA YZ 125 1992
YAMAHA YZ 125 1991
YAMAHA YZ 125 1990
YAMAHA YZ 125 1989
YAMAHA YZ 125 1988
YAMAHA YZ 125 1987
YAMAHA YZ 125 1986
YAMAHA YZ 125 1985
YAMAHA YZ 125 1984
YAMAHA YZ 125 1983
YAMAHA YZ 250 1991
YAMAHA YZ 250 1990
YAMAHA YZ 250 1989
YAMAHA YZ 250 1988
YAMAHA YZ 250 1987
YAMAHA YZ 250 1986
YAMAHA YZ 250 1985
YAMAHA YZ 250 1984
YAMAHA YZ 250 1983
YAMAHA YZ 490 1990
YAMAHA YZ 490 1989
YAMAHA YZ 490 1988
YAMAHA YZ 490 1987
YAMAHA YZ 490 1986
YAMAHA YZ 490 1985
YAMAHA YZ 490 1984
