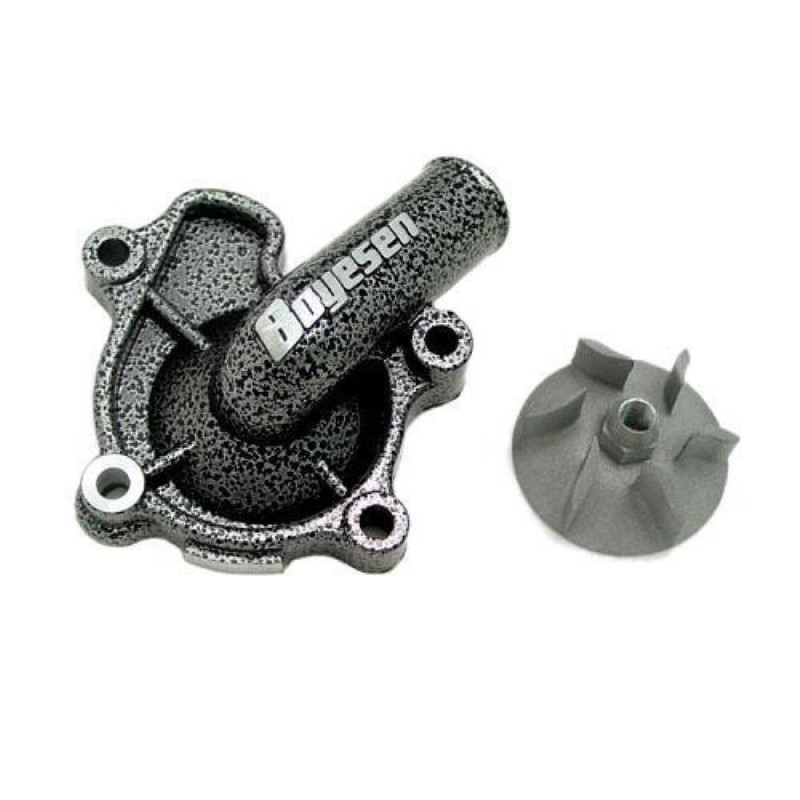

BOYESEN Supercooler Water Pump Kit for KAWASAKI KX 250 1994-2004

The BOYESEN Supercooler BOYWPK-12M water pump kit is designed for KAWASAKI KX 250 from 1994 to 2004. The water pump circulates the coolant between the engine and the radiators. A performance water pump kit replaces stock parts to increase coolant flow: the engine gets rid of its heat better when it's working hard.

Key features

• Cast aluminium pump cover and patented “Nautilus”-type impeller, claimed to be 25% more efficient than the stock impeller.
• More coolant flow at all revs, enlarged inlets with no 90° bend, less cavitation.
• Gaskets not included.

Specifications

• Brand: BOYESEN
• Manufacturer part number: BOYWPK-12M
• EAN code: 804429505937
• Weight: 260 g
• Engine: 2-stroke

When do you need it?

• Engine running hot or boiling the coolant in mud, sand or slow enduro.
• Tuned engine, more powerful than stock.
• Water pump overhaul, with tired stock parts.

The kit is specific to each engine: check the bike and years. The exact contents are given in the specifications; have new gaskets ready if they aren't included.

Fitting tips

1. With the engine cold, drain the coolant.
2. Remove the pump cover and, if the kit includes an impeller, the stock impeller, following the manual.
3. Check the pump shaft and its seals: at the slightest play or weeping, fit a water pump rebuild kit.
4. Fit the kit parts with new gaskets and tighten the cover bolts in a crisscross pattern, to the torque in the manual.
5. Refill with coolant, bleed the air and check for leaks.

Why BOYESEN?

Boyesen is an American brand specialising in the intake and the engine covers of two-stroke engines: reed petals, RAD Valve reed blocks, engine covers and Supercooler water pumps.

Spare parts and items to plan

• Coolant : LIQUI MOLY 1 L · TWIN AIR
• Water pump rebuild kit : HOT RODS · MOOSE

Frequently asked questions

Does the kit lower the temperature?
It increases coolant circulation; the gain depends on the bike, the terrain and the condition of the radiators. Clean radiators and fresh coolant are still essential.

Are the gaskets included?
It depends on the kit: check the specifications and, if needed, add a water pump rebuild kit.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 250 2004
KAWASAKI KX 250 2003
KAWASAKI KX 250 2002
KAWASAKI KX 250 2001
KAWASAKI KX 250 2000
KAWASAKI KX 250 1999
KAWASAKI KX 250 1998
KAWASAKI KX 250 1997
KAWASAKI KX 250 1996
KAWASAKI KX 250 1995
KAWASAKI KX 250 1994
