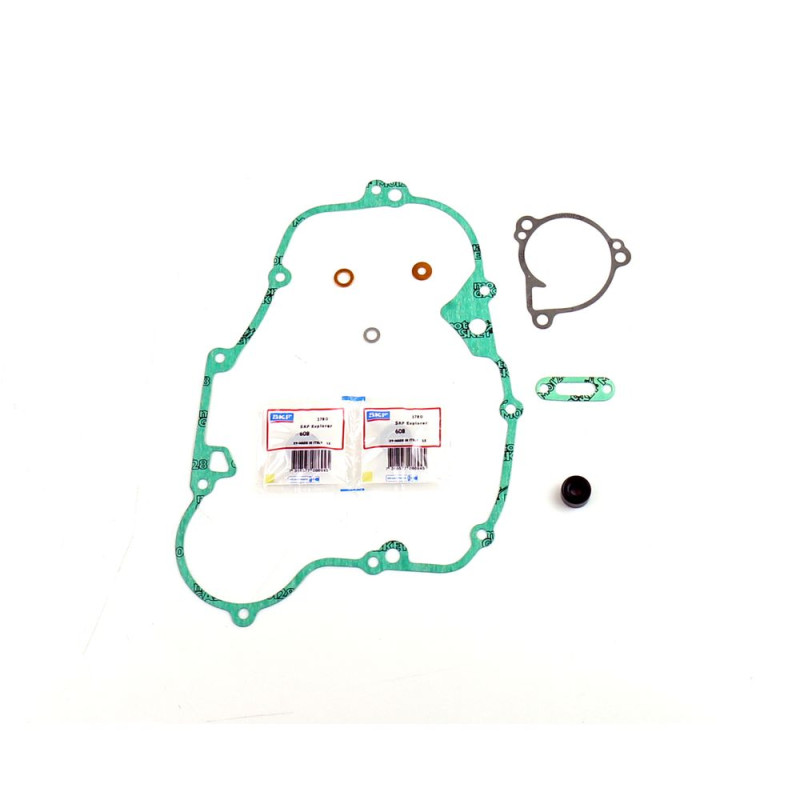

ATHENA Water Pump Rebuild Kit for KAWASAKI KX 500 1992-2003

The ATHENA P400250475013 water pump rebuild kit is designed for KAWASAKI KX 500 from 1992 to 2003. The water pump circulates the coolant. When its oil seal or bearing wears, coolant gets into the oil or leaks out of the weep hole: the engine overheats and the oil breaks down.

Specifications

• Brand: ATHENA
• Manufacturer part number: P400250475013
• EAN code: 8052780271219
• Weight: 120 g
• Engine: 2-stroke

When to replace it?

• Drip of coolant or oil at the weep hole under the pump.
• Milky engine oil (mixed with coolant).
• Coolant level dropping with no visible leak, engine running hot.

During an engine rebuild, and as soon as a leak appears at the weep hole.

Fitting tips

1. Drain the cooling system, and the oil if necessary.
2. Drive out the bearing and oil seals without damaging the housing, then fit the new parts perfectly square.
3. Lightly grease the oil seal lips before sliding the shaft through.
4. Fill with fresh coolant, bleed the system and refill with oil if you drained it.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Coolant : LIQUI MOLY 1 L · TWIN AIR
• Gearbox oil : LIQUI MOLY 10W30 1 L · LIQUI MOLY 500 ml
• Clutch cover gasket : CENTAURO · ATHENA

Frequently asked questions

What does the kit contain?
Depending on the model: gaskets, O-rings, oil seals and pump bearing(s). If in doubt, compare with your original parts.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 500 2003
KAWASAKI KX 500 2002
KAWASAKI KX 500 2001
KAWASAKI KX 500 2000
KAWASAKI KX 500 1999
KAWASAKI KX 500 1998
KAWASAKI KX 500 1997
KAWASAKI KX 500 1996
KAWASAKI KX 500 1995
KAWASAKI KX 500 1994
KAWASAKI KX 500 1993
KAWASAKI KX 500 1992
