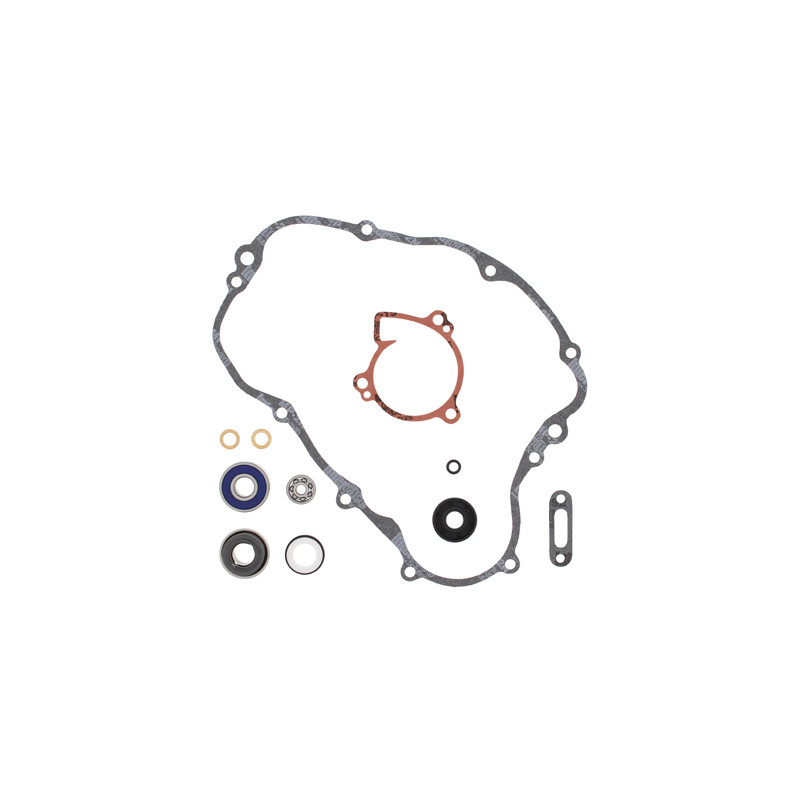

PROX Water Pump Rebuild Kit for KAWASAKI KDX 200 1995-2006

The PROX 57.4315 water pump rebuild kit is designed for KAWASAKI KDX 200 from 1995 to 2006. The water pump circulates the coolant. When its oil seal or bearing wears, coolant gets into the oil or leaks out of the weep hole: the engine overheats and the oil breaks down.

Key features

• All the gaskets, O-rings, bearings and oil seals you need (ProX).
• The shaft and impeller are not included.

Specifications

• Brand: PROX
• Manufacturer part number: 57.4315
• Weight: 100 g
• Engine: 2-stroke

When to replace it?

• Drip of coolant or oil at the weep hole under the pump.
• Milky engine oil (mixed with coolant).
• Coolant level dropping with no visible leak, engine running hot.

During an engine rebuild, and as soon as a leak appears at the weep hole.

Fitting tips

1. Drain the cooling system, and the oil if necessary.
2. Drive out the bearing and oil seals without damaging the housing, then fit the new parts perfectly square.
3. Lightly grease the oil seal lips before sliding the shaft through.
4. Fill with fresh coolant, bleed the system and refill with oil if you drained it.

Why PROX?

Founded in 1975 and based near Amsterdam, ProX specialises in engine and clutch wear parts for off-road bikes. The brand has most of its range made in Japan, by OEM suppliers, for quality on a par with the original parts.

Spare parts and items to plan

• Coolant : LIQUI MOLY 1 L · TWIN AIR
• Gearbox oil : LIQUI MOLY 10W30 1 L · LIQUI MOLY 80W 500 ml
• Clutch cover gasket : ATHENA · ATHENA 125 g

Frequently asked questions

Are the shaft and impeller included?
No: the ProX kit contains the gaskets, O-rings, bearings and oil seals. Check the shaft: if it is scored where the lips run, replace it.

What does the kit contain?
Depending on the model: gaskets, O-rings, oil seals and pump bearing(s). If in doubt, compare with your original parts.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KDX 200 2006
KAWASAKI KDX 200 2005
KAWASAKI KDX 200 2004
KAWASAKI KDX 200 2003
KAWASAKI KDX 200 2002
KAWASAKI KDX 200 2001
KAWASAKI KDX 200 2000
KAWASAKI KDX 200 1999
KAWASAKI KDX 200 1998
KAWASAKI KDX 200 1997
KAWASAKI KDX 200 1996
KAWASAKI KDX 200 1995
