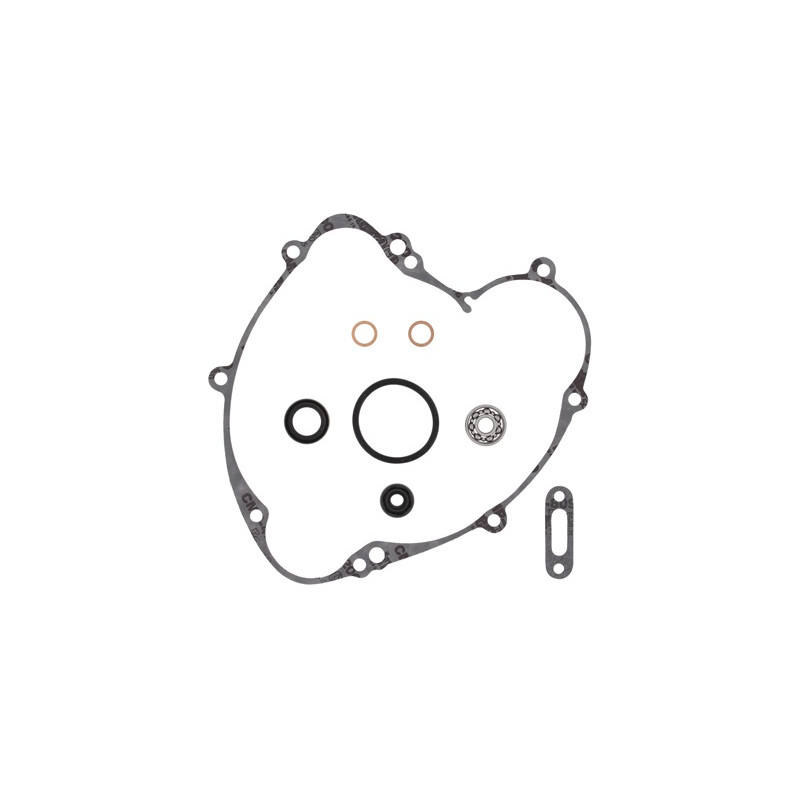

PROX Water Pump Rebuild Kit for KAWASAKI KX 60 and SUZUKI RM 60 1985-2004

On KAWASAKI KX 60 and SUZUKI RM 60 from 1985 to 2004, the PROX 57.3023 water pump rebuild kit fits in place of the original part. A tired water pump bearing or oil seal lets coolant through. This kit replaces the pump's sealing and bearing parts.

Key features

• All the gaskets, O-rings, bearings and oil seals you need (ProX).
• The shaft and impeller are not included.

Specifications

• Brand: PROX
• Manufacturer part number: 57.3023
• Weight: 60 g
• Engine: 2-stroke

When to replace it?

• Drip of coolant or oil at the weep hole under the pump.
• Milky engine oil (mixed with coolant).
• Coolant level dropping with no visible leak, engine running hot.

During an engine rebuild, and as soon as a leak appears at the weep hole.

Fitting tips

1. Drain the cooling system, and the oil if necessary.
2. Drive out the bearing and oil seals without damaging the housing, then fit the new parts perfectly square.
3. Lightly grease the oil seal lips before sliding the shaft through.
4. Fill with fresh coolant, bleed the system and refill with oil if you drained it.

Why PROX?

ProX Racing Parts has been supplying engine and clutch parts to motocross riders since 1975, from its headquarters near Amsterdam. According to its catalogue, most of its parts are made in Japan, by manufacturers that also produce parts for the Japanese motorcycle makers.

Spare parts and items to plan

• Coolant : LIQUI MOLY 1 L · TWIN AIR
• Gearbox oil : LIQUI MOLY 10W30 1 L · LIQUI MOLY 500 ml
• Clutch cover gasket : CENTAURO · PROX

Frequently asked questions

Are the shaft and impeller included?
No: the ProX kit contains the gaskets, O-rings, bearings and oil seals. Check the shaft: if it is scored where the lips run, replace it.

What does the kit contain?
Depending on the model: gaskets, O-rings, oil seals and pump bearing(s). If in doubt, compare with your original parts.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 60 2004
KAWASAKI KX 60 2003
KAWASAKI KX 60 2002
KAWASAKI KX 60 2001
KAWASAKI KX 60 2000
KAWASAKI KX 60 1999
KAWASAKI KX 60 1998
KAWASAKI KX 60 1997
KAWASAKI KX 60 1996
KAWASAKI KX 60 1995
KAWASAKI KX 60 1994
KAWASAKI KX 60 1993
KAWASAKI KX 60 1992
KAWASAKI KX 60 1991
KAWASAKI KX 60 1990
KAWASAKI KX 60 1989
KAWASAKI KX 60 1988
KAWASAKI KX 60 1987
KAWASAKI KX 60 1986
KAWASAKI KX 60 1985
SUZUKI RM 60 2003
