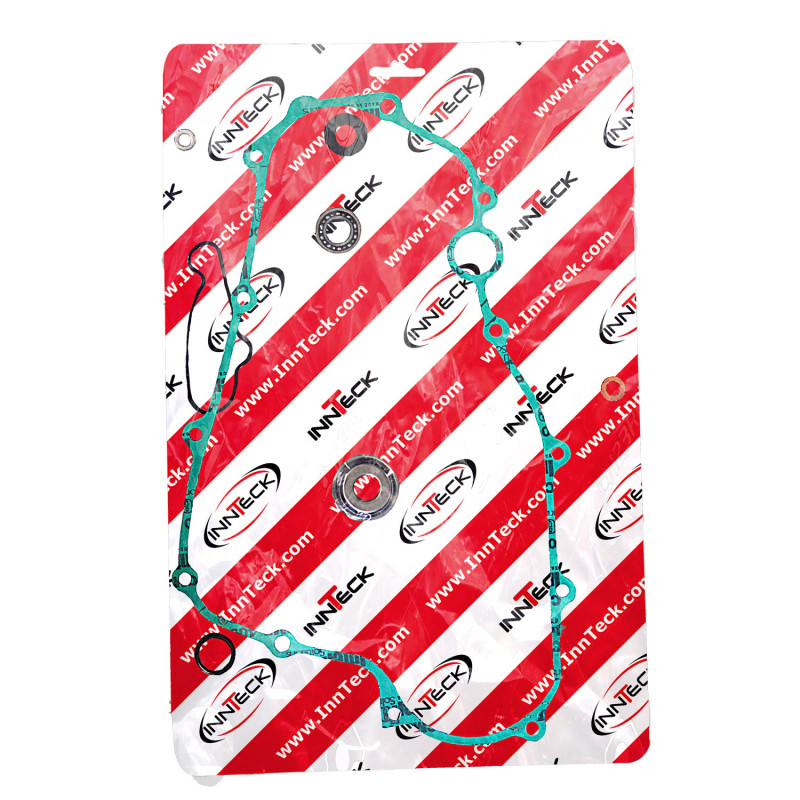

INNTECK Water Pump Rebuild Kit for KAWASAKI KX 60 and SUZUKI RM 60 1985-2003

The INNTECK WY-821407 water pump rebuild kit is designed for KAWASAKI KX 60 and SUZUKI RM 60 from 1985 to 2003. The water pump circulates the coolant. When its oil seal or bearing wears, coolant gets into the oil or leaks out of the weep hole: the engine overheats and the oil breaks down.

Specifications

• Brand: INNTECK
• Manufacturer part number: WY-821407
• Engine: 2-stroke

When to replace it?

• Drip of coolant or oil at the weep hole under the pump.
• Milky engine oil (mixed with coolant).
• Coolant level dropping with no visible leak, engine running hot.

During an engine rebuild, and as soon as a leak appears at the weep hole.

Fitting tips

1. Drain the cooling system, and the oil if necessary.
2. Drive out the bearing and oil seals without damaging the housing, then fit the new parts perfectly square.
3. Lightly grease the oil seal lips before sliding the shaft through.
4. Fill with fresh coolant, bleed the system and refill with oil if you drained it.

Spare parts and items to plan

• Coolant : LIQUI MOLY 1 L · TWIN AIR
• Gearbox oil : LIQUI MOLY 10W30 1 L · LIQUI MOLY 1 L
• Clutch cover gasket : CENTAURO · PROX

Frequently asked questions

What does the kit contain?
Depending on the model: gaskets, O-rings, oil seals and pump bearing(s). If in doubt, compare with your original parts.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 60 2003
KAWASAKI KX 60 2002
KAWASAKI KX 60 2001
KAWASAKI KX 60 2000
KAWASAKI KX 60 1999
KAWASAKI KX 60 1998
KAWASAKI KX 60 1997
KAWASAKI KX 60 1996
KAWASAKI KX 60 1995
KAWASAKI KX 60 1994
KAWASAKI KX 60 1993
KAWASAKI KX 60 1992
KAWASAKI KX 60 1991
KAWASAKI KX 60 1990
KAWASAKI KX 60 1989
KAWASAKI KX 60 1988
KAWASAKI KX 60 1987
KAWASAKI KX 60 1986
KAWASAKI KX 60 1985
SUZUKI RM 60 2003
