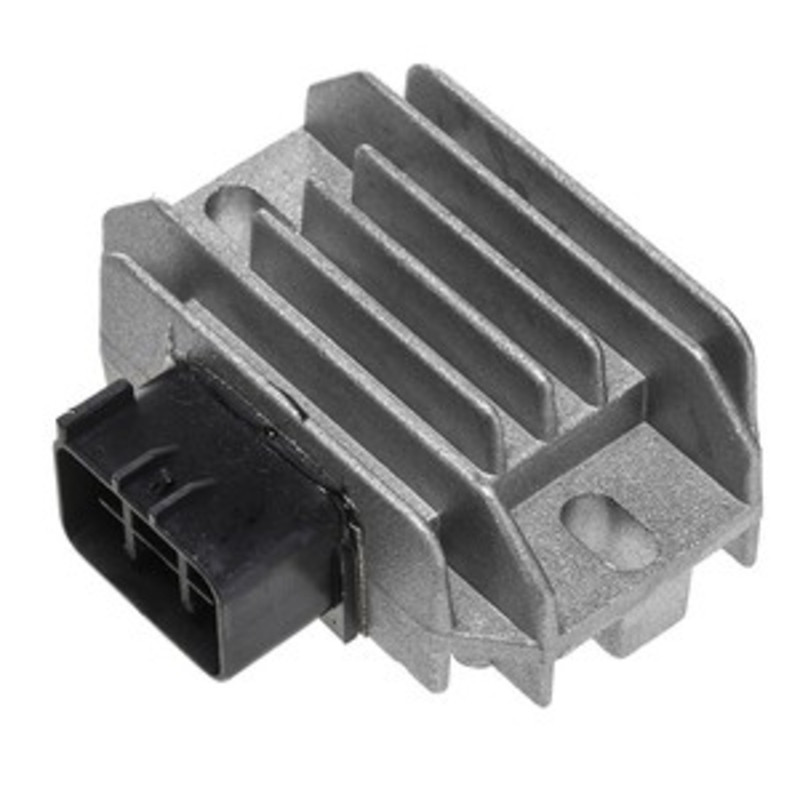

TECNIUM by DZE Regulator for SUZUKI LT-F 250 OZARK 2WD, LTZ 250, LTZ 400, KAWASAKI KFX 400, KFX 450 and ARCTIC CAT DVX 400

TECNIUM offers this regulator rectifier for SUZUKI LT-F 250 OZARK 2WD, LTZ 250, LTZ 400, KAWASAKI KFX 400, KFX 450 and ARCTIC CAT DVX 400 2002-2018. The regulator rectifier is the link between the alternator and the battery. With the engine running, the alternator (stator and flywheel) produces an alternating current whose voltage rises with the revs.

Why replace the regulator?

The benefits:

• The battery charges again as you ride and starting becomes reliable again.
• A stable voltage protects the bulbs, the ignition unit and the fuel-injection electronics.
• MOSFET versions run cooler: a longer-lasting regulator on machines with little airflow.

When should you replace this part?

A battery that goes flat despite regular riding, bulbs that keep blowing, lights that vary with revs or a connector browned by heat: check the regulator.

Specifications and fitting tips

• Voltage: 12V
• Number of phases: Three-phase
• Output: DC
• Technology: SCR
• OEM type regulator
• Reliable and best quality part
• Manufacturer part number: 2386

Cross-Mania tip: Clean the connectors and the earth point, mount the regulator somewhere with airflow and its fins clear, then measure the voltage at the battery terminals with the engine running to confirm it is charging.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
ARCTIC CAT DVX 400 2008
ARCTIC CAT DVX 400 2007
ARCTIC CAT DVX 400 2006
ARCTIC CAT DVX 400 2005
ARCTIC CAT DVX 400 2004
ARCTIC CAT DVX 400 2003
KAWASAKI KFX 400 2006
KAWASAKI KFX 400 2005
KAWASAKI KFX 400 2004
KAWASAKI KFX 400 2003
KAWASAKI KFX 450 2014
KAWASAKI KFX 450 2013
KAWASAKI KFX 450 2012
KAWASAKI KFX 450 2011
KAWASAKI KFX 450 2010
KAWASAKI KFX 450 2009
KAWASAKI KFX 450 2008
SUZUKI LT-F 250 OZARK 2WD 2018
SUZUKI LT-F 250 OZARK 2WD 2017
SUZUKI LT-F 250 OZARK 2WD 2016
SUZUKI LT-F 250 OZARK 2WD 2015
SUZUKI LT-F 250 OZARK 2WD 2014
SUZUKI LT-F 250 OZARK 2WD 2013
SUZUKI LT-F 250 OZARK 2WD 2012
SUZUKI LT-F 250 OZARK 2WD 2011
SUZUKI LT-F 250 OZARK 2WD 2010
SUZUKI LT-F 250 OZARK 2WD 2009
SUZUKI LT-F 250 OZARK 2WD 2008
SUZUKI LT-F 250 OZARK 2WD 2007
SUZUKI LT-F 250 OZARK 2WD 2006
SUZUKI LT-F 250 OZARK 2WD 2005
SUZUKI LT-F 250 OZARK 2WD 2004
SUZUKI LT-F 250 OZARK 2WD 2003
SUZUKI LT-F 250 OZARK 2WD 2002
SUZUKI LTZ 250 2010
SUZUKI LTZ 250 2009
SUZUKI LTZ 250 2008
SUZUKI LTZ 250 2007
SUZUKI LTZ 250 2006
SUZUKI LTZ 250 2005
SUZUKI LTZ 250 2004
SUZUKI LTZ 400 2018
SUZUKI LTZ 400 2017
SUZUKI LTZ 400 2016
SUZUKI LTZ 400 2015
SUZUKI LTZ 400 2014
SUZUKI LTZ 400 2013
SUZUKI LTZ 400 2012
SUZUKI LTZ 400 2011
SUZUKI LTZ 400 2010
SUZUKI LTZ 400 2009
SUZUKI LTZ 400 2008
SUZUKI LTZ 400 2007
SUZUKI LTZ 400 2006
SUZUKI LTZ 400 2005
SUZUKI LTZ 400 2004
SUZUKI LTZ 400 2003
