ATHENA Intake Gasket for FANTIC XE 125, XX 125 and YAMAHA YZ 125 2022-2026
€3.50
Tax Included

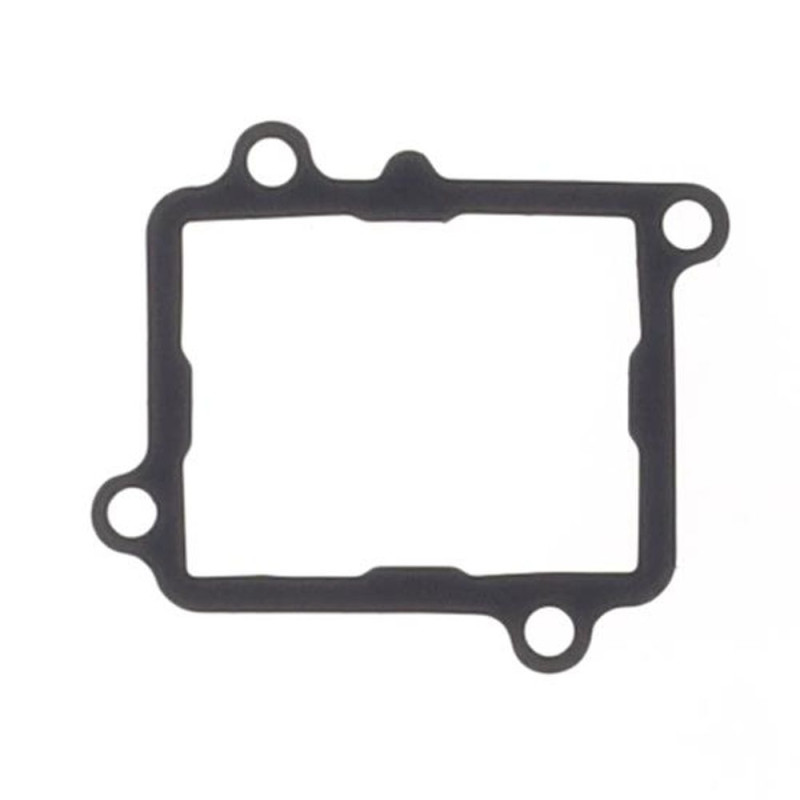

ATHENA intake gasket for FANTIC XE 125, XX 125 and YAMAHA YZ 125 from 2022 to 2026.
The ATHENA S410485010048 intake gasket is designed for FANTIC XE 125, XX 125 and YAMAHA YZ 125 from 2022 to 2026. The intake gasket seals between the intake manifold, the reed valve block or the throttle body and the engine. A leak here lets in unmetered air: the engine runs lean, the idle becomes unstable and the engine runs hot.
Specifications
- Brand: ATHENA
- Manufacturer part number: S410485010048
- EAN code: 8051757066469
- Weight: 30 g
- Engine: 2-stroke
When to replace it?
- Unstable idle or idle that creeps up on its own, hanging revs.
- Engine running hot or pinking: mixture too lean.
- Gasket crushed or split on removal.
Every time the intake manifold or reed valve block is removed, and as soon as an air leak is suspected.
Fitting tips
- Clean the gasket faces without scratching them.
- Fit the gasket dry and properly centred.
- Tighten the screws in a criss-cross pattern, gradually, to the manufacturer's torque.
- Take the opportunity to check the reed petals: a chipped or split tip must be replaced straight away.
Why ATHENA?
Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.
Spare parts and items to plan
- Reed petals : V FORCE · BOYESEN
- Carburettor repair kit : ALL BALLS 46-5019 · ALL BALLS 46-5036
- Spark plug : NGK
Frequently asked questions
How do I find an air leak?
With the engine idling, spray a little brake cleaner around the intake: if the revs change, air is getting in at that spot.
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
FANTIC XE 125 2026
FANTIC XE 125 2025
FANTIC XE 125 2024
FANTIC XE 125 2023
FANTIC XX 125 2026
FANTIC XX 125 2025
FANTIC XX 125 2024
FANTIC XX 125 2023
FANTIC XX 125 2022
YAMAHA YZ 125 2026
YAMAHA YZ 125 2025
YAMAHA YZ 125 2024
YAMAHA YZ 125 2023
YAMAHA YZ 125 2022
